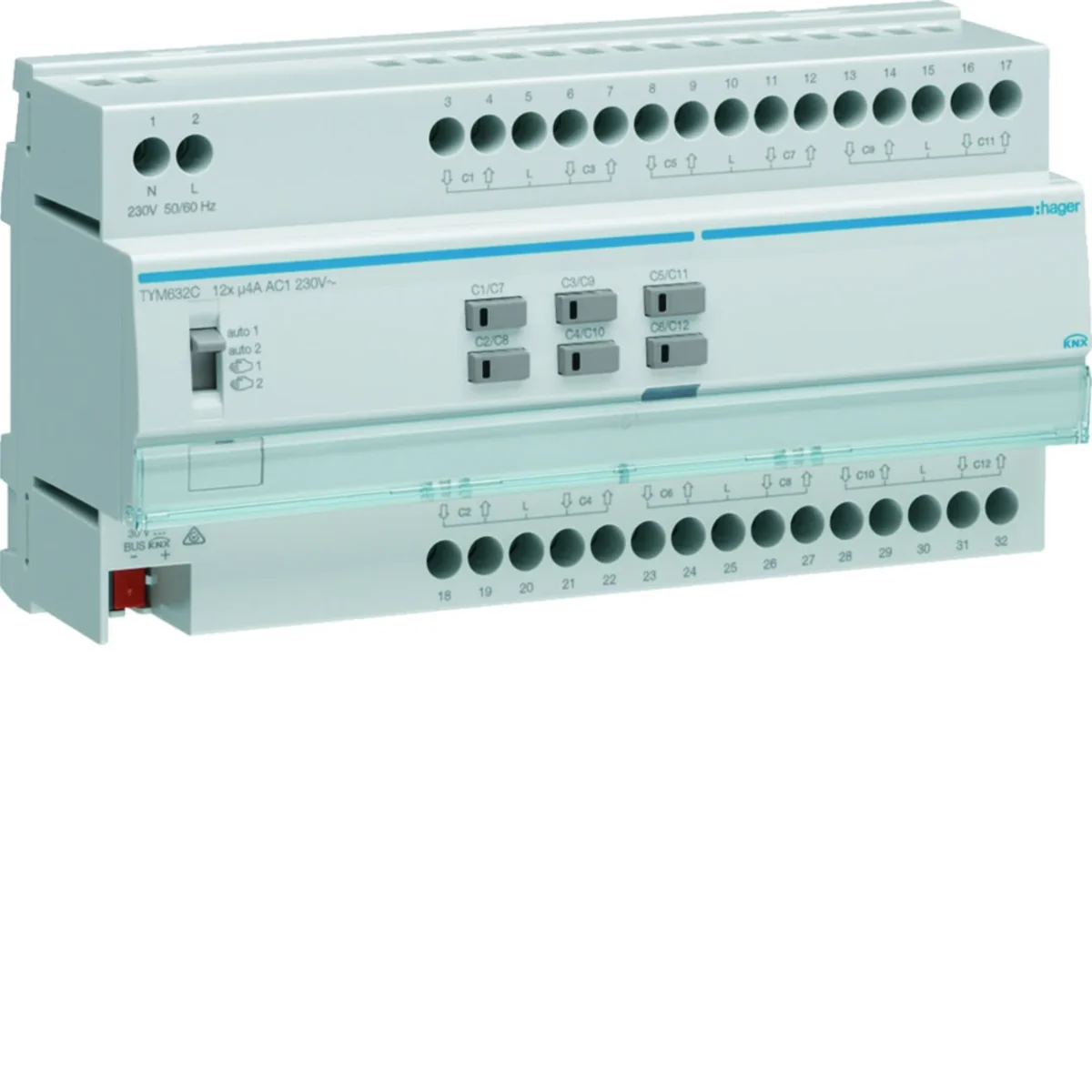

KNX system Blind / roller shutter controller, 12-gang, 230 V AC TYM632C
local index:
AIK104HAGE
Catalog No:
TYM632C
EAN code:
3250616059528
Price:
909,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX system Blind / roller shutter controller, 12-gang, 230 V AC
Technical data
-
Depth [mm]65
-
Level of securityIP20
-
Connection typeWith a screw
-
Operating temperature range [°C]from -5 to 45
-
Accurate colorlight gray
-
Maximum operating current [A]4
-
Bus current consumption (data transmission) [mA]7
-
Manual controlYes
-
storage temperature [°C]from -20 to 70
-
Wire cross-section (cord) [mm²]0.75 - 2.5
-
PKWIU27.33.11.0
-
ColorGray
-
Width [mm]175
-
Height [mm]90
-
Number of modules10
-
DC supply voltage [V]thirty
-
Operating voltage via DC bus [V]21 - 32
-
Connection typeWith screw terminals
-
BeaconYes
-
Supply voltage typeAC
-
Conductor cross-section (wire) [mm²]0.75 - 2.5
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Width in number of modular spacings10
-
Bus module detachableNo
-
With LED indicationYes
-
Switching current (resistive)4 A
-
Max. number of venetian-blind outputs12
-
Type of currentAC
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodDRA (DIN-rail adapter)
-
With bus connectionYes
-
Local operation/hand operationYes
-
Number of inputs0
-
Max. switching power900 W
-
With switch functionNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 288 pcs. |
| Weight (kg) | 0,447 | 0,550 | 7,035 | 191,840 |
| Width (m) | 0,060 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,095 | 0,085 | 0,235 | 1,070 |
| Depth (m) | 0,178 | 0,230 | 0,360 | 1,200 |
