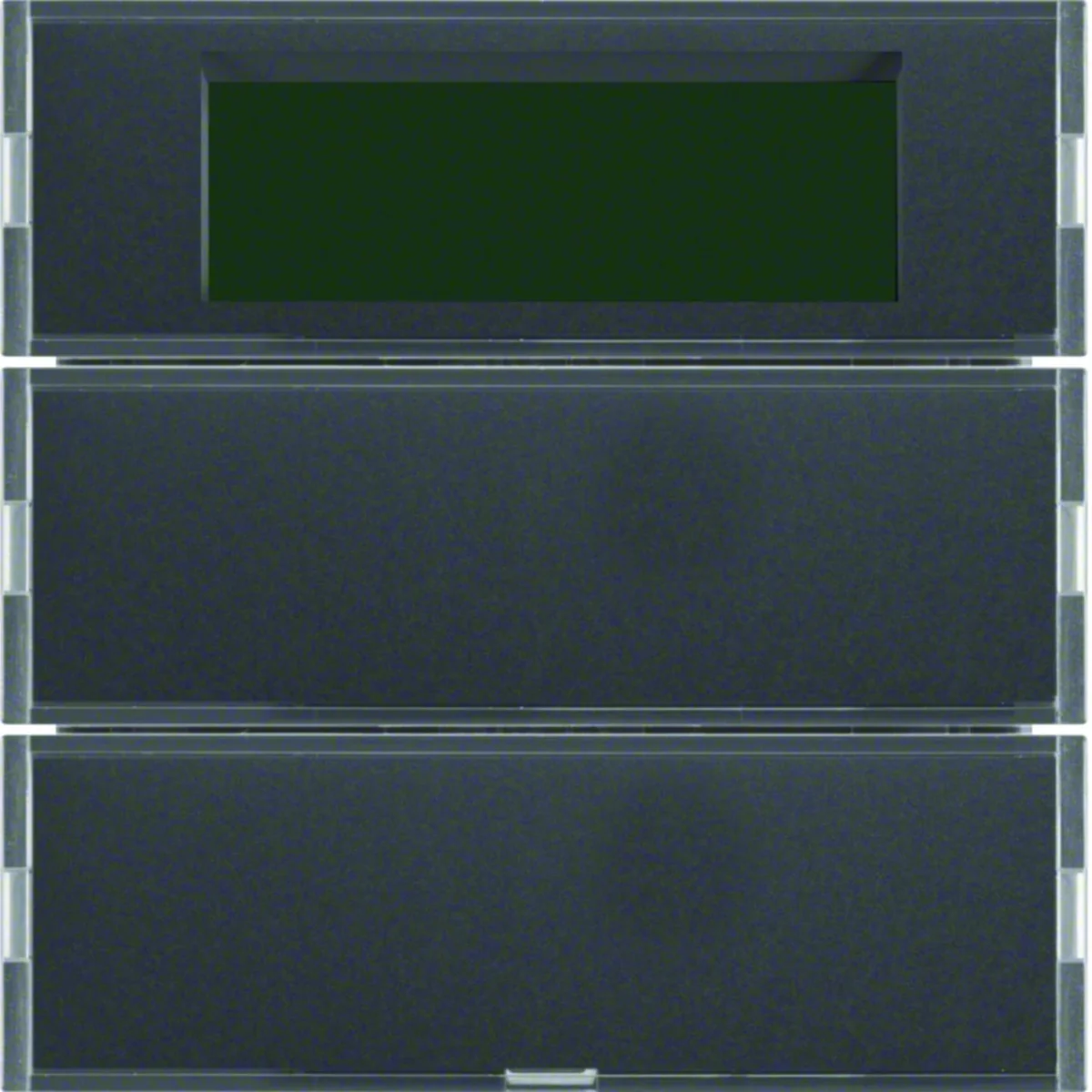

KNX SYSTEM B.1/B.3/B.7 Double button with temperature regulator and display for aluminum and anthracite frames 75662785

local index:
AIK215HAGE
Catalog No:
75662785
EAN code:
4011334284024
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 2
Material: Thermoplastic
Price:
558,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double pushbuttonwith temperature regulator and display, for KNX system frames. Main design line: Berker B.1/B.3/B.7.

Functions

  • regulator operating modes: comfort, standby, night and freeze/overheat protection
  • for switching, touch, dimming, blind and temperature controls
  • with valve protection
  • for room temperature timer

Controls and Indicators

  • Micro-SDHC/SDXC Class 10 or UHS-1
  • Configurable blinds control as short-long-short or long-short
  • LCD display with symbols
  • display of operating mode, controller lock, indoor/outdoor temp., time (required clock)

Settings

  • configurable presence button to extend the comfort mode
  • configurable function display for the client

Characteristics of the series:

The economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Halogen free
    NO
  • Material
    Thermoplastic
  • Surface
    Gloss
  • Level of security
    IP20
  • Operating temperature range [°C]
    from -5 to 45
  • PKWIU
    27.12.31.0
  • Number of buttons
    2
  • Installation
    Flush-mounted
  • Family
    KNX SYSTEM
  • Width [mm]
    55.8
  • Surface finish
    Natural

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    6
  • With LED indication
    Yes
  • With display
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7021
  • With room temperature controller
    Yes
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    No
  • Number of buttons
    2
  • With label area
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No
  • With IR sensor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 32 pcs. 1024 pcs.
Weight (kg) 0,029 0,155 5,335 195,720
Width (m) 0,055 0,085 0,300 0,800
Length (m) 0,024 0,055 0,225 1,050
Depth (m) 0,056 0,160 0,400 1,200
