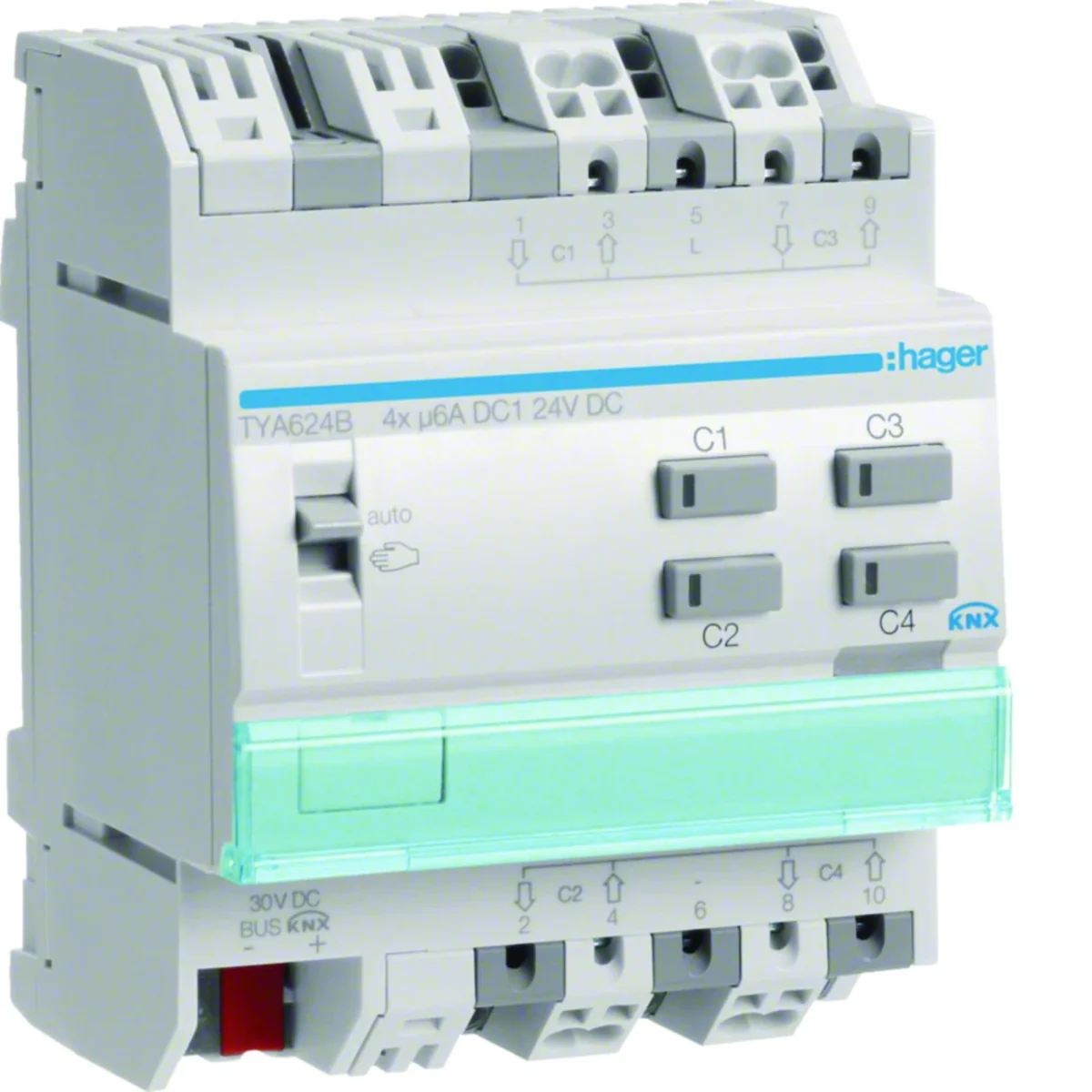

KNX Roller shutter controller 4-fold 24VDC 4-modules TYA624B

local index:
AIK093HAGE
Catalog No:
TYA624B
EAN code:
3250616059658
Manufacturer: HAGER
Color: Gray
Family: KNX
Level of security: IP20
Price:
383,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Roller shutter controller from the KNX System series.

Functions:

  • shutter only mode
  • with sun protection
  • with protection functions, e.g. for wind, rain, alarm
  • with shutter positioning function

Controls and indicators:

  • optical signaling device,
  • manual operation of each channel by means of a button (one-level operation )
  • modular
  • for controlling up to 4 independent DC drives ,
  • status LED integrated in push button for manual operation
  • 4 manual up/down buttons for each channel/device
  • with illuminated programming button

Connection:

  • with built-in bus port
  • bus connection via connection terminals

Series characteristics:

Economic use of buildings is gaining in importance, especially in terms of functionality and energy efficiency. When we consider private buildings, there is a need for safety, security, comfort and well-being. A modern electrical installation with an intelligent KNX system creates ideal conditions to meet all these requirements by integrating the automation management of the entire building.

Technical data

  • Color
    Gray
  • Level of security
    IP20
  • Connection type
    Quick Connect
  • Number of modules
    4
  • DC supply voltage [V]
    thirty
  • Operating voltage via DC bus [V]
    21 - 32
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    26.30.23.0
  • Family
    KNX
  • power loss [W]
    2
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    light gray
  • Maximum operating current [A]
    6
  • Bus current consumption (data transmission) [mA]
    5.2
  • Beacon
    Yes
  • Supply voltage type
    DC
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    4
  • Bus module detachable
    No
  • With LED indication
    Yes
  • Switching current (resistive)
    6 A
  • Max. number of venetian-blind outputs
    4
  • Type of current
    DC
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    Yes
  • Local operation/hand operation
    Yes
  • Number of inputs
    0
  • Max. switching power
    144 W
  • With switch function
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,213 0,280 7,100 193,400
Width (m) 0,069 0,095 0,310 0,800
Length (m) 0,090 0,080 0,240 1,050
Depth (m) 0,071 0,120 0,360 1,200
