KNX RF quicklink surface-mounted illuminance sensor white TRC321B
local index:
AIK074HAGE
Catalog No:
TRC321B
EAN code:
3250615989109
Price:
213,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

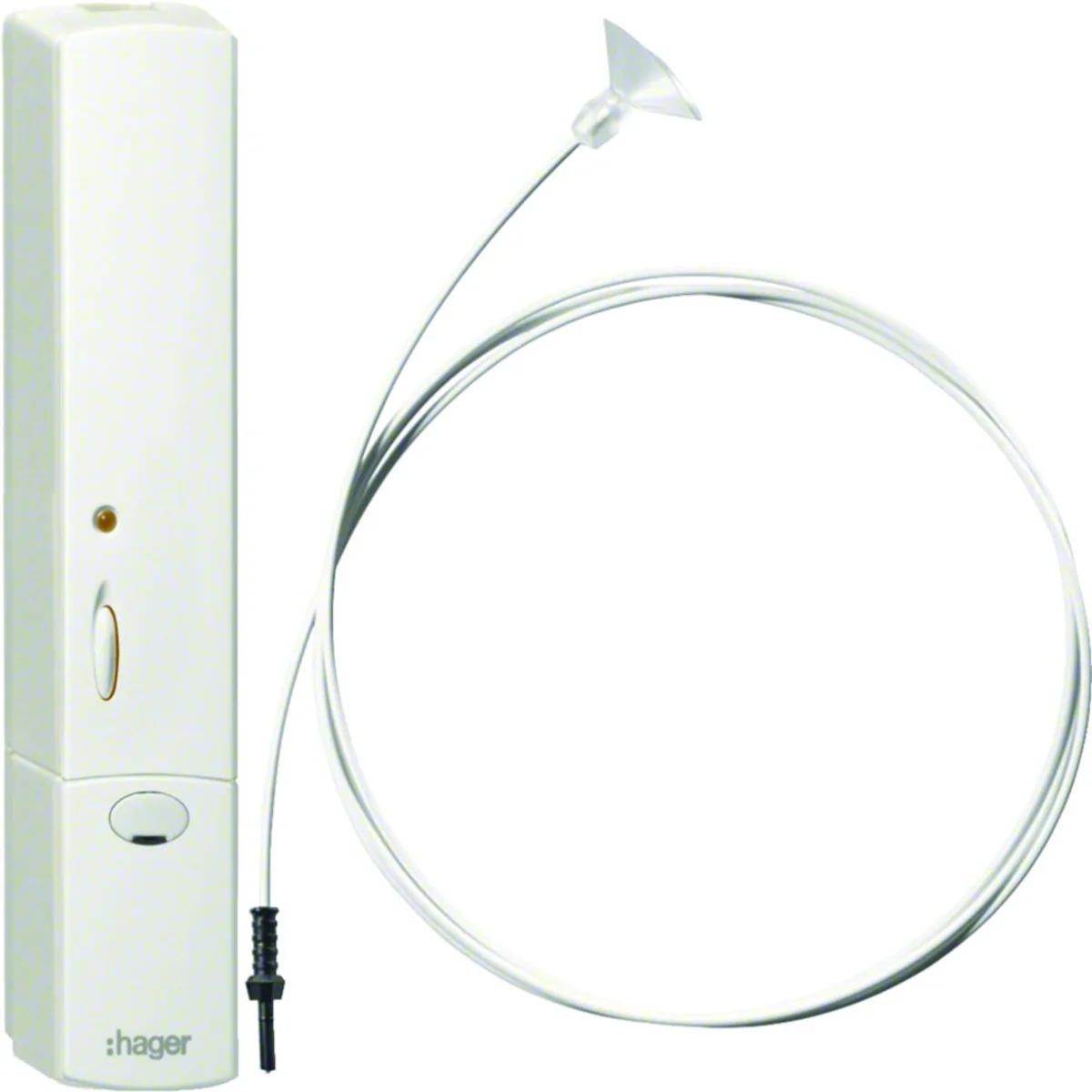

KNX RF quicklink surface-mounted illuminance sensor white
Technical data
-
Battery2 x 1.5 LR03
-
Depth [mm]thirty
-
Level of securityIP20
-
Height [mm]30.5
-
Radio transmitter/receiver frequency [MHz]868.3
-
Number of radio channels1
-
Radio transmitter power [mA]<10
-
Radio protocolKNX
-
storage temperature [°C]from -25 to 70
-
Radio transmitter range (in open area) [m]100
-
PKWIU26.51.20.0
-
Length [mm]138
-
InstallationSurface-mounted
-
Width [mm]26
-
Operating temperature range [°C]from 0 to 50
-
Receiver category2
-
Number of quicklinksup to 20 transmitters/receivers
-
DC operating voltage [V]3
-
BeaconLight indicator
-
Range of the radio transmitter (in the building) [m]thirty
-
Battery life [years]≈ 4
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentYes
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Width in number of modular spacings0
-
Bus module detachableNo
-
With LED indicationYes
-
Input voltage3 ... 3 V
-
External signal voltage necessaryNo
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodSurface mounted
-
With bus connectionNo
-
LED controllingYes
-
Number of inputs1
-
Type of voltage (input voltage)DC
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,083 | 0,151 | 5,800 | 164,200 |
| Width (m) | 0,097 | 0,100 | 0,315 | 0,800 |
| Length (m) | 0,033 | 0,045 | 0,215 | 1,098 |
| Depth (m) | 0,135 | 0,170 | 0,365 | 1,200 |
