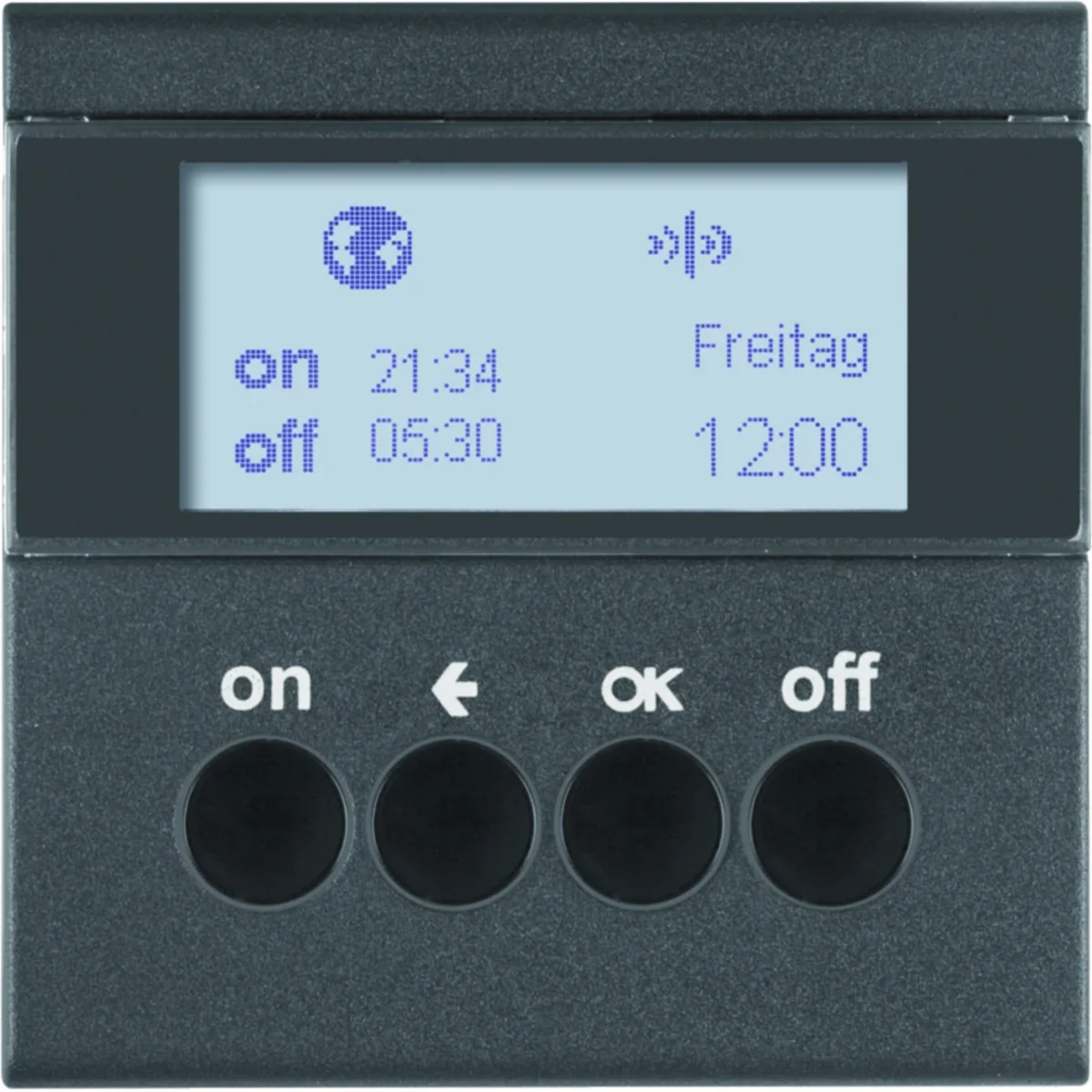

KNX RF QUICKLINK S.1/B.3/B.7 Time switch anthracite matt 85745285

Time switch from the KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7. For product no.: 8512 12 00, 8502 01 00.

Functions:

• additional functions ETS: +6 scenes, working mode on/off, time-controlled recall of scenes and dimming values, push-button switch, status display
• reset function (factory settings)
• configurable transmitter and/or receiver functions
• "party" function, automatic commands, radio commands and extension commands are not executed (switch lock)
• with button lock ;
• quicklink functions: switching, 2 scenes, time control, push button switch (make contact), forced control
• manual/automatic changeover

Controls and indicators:

• LCD backlit during operation
• indication of attachment/mechanism compatibility on display
• adjustable LCD contrast

Connection:

• integration with the KNX-TP system via the KNX radio network/surface-mounted TP gateway

Settings :

• with automatic winter/summer time changeover (detachable)
• astronomical program for sunrise/sunset changeover with city/country input and individual adjustment
li>
• commands of standalone programs sent by radio and from extensions are not executed
• vacation program causing accidental selection of switching times in automatic mode

Series characteristics :

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
