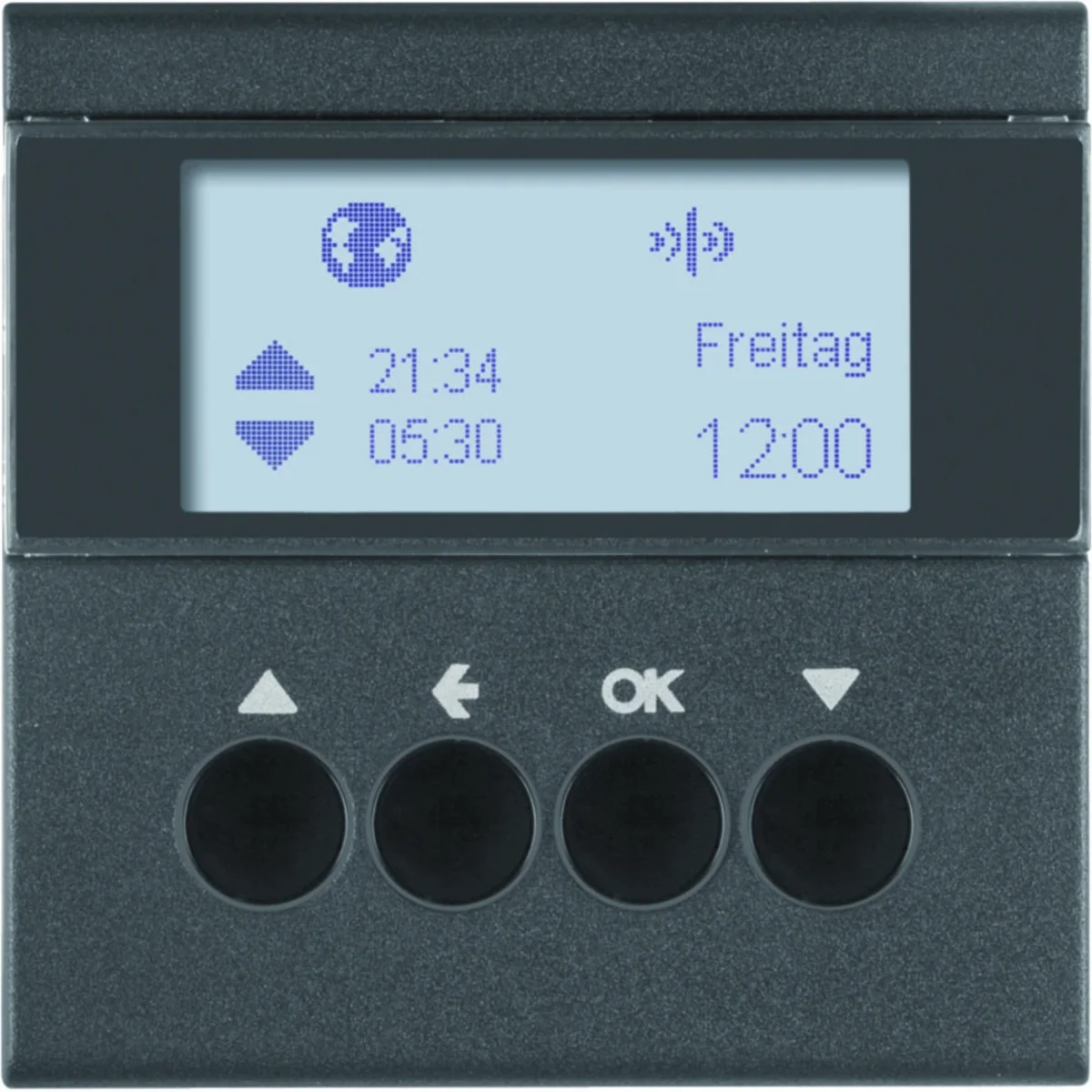

KNX RF QUICKLINK S.1/B.3/B.7 Shutter timing switch anthracite matt 85745185

Louver time switch from the KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7.

Features:

• Additional ETS features: +6 scenes , operating mode, status indicator, 2x alarm
• reset function (factory settings)
• with button lock
• party function, automatic commands, radio and extension commands are not executed (blocked)
• option to configure transmitter and/or receiver functions;
• option to remember slat position for a given scene
• recalling scenes using KNX radio devices
• quicklink functions for including single, group and central control of blinds/roller shutters into the system
• quicklink functions: blinds, 2 scenes, forced control, up/down button switch
• manual/automatic toggle

Controls and indicators:

• indicate attachment/mechanism compatibility on display
• adjustable contrast of the LCD display
• LCD display illuminated during operation

Detection:

• sun protection and twilight function in combination with a radio illuminance sensor

Connection:

• integration with the KNX system -TP via KNX radio network/TP surface-mounted gateway

Settings:

• with automatic winter/summer time changeover (optional disconnection)
• Astronomy program for sunrise/sunset switching with city/country input and customization
• Standalone radio commands and extensions are not executed
• holiday program causing random selection of travel times in automatic mode

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent technology system building. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
