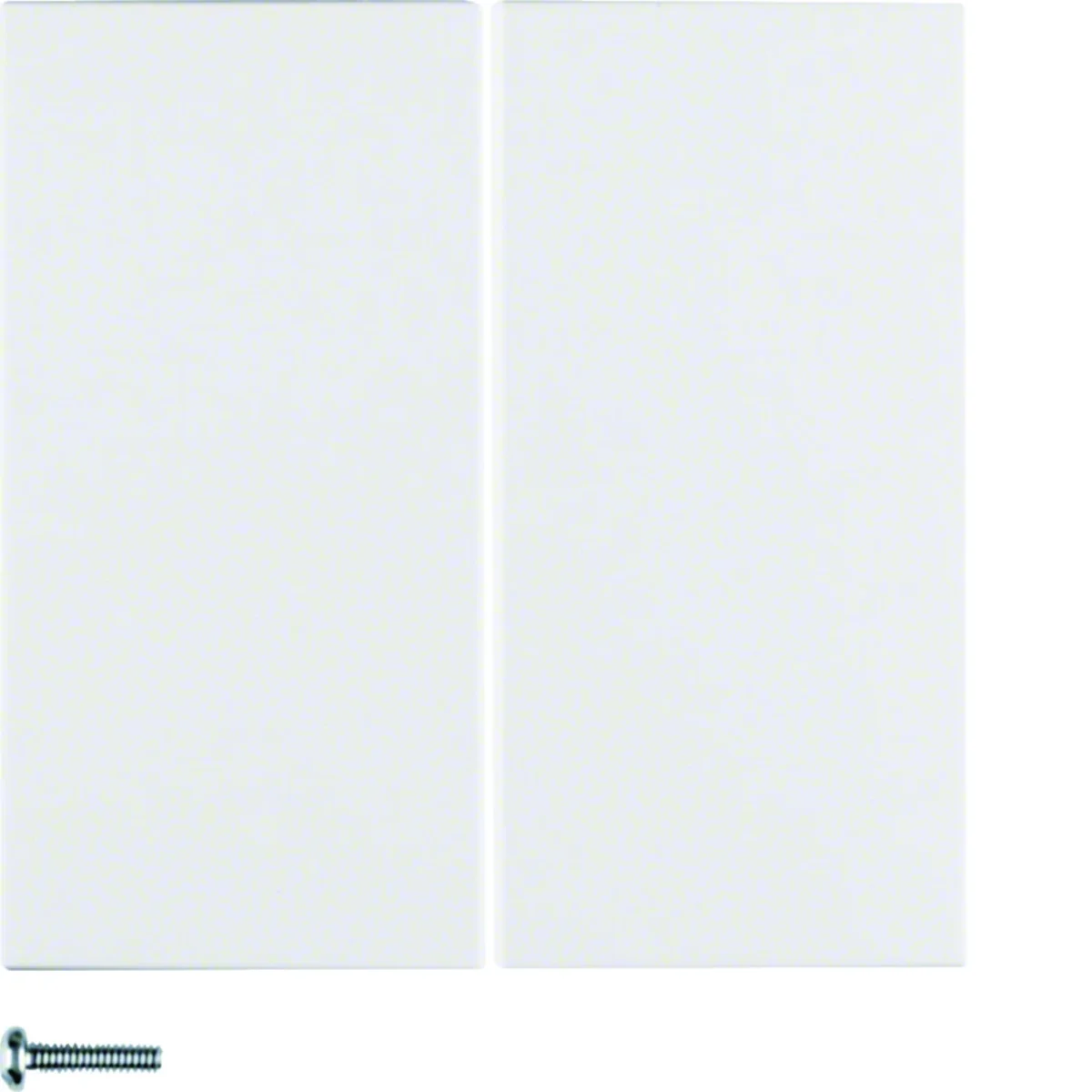

KNX RF QUICKLINK S.1/B.3/B.7 Push-button 2-way white matt 85146188
Lokaler Index:
AIK040BERK
Katalognummer:
85146188
EAN-Code:
4011334368953
Preis:
935,14 zł
gross / stk.
(inklusive MwSt 23%)
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
Double button from the KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7.
Features:
- Additional ETS features: +6 scenes , 1 push-button control up/down, operating mode on/off, dimming value, light intensity indicator, push-button switch, status indicator, forced control
- possibility of configuring transmitter and/or receiver functions
- reset function (to factory settings) ;
- possibility to disable saving scenes
- for plasterboard walls
Control elements and indicators:
- the ability to configure user interfaces for one- or two-level operation
- with a configuration and function button
LED control:
- with configuration and function LED
- LED indicator for cap and mechanism compatibility
Connection:
- integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway
Settings:
- the possibility of freely configuring the lower and upper service surfaces in terms of 2-fold switching/dimming mechanisms and network mechanisms
Series characteristics< /strong>:
KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.
- installation in places where cable installation is not possible (e.g. glass walls),
- the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
- the ability to control electrical receivers using remote controls,
- the ability to create light scenes and group and central control functions.
Technische Daten
-
MaterialThermoplastic
-
FamilyKNX RF QUICKLINK
-
Radio transmitter/receiver frequency [MHz]868.3
-
Number of radio channels4
-
Radio transmitter power [mW]<10
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Radio transmitter range (in open area) [m]100
-
SurfaceMatt
-
Operating temperature range [°C]from -5 to 45
-
Receiver category2
-
Number of quicklinksup to 20 transmitters/receivers
-
Radio protocolKNX
-
Range of the radio transmitter (in the building) [m]thirty
-
PKWIU26.51.20.0
Weitere technische Daten
-
Bus system KNXNo
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
With bus connectionYes
-
Material qualityThermoplastic
-
Surface finishingMatt
-
RAL-number (similar)9010
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Radio frequent bidirectionalYes
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
Hersteller-Details
-
HerstellerBerker GmbH & Co. KG.
-
AdresseDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 36 stk. | 1152 stk. |
| Gewicht (kg) | 0,094 | 3,649 | 136,758 |
| Breite (m) | 0,080 | 0,300 | 0,800 |
| Länge (m) | 0,070 | 0,220 | 1,050 |
| Tiefe (m) | 0,080 | 0,400 | 1,200 |
