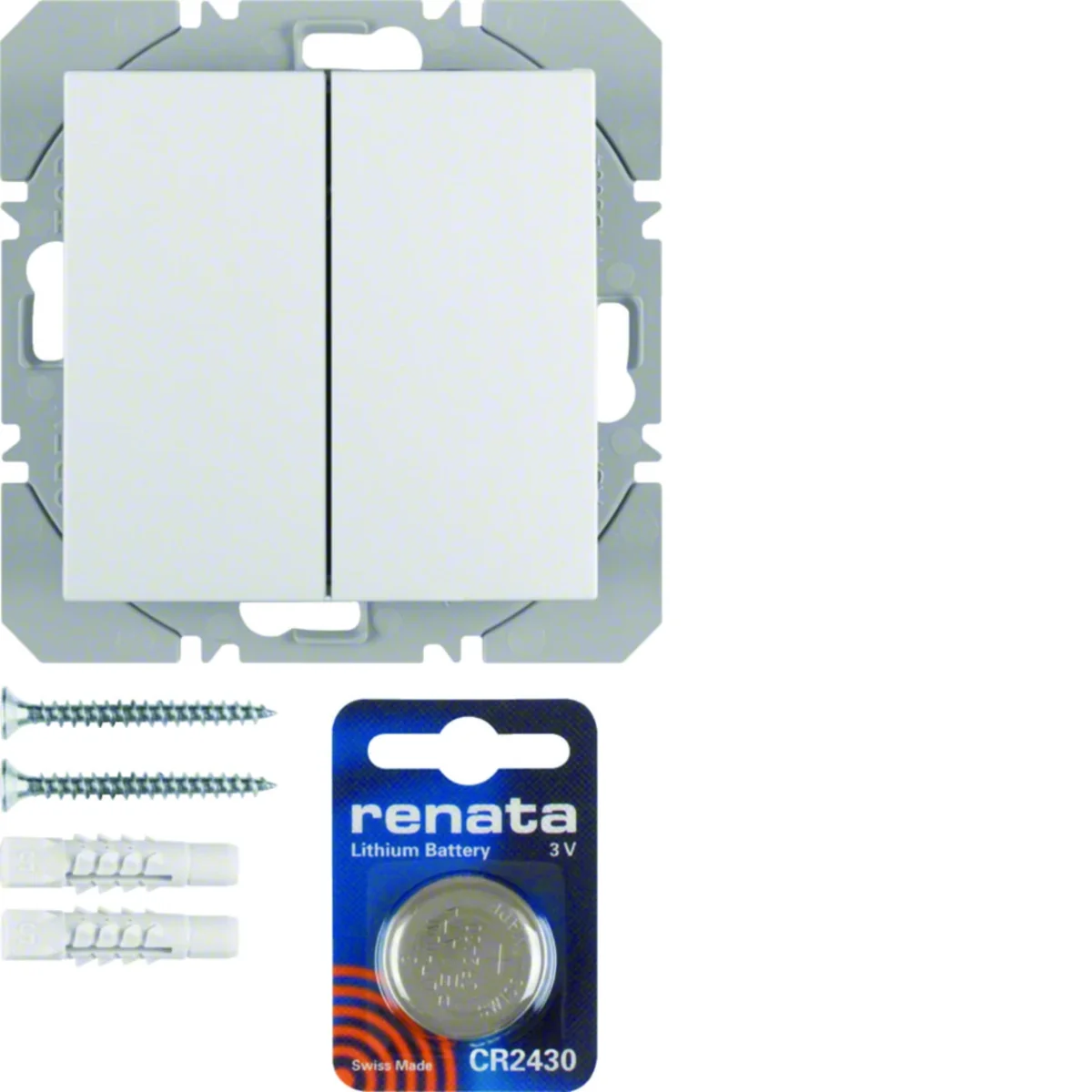

KNX RF QUICKLINK S.1/B.3/B.7 Push-button 2-gang flat white glossy 85656289

2-gang flat radio button, KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7.

Features:

• Additional ETS features: +6 scenes , on/off operating mode, push-button switch, status indicator, dimming value
• reset function (factory settings)
• for drywall

Controls and Indicators:

• user interfaces can be configured for one- or two-level operation
• with configuration button

Installation / Mounting:

• for flush surface mounting and combination expansion

Control LED:

• with red/green/orange LEDs for sending and battery status
• with configuration LED

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

• the ability to freely configure the lower and upper service surface

Series characteristics:

< p> KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
