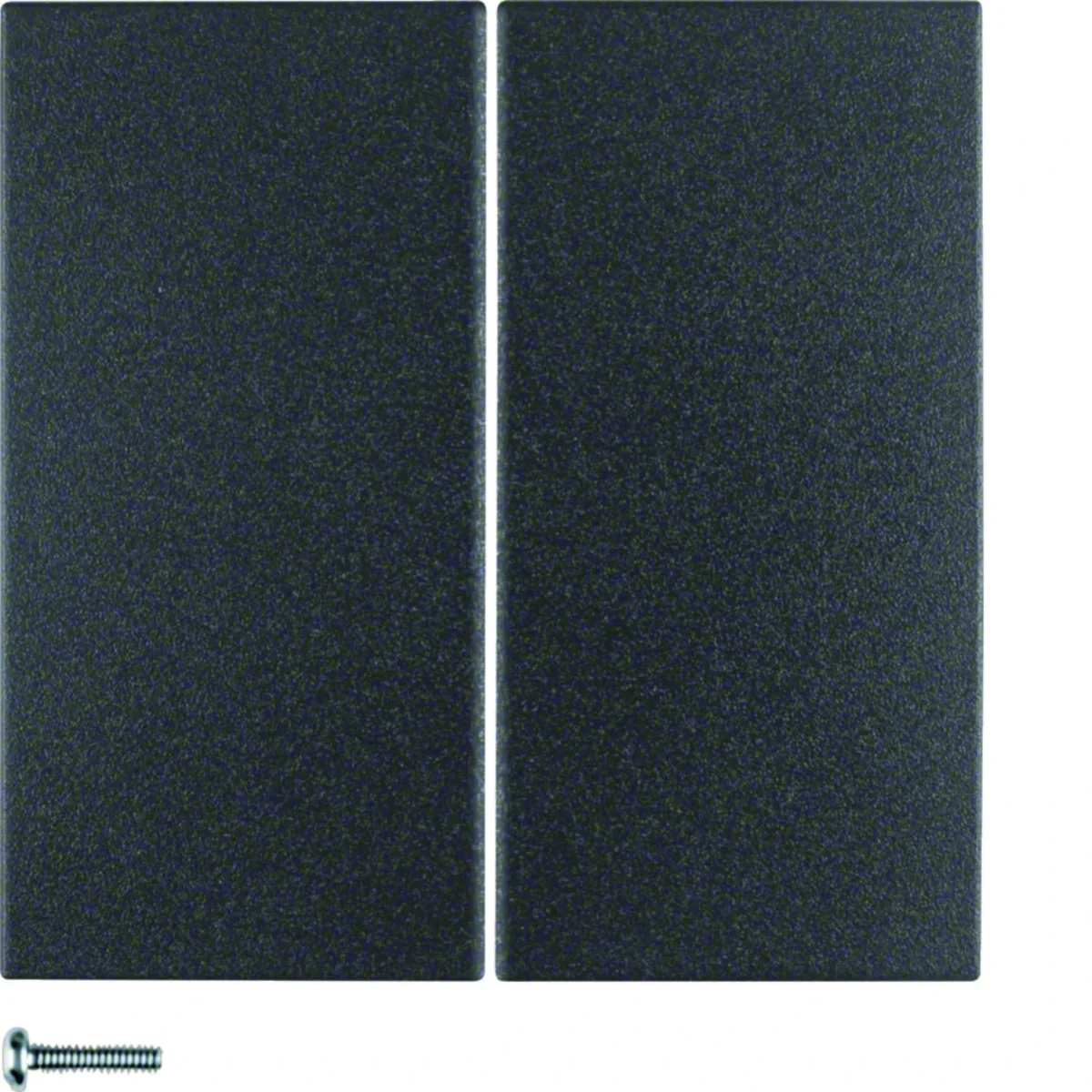

Name: KNX RF QUICKLINK S.1/B.3/B.7 Push-button 2-gang anthracite matt
Brand: BERKER
SKU: AIK039BERK
Price: 215.83 PLN

Double button from the KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7. For product no.: 8512 22 00, 8542 21 00, 8502 01 00.

Functions:

additional functions ETS: +6 scenes, 1 push-button control up/down, operating mode on/off, dimming value, light intensity indicator, push-button switch, status indicator, forced control
possibility of configuring transmitter and/or receiver functions
reset function (to factory settings) ;
possibility to disable saving scenes
for plasterboard walls

Elements controls and indicators:

the ability to configure user interfaces for one- or two-level operation
with a configuration and function button

LED control:

with configuration and function LED
LED indicator for attachment and mechanism compatibility

Connection:

integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings< /strong>:

the possibility of freely configuring the lower and upper service surfaces in terms of 2-fold switching/dimming mechanisms and network mechanisms

Series characteristics :

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

installation in places where cable installation is not possible (e.g. glass walls),

the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,

the ability to control electrical receivers using remote controls,

the ability to create light scenes and group and central control functions.

Material

Thermoplastic
Family

KNX RF QUICKLINK
Radio transmitter/receiver frequency [MHz]

868.3
Number of radio channels

4
Radio transmitter power [mA]

<10
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Radio transmitter range (in open area) [m]

100

Surface

Matt
Operating temperature range [°C]

from -5 to 45
Receiver category

2
Number of quicklinks

up to 20 transmitters/receivers
Radio protocol

KNX
Range of the radio transmitter (in the building) [m]

thirty
PKWIU

26.51.20.0

Other technical data

Bus system KNX

No
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

Yes
Material quality

Thermoplastic
Surface finishing

Matt
RAL-number (similar)

7021

Bus system KNX-RF (Radio Frequent)

Yes
Bus system LON

No
Other bus systems

None
Material

Plastic
Surface protection

Untreated
Colour

Anthracite
Transparent

No

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,069	0,094	3,649	136,758
Width (m)	0,058	0,084	0,300	0,800
Length (m)	0,030	0,070	0,225	1,050
Depth (m)	0,058	0,085	0,400	1,200
