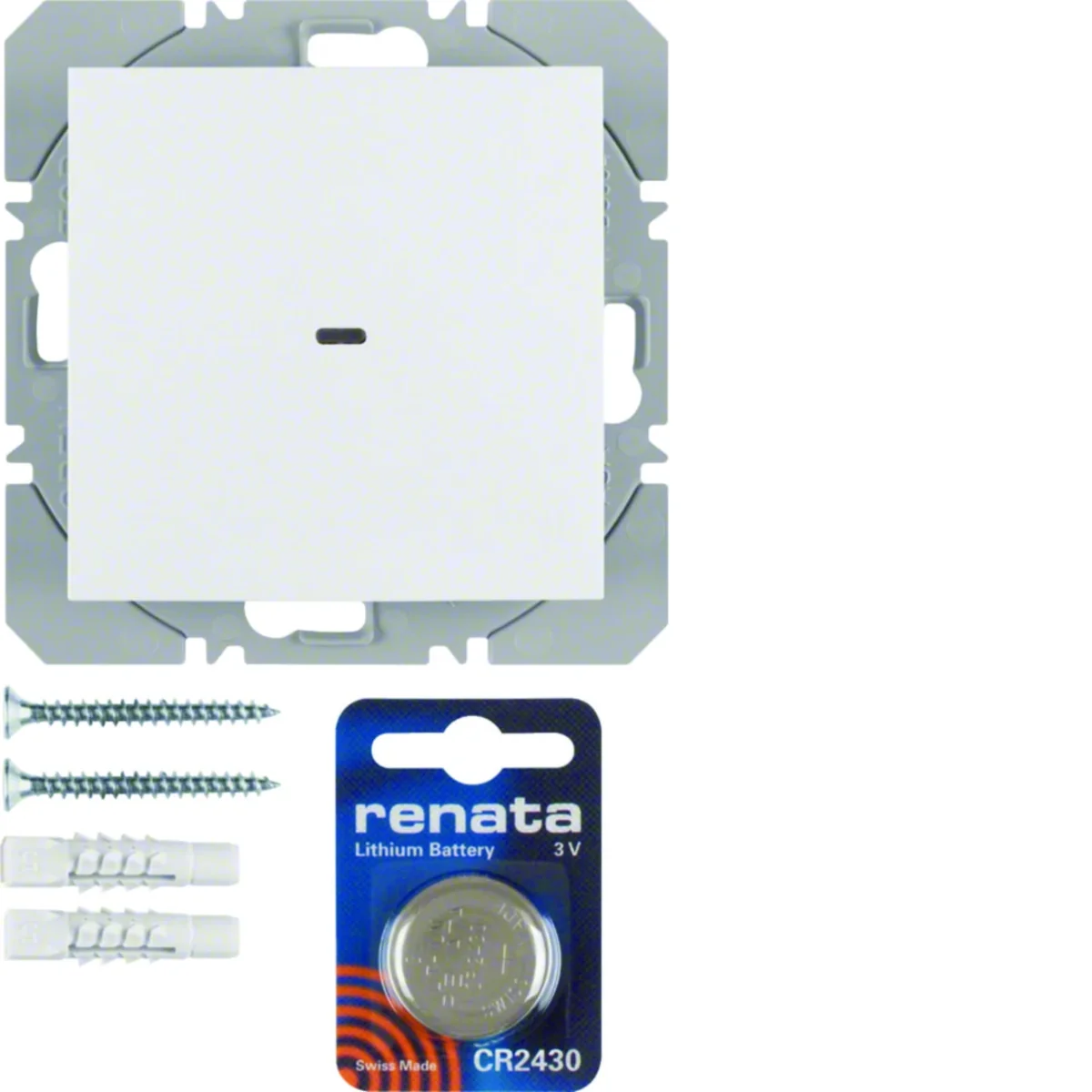

1-gang flat radio button, KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7.

Features:

Additional ETS features: +6 scenes , on/off operating mode, push-button switch, status indicator, dimming value
reset function (factory settings)
for drywall

Controls and Indicators:

user interfaces can be configured for one- or two-level operation
with configuration button

Installation / Mounting:

for flush surface mounting and combination expansion

Control LED:

with red/green/orange LEDs for sending and battery status
with configuration LED

Connection:

integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

the ability to freely configure the lower and upper service surface

Series characteristics:

< p> KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

installation in places where cable installation is not possible (e.g. glass walls),
the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
the ability to control electrical receivers using remote controls,
the ability to create light scenes and group and central control functions.

Material

Thermoplastic
Family

KNX RF QUICKLINK
Radio transmitter/receiver frequency [MHz]

868.3
Number of radio channels

2
Radio transmitter power [mA]

<10
Radio protocol

KNX
Range of the radio transmitter (in the building) [m]

thirty
Battery life [years]

≈ 5

Surface

Matt
Operating temperature range [°C]

from -5 to 45
Receiver category

2
Number of quicklinks

up to 20 transmitters/receivers
DC operating voltage [V]

3
Relative humidity (no condensation) [%]

0 - 65 (non-condensing)
Radio transmitter range (in open area) [m]

100
PKWIU

26.51.20.0

Other technical data

Bus system KNX

No
Bus system radio frequent

No
Other bus systems

None
Mounting method

Flush-mounted
Model

Wall-mounted transmitter complete
Material

Plastic
Surface protection

Untreated
Colour

White
Transparent

No

Bus system KNX-RF (Radio Frequent)

Yes
Bus system LON

No
Radio frequent bidirectional

Yes
With bus connection

Yes
Number of channels

2
Material quality

Thermoplastic
Surface finishing

Matt
RAL-number (similar)

9010

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	1152 pcs.
Weight (kg)	0,055	0,095	3,273	124,749
Width (m)	0,071	0,095	0,300	0,800
Length (m)	0,015	0,065	0,225	1,050
Depth (m)	0,071	0,105	0,400	1,200
