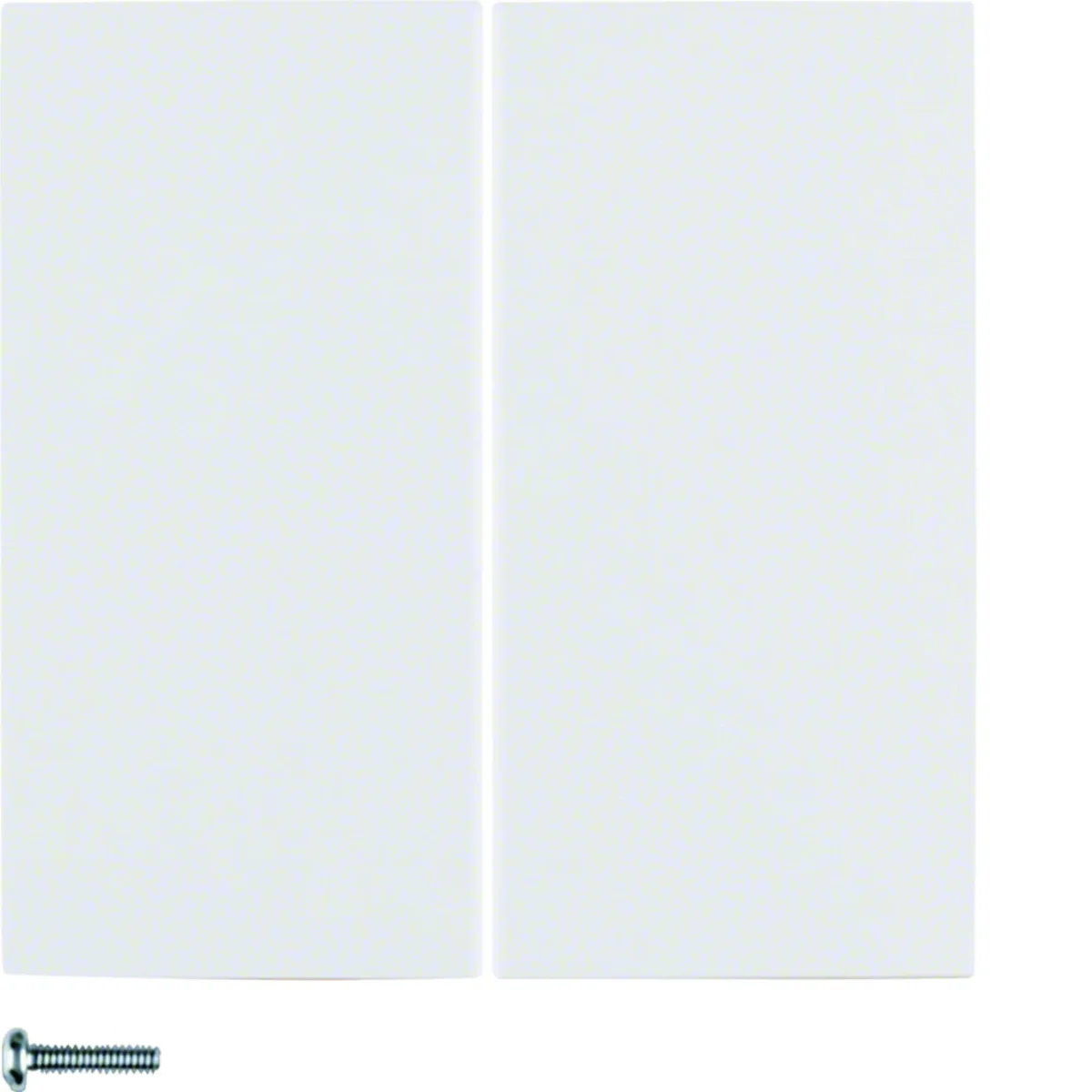

KNX RF QUICKLINK S.1/B.3/B.7 Button 2-gang glossy white 85146189

local index:
AIK041BERK
Catalog No:
85146189
EAN code:
4011334368946
Manufacturer: BERKER
Material: Thermoplastic
Surface: Gloss
Family: KNX RF QUICKLINK
Price:
206,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double button from the KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7. For product no.: 8512 22 00, 8542 21 00, 8502 01 00.

Functions:

  • additional functions ETS: +6 scenes, 1 push-button control up/down, operating mode on/off, dimming value, light intensity indicator, push-button switch, status indicator, forced control
  • possibility of configuring transmitter and/or receiver functions
  • reset function (to factory settings) ;
  • possibility to disable saving scenes
  • for plasterboard walls

Elements controls and indicators:

  • the ability to configure user interfaces for one- or two-level operation
  • with a configuration and function button

LED control:

  • with configuration and function LED
  • LED indicator for attachment and mechanism compatibility

Connection:

  • integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings< /strong>:

  • the possibility of freely configuring the lower and upper service surfaces in terms of 2-fold switching/dimming mechanisms and network mechanisms

Series characteristics :

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    4
  • Radio transmitter power [mA]
    <10
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.51.20.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,069 0,094 3,649 136,758
Width (m) 0,055 0,084 0,300 0,800
Length (m) 0,035 0,070 0,225 1,050
Depth (m) 0,070 0,085 0,400 1,200
