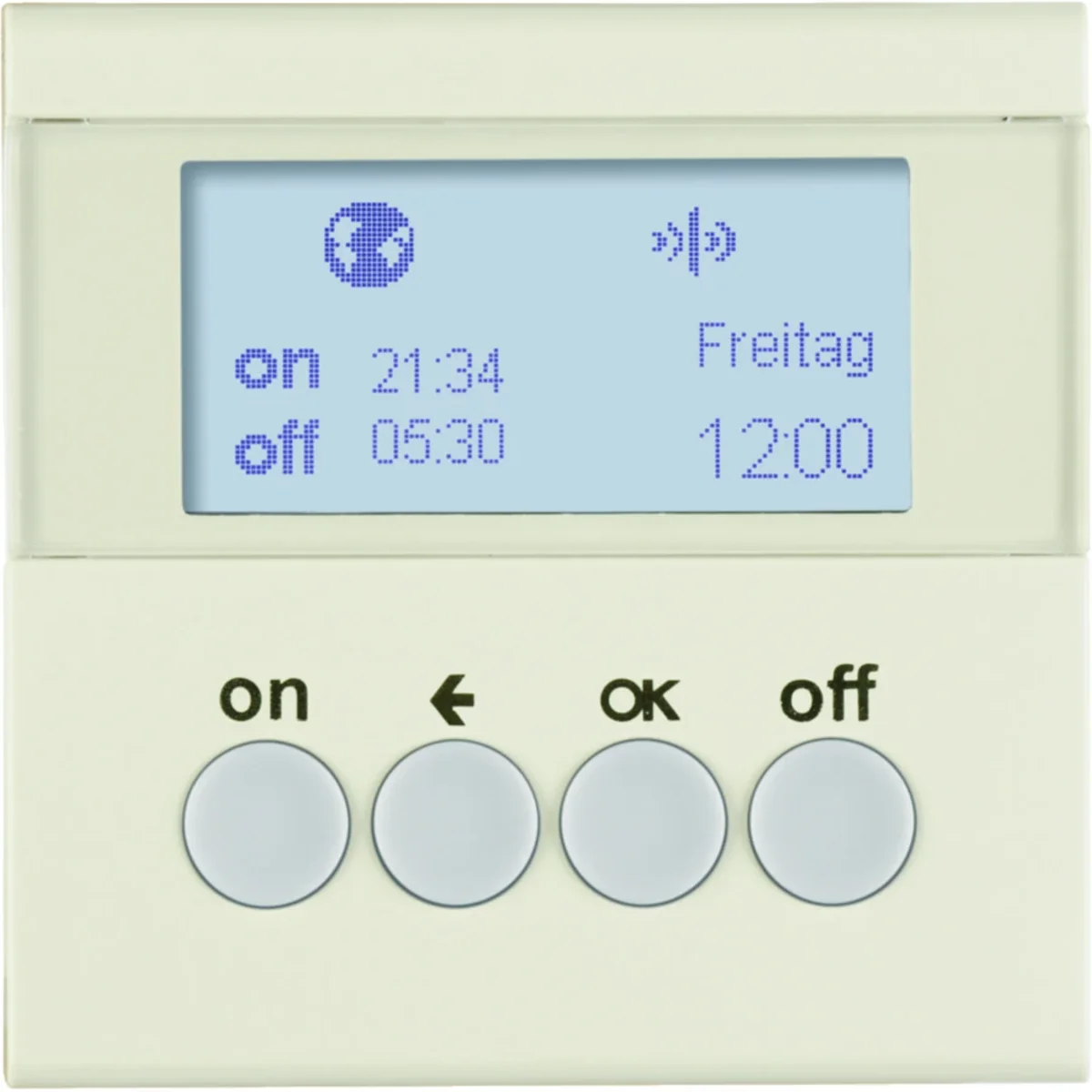

KNX RF QUICKLINK S.1 Time switch cream gloss 85745282

Time switch from the KNX RF quicklink series. Main design line: Berker S.1. For product no.: 8512 12 00, 8502 01 00

Functions:

• additional functions ETS: +6 scenes, operating mode on on/off, time-controlled recall of scenes and dimming values, push-button switch, status indicator
• reset function (factory settings)
• sender and/or receiver function configurable
• "party" function, automatic commands, radio commands and extension commands are not executed (switch lock)
• with button lock ;
• quicklink functions: switching, 2 scenes, control timer, push button switch (make contact), forced control
• manual/automatic changeover

Controls and indicators:

• LCD backlit during operation
• indication of attachment/mechanism compatibility on display
• adjustable LCD contrast

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

• with automatic winter/summer time changeover (detachable)
• astronomical program for sunrise/sunset changeover with city/country input and individual adjustment
• commands of standalone programs sent by radio and from extensions are not executed
• holiday program causing accidental selection of switching times in automatic mode

Series characteristics< /strong>:
