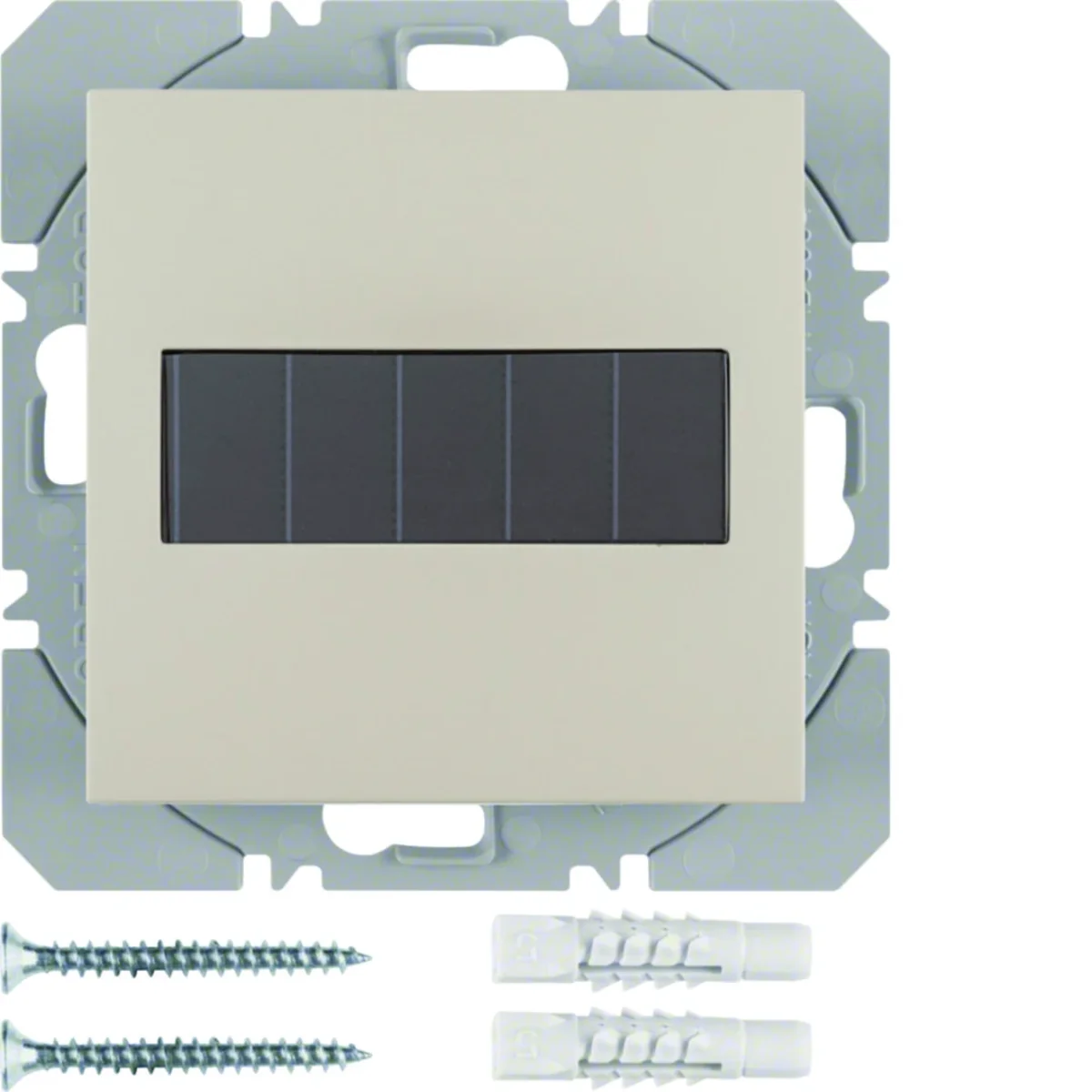

KNX RF QUICKLINK S.1 Flat push-button, 1-gang, with solar battery, cream gloss 85655182

Functions:

• additional ETS functions: +6 scenes, on/off mode. switch, status indicator, dimming value
• reset function (factory settings)
for drywall

Controls and indicators :

• the ability to configure user interfaces for one- or two-level operation
• with a configuration button

Voltage

• powered by solar cells

LED control:

• with configuration LED
• with red/green/orange send and battery status LEDs

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
