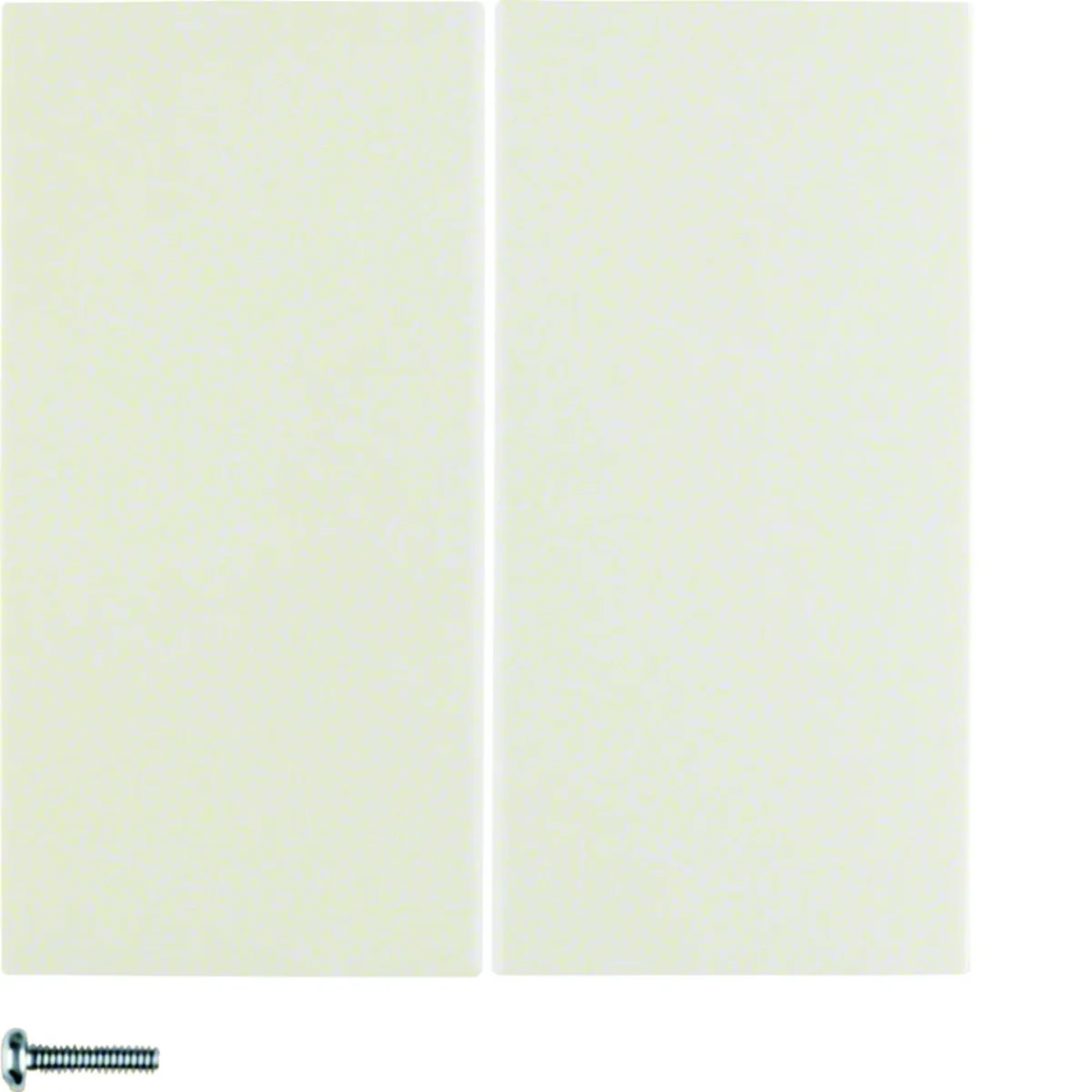

KNX RF QUICKLINK S.1 Button 2-fold cream gloss 85146182
Indice locale:
AIK037BERK
Numero di catalogo:
85146182
Codice EAN:
4011334368939
Prezzo:
953,52 zł
gross / pezzi
(inclusa IVA 23%)
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Chiedi informazioni sul prodotto
Descrizione del prodotto
Double button from the KNX RF quicklink series. Main design line: Berker S.1. For product no.: 8512 22 00, 8542 21 00, 8502 01 00.
Functions:
- additional functions ETS: +6 scenes, 1 push-button control up/down, operating mode on/off, dimming value, light intensity indicator, push-button switch, status indicator, forced control
- possibility of configuring transmitter and/or receiver functions
- reset function (to factory settings) ;
- possibility to disable saving scenes
- for plasterboard walls
Elements controls and indicators:
- the ability to configure user interfaces for one- or two-level operation
- with a configuration and function button
LED control:
- with configuration and function LED
- LED indicator for attachment and mechanism compatibility
Connection:
- integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway
Settings< /strong>:
- the possibility of freely configuring the lower and upper service surfaces in terms of 2-fold switching/dimming mechanisms and network mechanisms
Series characteristics :
KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.
- installation in places where cable installation is not possible (e.g. glass walls),
- the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
- the ability to control electrical receivers using remote controls,
- the ability to create light scenes and group and central control functions.
Dati tecnici
-
MaterialThermoplastic
-
FamilyKNX RF QUICKLINK
-
Radio transmitter/receiver frequency [MHz]868.3
-
Number of radio channels4
-
Radio transmitter power [mW]<10
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Radio transmitter range (in open area) [m]100
-
SurfaceGloss
-
Operating temperature range [°C]from -5 to 45
-
Receiver category2
-
Number of quicklinksup to 20 transmitters/receivers
-
Radio protocolKNX
-
Range of the radio transmitter (in the building) [m]thirty
-
PKWIU26.51.20.0
Altri dati tecnici
-
Bus system KNXNo
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
With bus connectionYes
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Radio frequent bidirectionalYes
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
Dettagli del produttore
-
ProduttoreBerker GmbH & Co. KG.
-
IndirizzoDE 66440 Blieskastel Zum Gunterstal Niemcy
Imballaggio sfuso
| Una specie di pacchetto | Karton | Pakiet | Paleta |
| Quantità | 1 pezzi | 36 pezzi | 1152 pezzi |
| Peso (kg) | 0,085 | 3,500 | 135,000 |
| Larghezza (m) | 0,090 | 0,300 | 0,800 |
| Lunghezza (m) | 0,070 | 0,220 | 1,050 |
| Profondità (m) | 0,080 | 0,400 | 1,200 |
