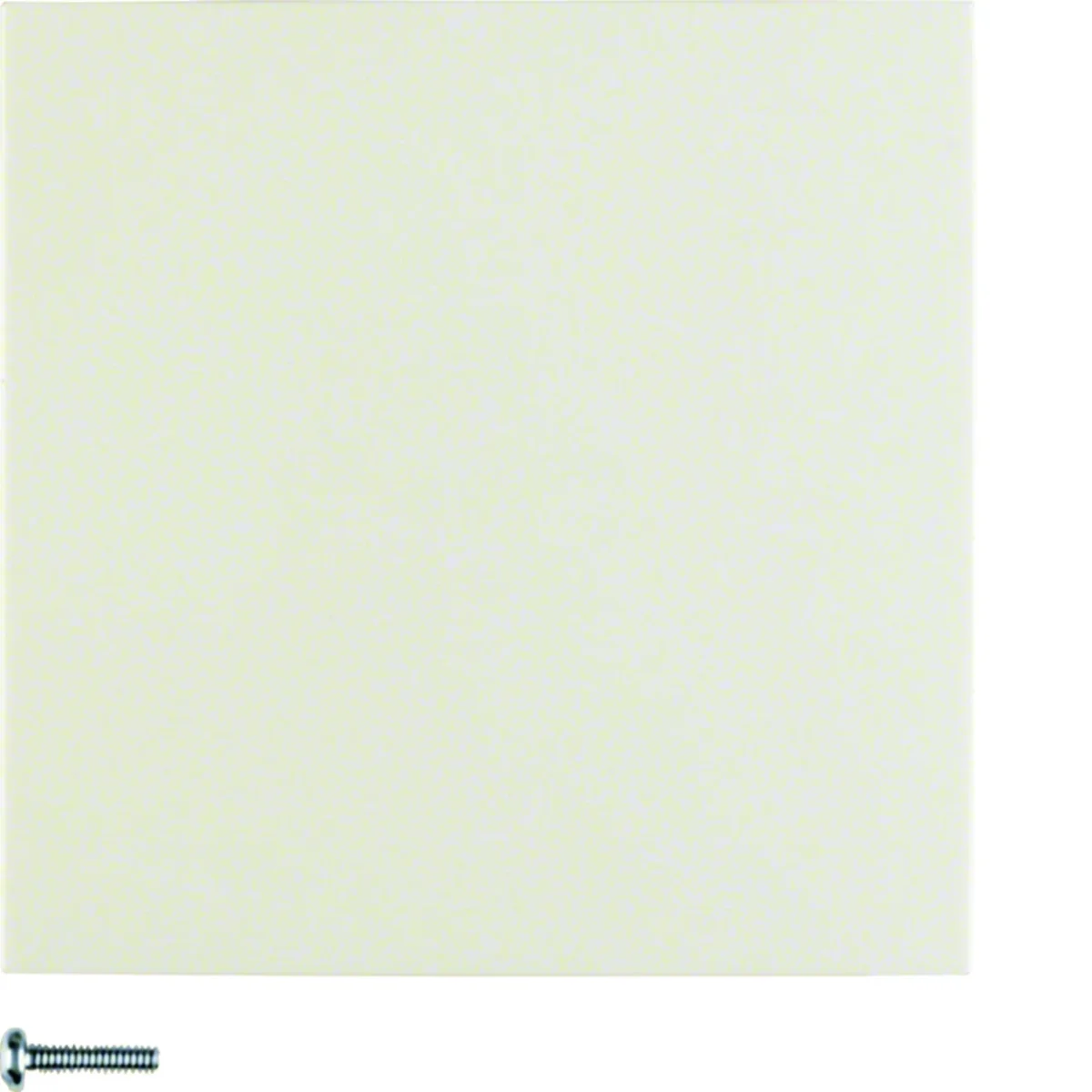

KNX RF QUICKLINK S.1 Button 1-gang cream gloss 85145182

local index:
AIK022BERK
Catalog No:
85145182
EAN code:
4011334368724
Manufacturer: BERKER
Material: Thermoplastic
Surface: Gloss
Family: KNX RF QUICKLINK
Price:
169,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single button from the KNX RF quicklink series. Main design line: Berker S.1. For product no.: 8512 11 00, 8512 12 00, 8542 11 00, 8542 12 00, 8502 01 00, 8542 17 00.

Features:

  • additional ETS functions: +6 scenes, 1 push-button control up/down, operating mode on/off, dimming value, light intensity indicator, push-button switch, status indicator, forced control
  • the ability to configure the functions of the transmitter and/or receiver
  • reset function (to factory settings) ;
  • the ability to block the memory of scenes
  • for plasterboard walls

Controls and Indicators:

  • user interfaces can be configured for one- or two-level operation
  • with configuration button and function

LED control:

  • with configuration and function LED
  • socket compatibility LED indicator and mechanism

Connection:

  • integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

  • the possibility of freely configuring the lower and upper service surfaces for 1-fold switching/dimming mechanisms and network mechanisms

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    2
  • Radio transmitter power [mA]
    <10
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.51.20.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,045 0,085 3,500 135,000
Width (m) 0,055 0,085 0,300 0,800
Length (m) 0,035 0,075 0,225 1,050
Depth (m) 0,070 0,085 0,400 1,200
