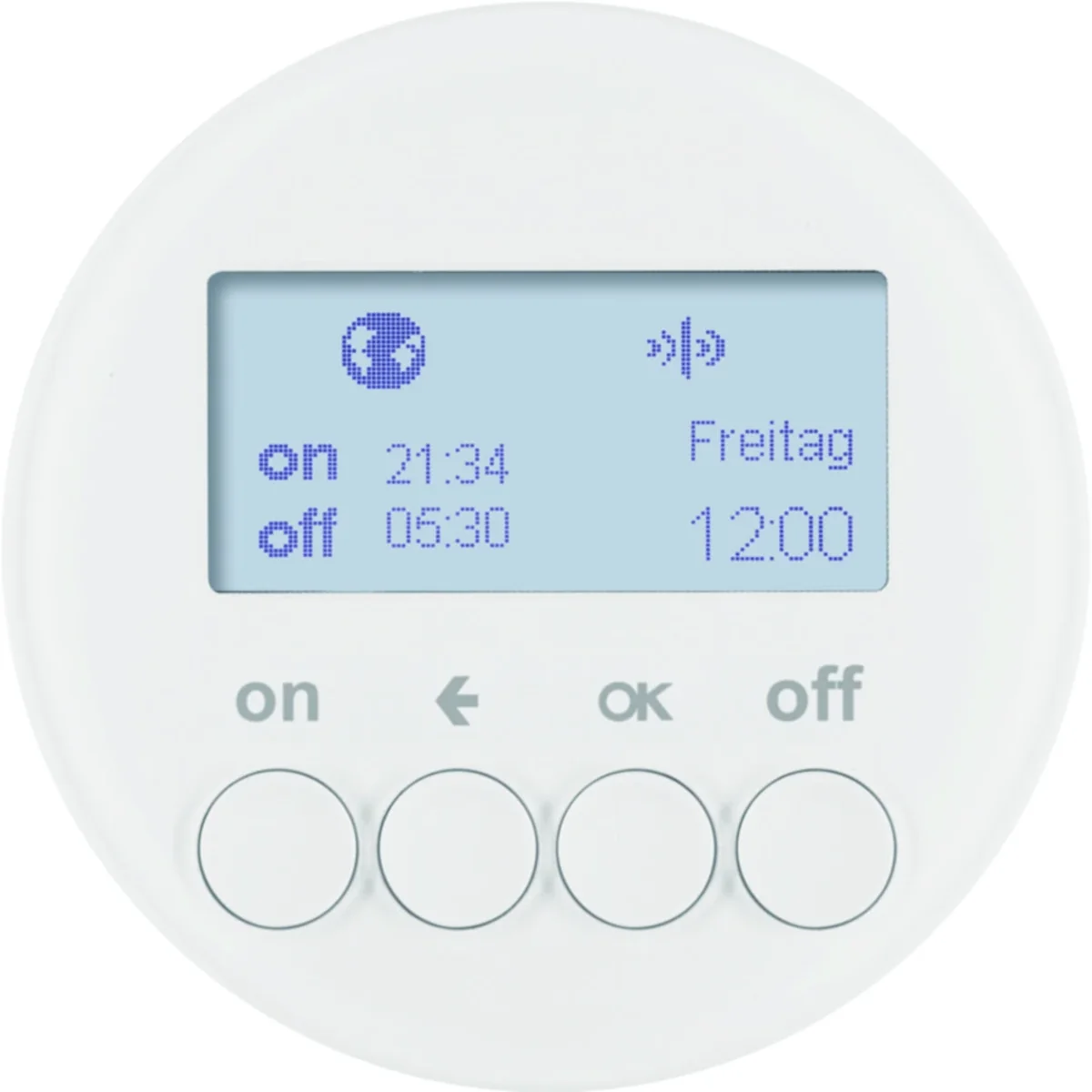

KNX RF QUICKLINK R.1/R.3 Time switch glossy white 85745239

• LCD backlit during operation
• cap/mechanism compatibility indication on display
• adjustable LCD contrast

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

• with automatic winter/summer time changeover (can be disconnected)
• astronomical program for sunrise/sunset changeover with option to enter city/ country and individual adjustment
• commands of standalone programs sent via radio and extensions are not implemented
• holiday program causing accidental selection of switching times in automatic mode

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
