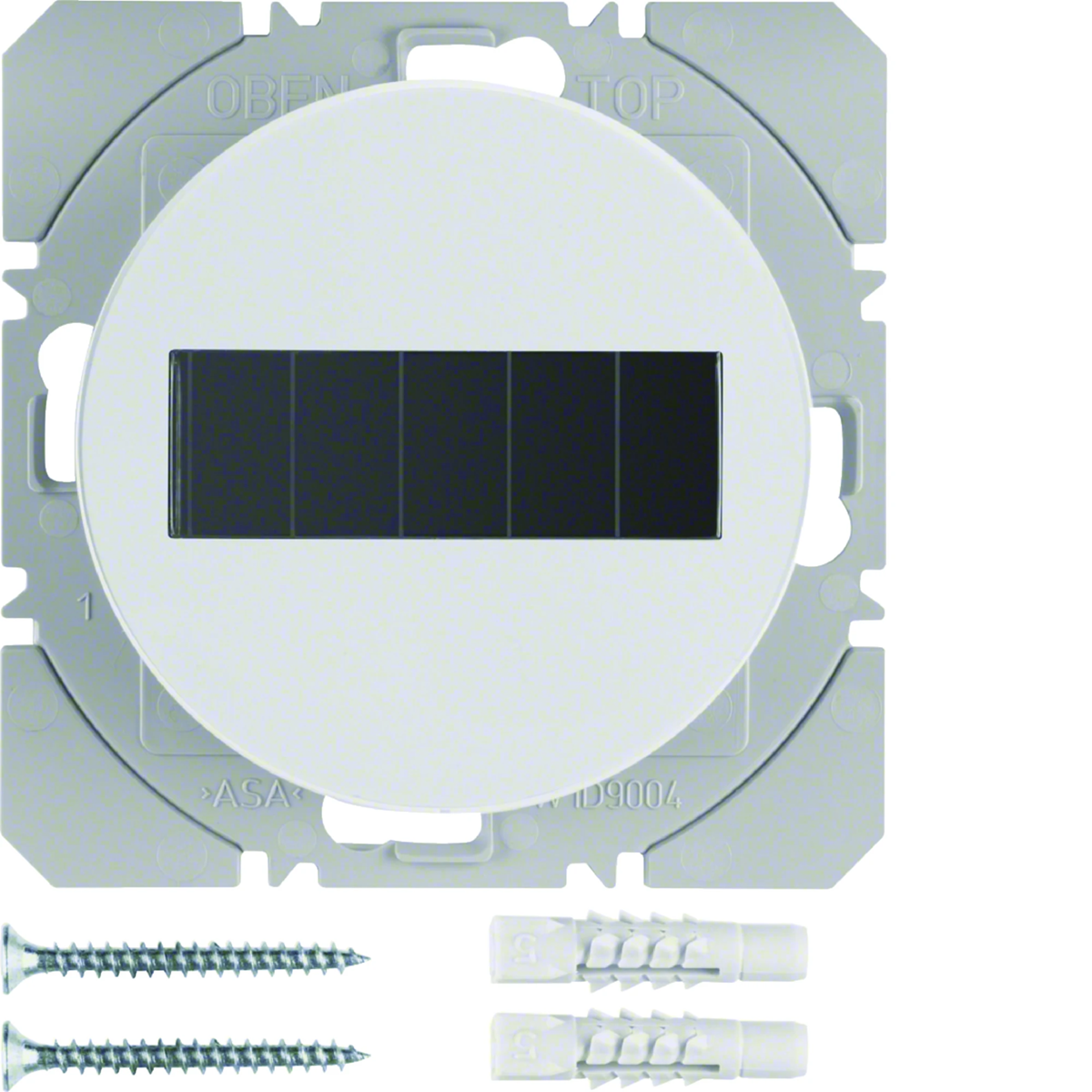

KNX RF QUICKLINK R.1/R.3 Radio button, 1-gang, flat, with solar battery, glossy white 85655139

local index:
AIK077BERK
Catalog No:
85655139
EAN code:
4011334369592
Manufacturer: BERKER
Material: Thermoplastic
Surface: Gloss
Family: KNX RF QUICKLINK
Price:
211,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Radio button 1-gang, flat, with solar battery, KNX RF quicklink series. Main design line: Berker R.1/R.3.

Features:

  • additional ETS features: +6 scenes, work mode on ./off, push-button, status indicator, dimming value
  • reset function (factory setting)
  • for drywall

Controls and Indicators:

  • user interfaces can be configured for one- or two-level operation
  • with configuration button

Voltage

  • Solar power supply

LED control:

  • with configuration LED
  • with red/green/orange send and battery status LEDs

Series characteristics :

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    2
  • Radio transmitter power [mA]
    <10
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • Battery life [years]
    ≈ 5
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • DC operating voltage [V]
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • PKWIU
    26.51.20.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • Model
    Wall-mounted transmitter complete
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Radio frequent bidirectional
    Yes
  • With bus connection
    Yes
  • Number of channels
    2
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,064 0,078 3,597 135,117
Width (m) 0,058 0,092 0,300 0,800
Length (m) 0,032 0,060 0,225 1,050
Depth (m) 0,058 0,105 0,400 1,200
