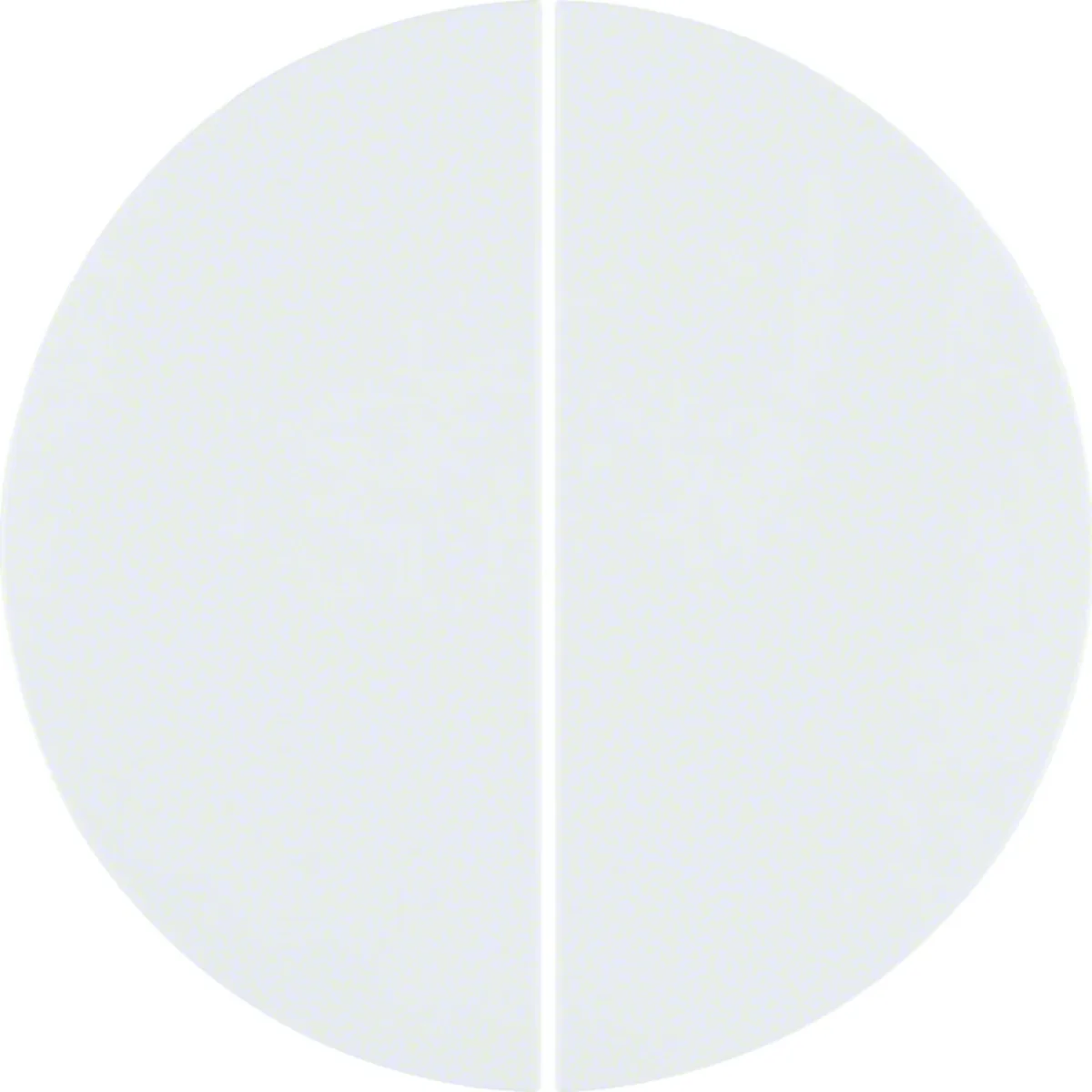

KNX RF QUICKLINK R.1/R.3 Push-button 2-gang glossy white 85146139

Lokaler Index:
AIK032BERK
Katalognummer:
85146139
EAN-Code:
4011334369127
Hersteller: BERKER
Material: Thermoplastic
Surface: Gloss
Family: KNX RF QUICKLINK
Preis:
238,50 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 10 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Double button from the KNX RF quicklink series. Main design line: Berker R.1/R.3/Serie 1930/R.classic.

Features:

  • Additional ETS features: +6 scenes, 1 push-button control up/down, operating mode on/off, dimming value, light intensity indicator, push-button switch, status indicator, forced control
  • possibility of configuring transmitter and/or receiver functions< /li>
  • reset function (to factory settings) ;
  • possibility to disable saving scenes
  • for plasterboard walls

Controls and indicators:

  • configurable user interfaces for one- or two-level operation
  • with configuration and function button

LED control:

  • with configuration and function LED
  • cap and mechanism compatibility LED indicator

Connection:

  • integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

  • possibility of freely configuring the lower and upper service surfaces for 2-fold switching/dimming mechanisms and network mechanisms

Characteristics of the series:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technische Daten

  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    4
  • Radio transmitter power [mA]
    <10
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.51.20.0

Weitere technische Daten

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No

Hersteller-Details

  • Hersteller
    BERKER POLSKA SP. Z O.O.
  • Adresse
    62-035 UL. ŚREDZKA 19
  • Steueridentifikationsnummer
    7781027605

Großpackungen

Eine Art Paket Karton Pakiet Paleta
Menge 1 stk. 1 stk. 36 stk. 1152 stk.
Gewicht (kg) 0,055 0,080 3,145 120,630
Breite (m) 0,057 0,084 0,300 0,800
Länge (m) 0,028 0,070 0,225 1,050
Tiefe (m) 0,057 0,085 0,400 1,200
