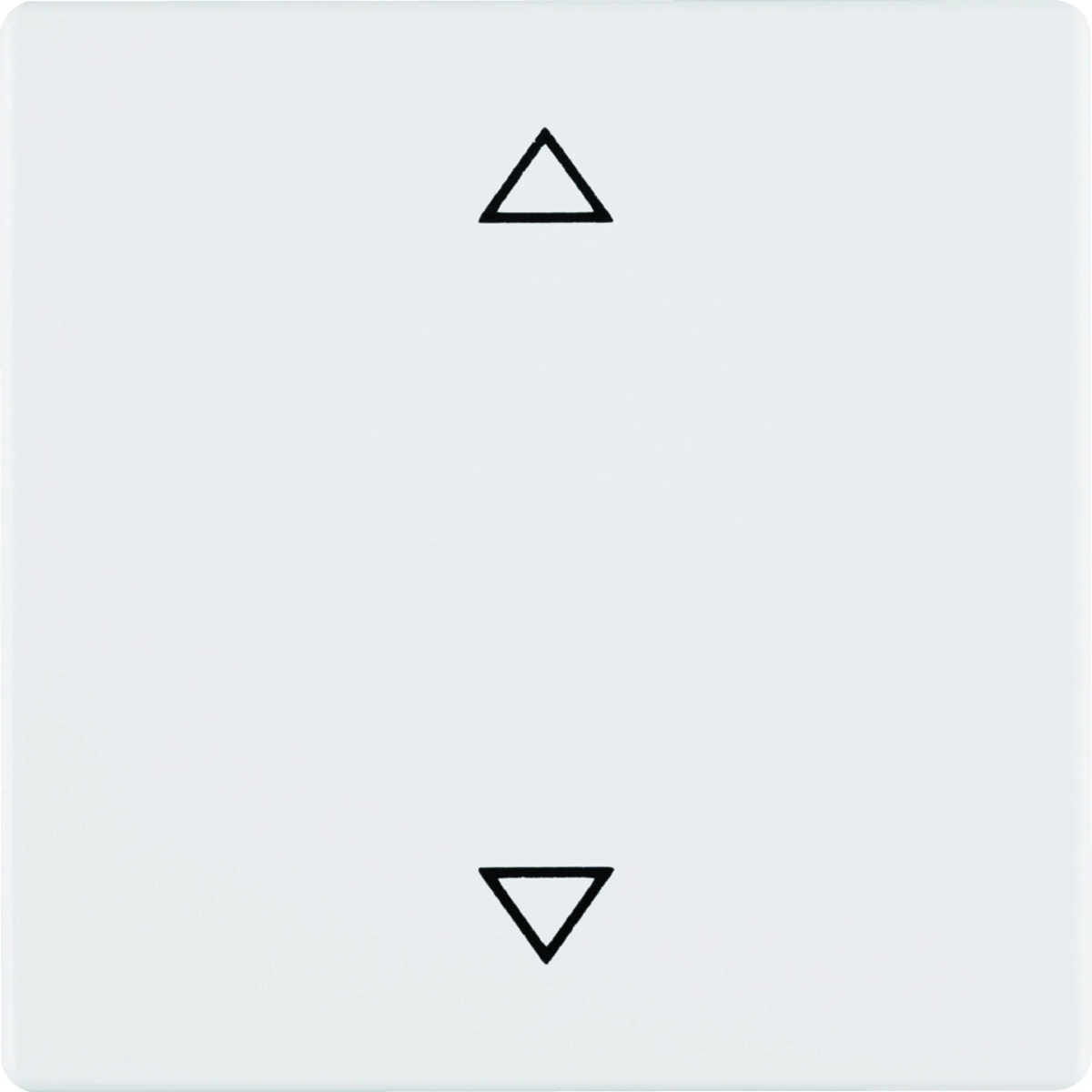

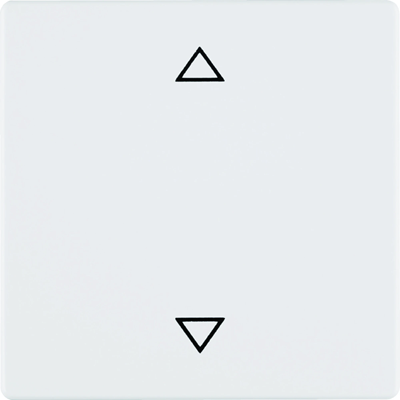

KNX RF QUICKLINK Q.1/Q.3 Blind button for blind controllers, white 85245229

Blind button for roller shutter controllers Berker.Net, KNX RF quicklink series. Main design line: Berker Q.1/Q.3.

Features:

• "party" function, automatic commands, radio commands and commands extensions are not executed (locked)
• possibility of configuring transmitter and/or receiver functions
• memory function enabling automatic execution of the stored lifting and lowering times with position
• reset function (factory settings) ;
• the ability to save the position of the slats for a given scene
• recalling scenes using KNX radio devices
• quicklink functions: blinds, 2 scenes, memory , forced control, pushbutton up/down

Control elements and indicators:

• activation of the "party" function by pressing the button scroll up and down > 20 s
• with configuration and function button

Detection

• protection sun protection and twilight function in combination with a radio illuminance sensor

LED control:

• with red/orange status LED for memory function and party function
• with configuration and function LED
• with control LED for door locking status
• cap compatibility LED and mechanism

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway
< /ul>

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
