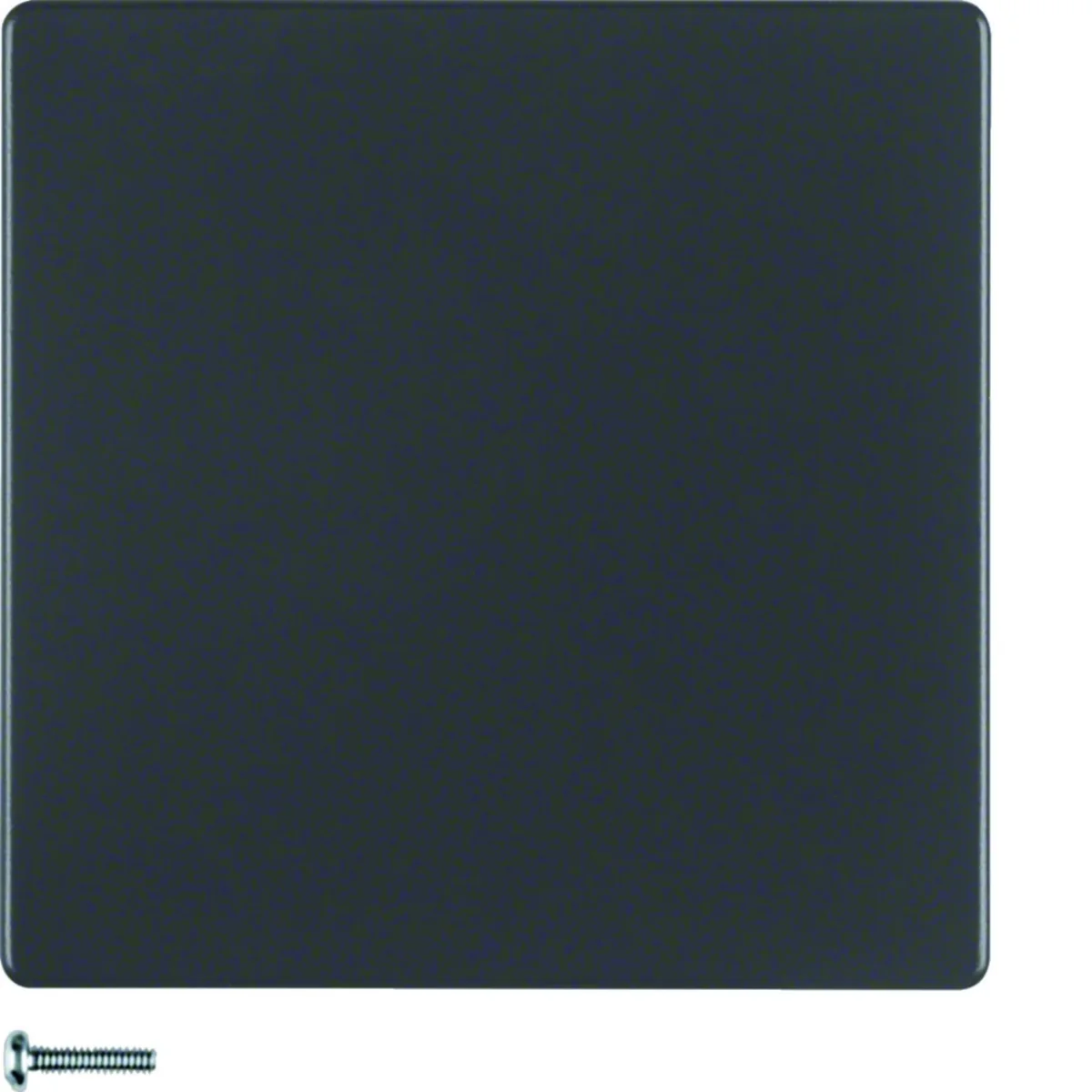

KNX RF QUICKLINK Q.1/Q.3 Anthracite 1-gang button 85145126

local index:
AIK014BERK
Catalog No:
85145126
EAN code:
4011334382478
Manufacturer: BERKER
Material: Thermoplastic
Surface: Velvet
Family: KNX RF QUICKLINK
Price:
171,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single button from the KNX RF quicklink series. Main design line: Berker Q.1/Q.3.

Functions:

  • additional functions ETS: +6 scenes, 1 button control up/down, operating mode on/off, dimming value, illuminance indicator, push-button switch, status indicator, forced control
  • option to configure transmitter and/or receiver functions
  • function reset (to factory settings) ;
  • possibility to block saving scenes
  • for plasterboard walls

Control elements and indicators:

  • the ability to configure user interfaces for one- or two-level operation
  • with a configuration and function button

Control LED:

  • with configuration and function LED
  • cap and mechanism compatibility LED indicator

Connection :

  • integration with the KNX-TP system via the KNX radio network/surface-mounted TP gateway

Settings:< /p>

  • the possibility of freely configuring the lower and upper service surfaces in terms of 1-fold switching/dimming mechanisms and network mechanisms

Series characteristics:

KNX quicklink is the wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    2
  • Radio transmitter power [mA]
    <10
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Surface
    Velvet
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.51.20.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Anthracite
  • Transparent
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,069 0,094 3,649 136,758
Width (m) 0,059 0,084 0,300 0,800
Length (m) 0,029 0,070 0,225 1,050
Depth (m) 0,059 0,085 0,400 1,200
