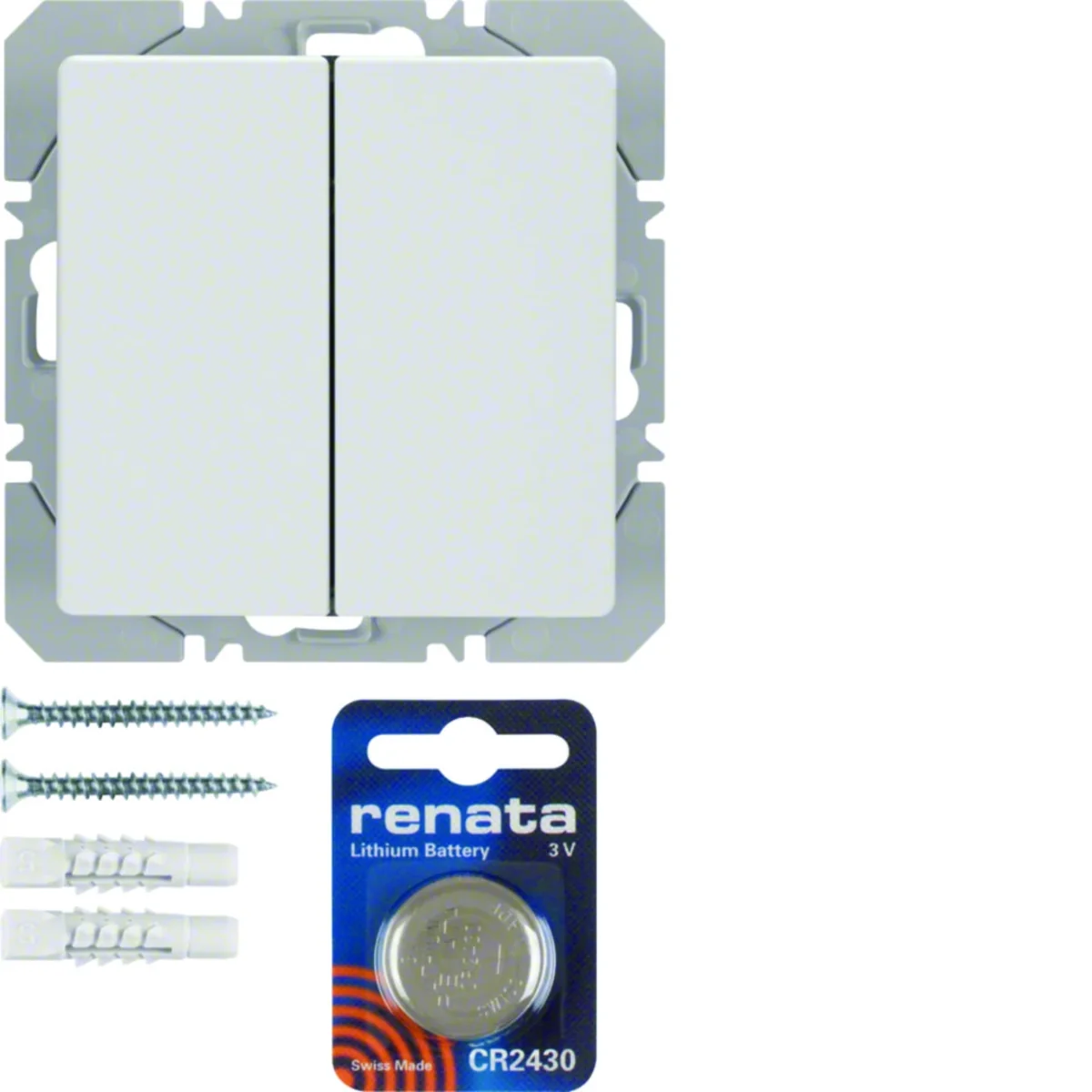

KNX RF QUICKLINK Q.1/Q.3 2-gang flat white radio button 85656229

2-gang flat radio button, KNX RF quicklink series. Main design line: Berker Q.1/Q.3.

Functions:

• additional ETS functions: +6 scenes, work mode on ./off, push-button, status indicator, dimming value
• reset function (factory setting)
• for drywall

Controls and Indicators:

• user interfaces can be configured for one- or two-level operation
• with configuration button

Installation / Mounting:

• for flush surface mounting and combination expansion

LED control:

• with red/green/orange upload and battery status LEDs
• with configuration LED

< strong>Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

• the ability to freely configure the lower and upper service surface

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
