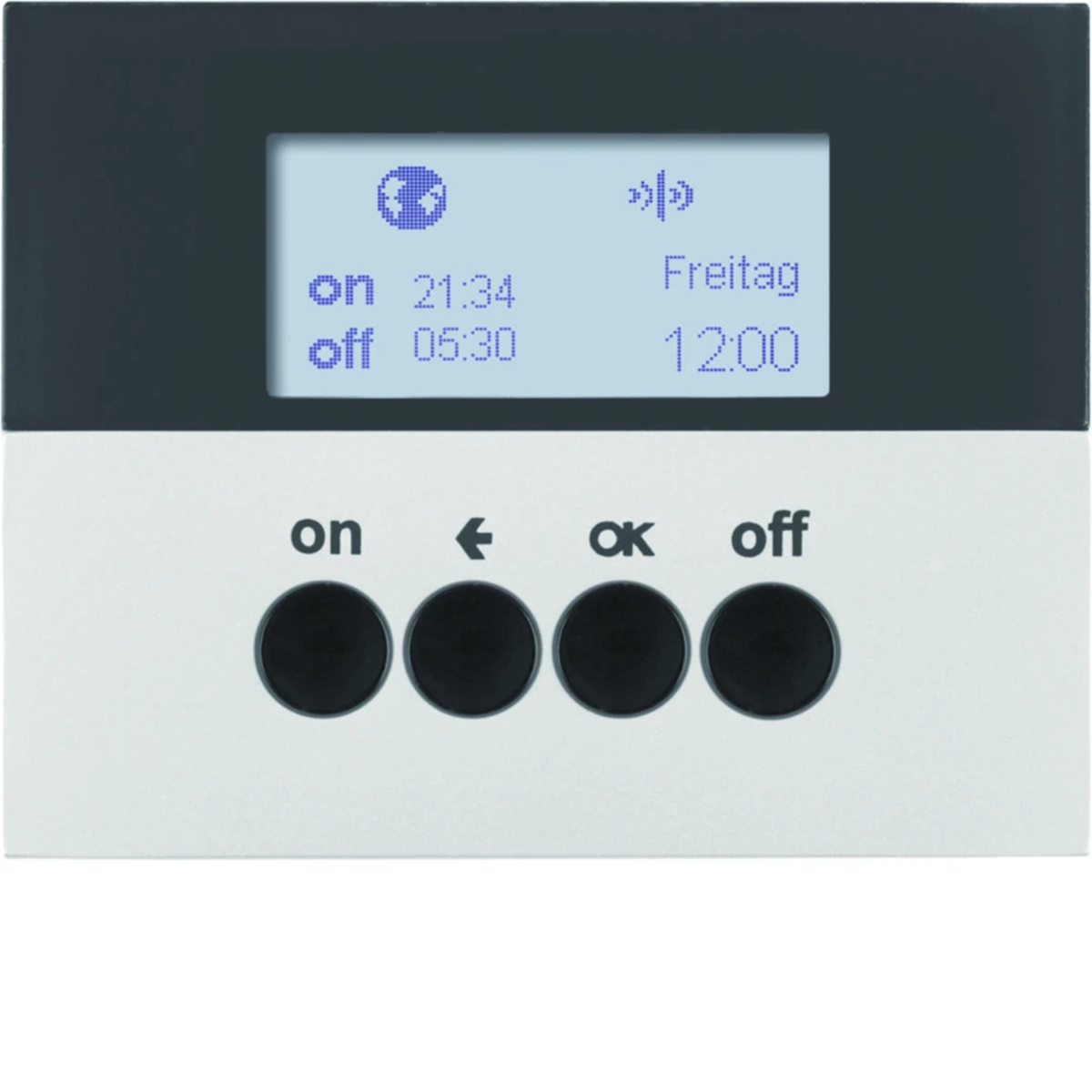

KNX RF QUICKLINK K.5 Lacquered aluminum time switch 85745277

Time switch from the KNX RF quicklink series. Main design line: Berker K.5.

Functions:

• additional ETS functions: +6 scenes, on/off mode. , time-controlled recall of scenes and dimming values, push-button switch, status indicator
• reset function (factory settings)
• sender and/or receiver function configurable
• party function, automatic commands, radio commands and extension commands are not executed (switch lock)
• with button lock ;
• quicklink functions: switching, 2 scenes, time control, button switch (make contact), forced operation
• manual/automatic changeover

Controls and indicators:

< li> LCD backlit during operation
• indication of attachment/mechanism compatibility on the display
• adjustable LCD contrast

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

• with automatic winter/summer time changeover (detachable)
• Astronomy program for sunrise/sunset changeover with city/country input and individual adjustment
• commands of standalone programs sent by radio and from extensions are not implemented
• vacation program causing accidental selection of switching times in automatic mode

Series characteristics:

KNX quicklink is the wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
