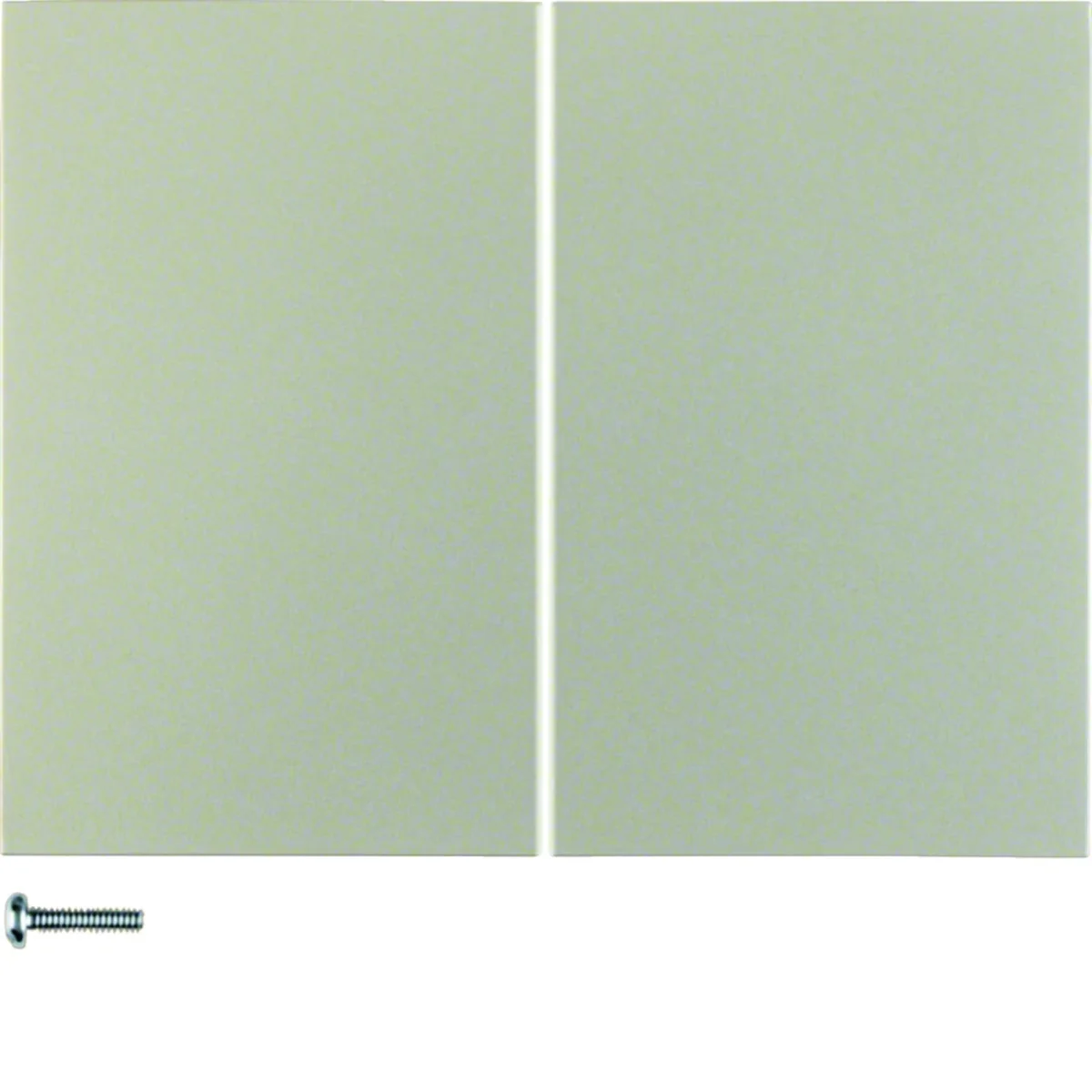

KNX RF QUICKLINK K.5 4-way button, painted steel 85648173

4-way button from the KNX RF quicklink series. Main design line: Berker K.5.

Functions:

• additional ETS functions: +6 scenes, 1 button control up/down, operating mode on/off, dimming value, illuminance indicator, push-button switch, status indicator, forced control
• possibility of freely configuring the function of the upper/lower and left/right buttons area: as a receiver to control the connected load or as a transmitter for remote control of e.g. blinds
• possibility of configuring transmitter and/or receiver functions
• reset function (to factory settings) ;
• possibility of blocking the memory of scenes
• for plasterboard walls

Controls and indicators:

• user interfaces can be configured to one- or two-level operation
• with configuration and function button

LED control:

• with LED Configuration and function LED
• Cap and mechanism compatibility LED

Connection:

• system integration KNX-TP via KNX radio network/TP surface-mounted gateway

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
