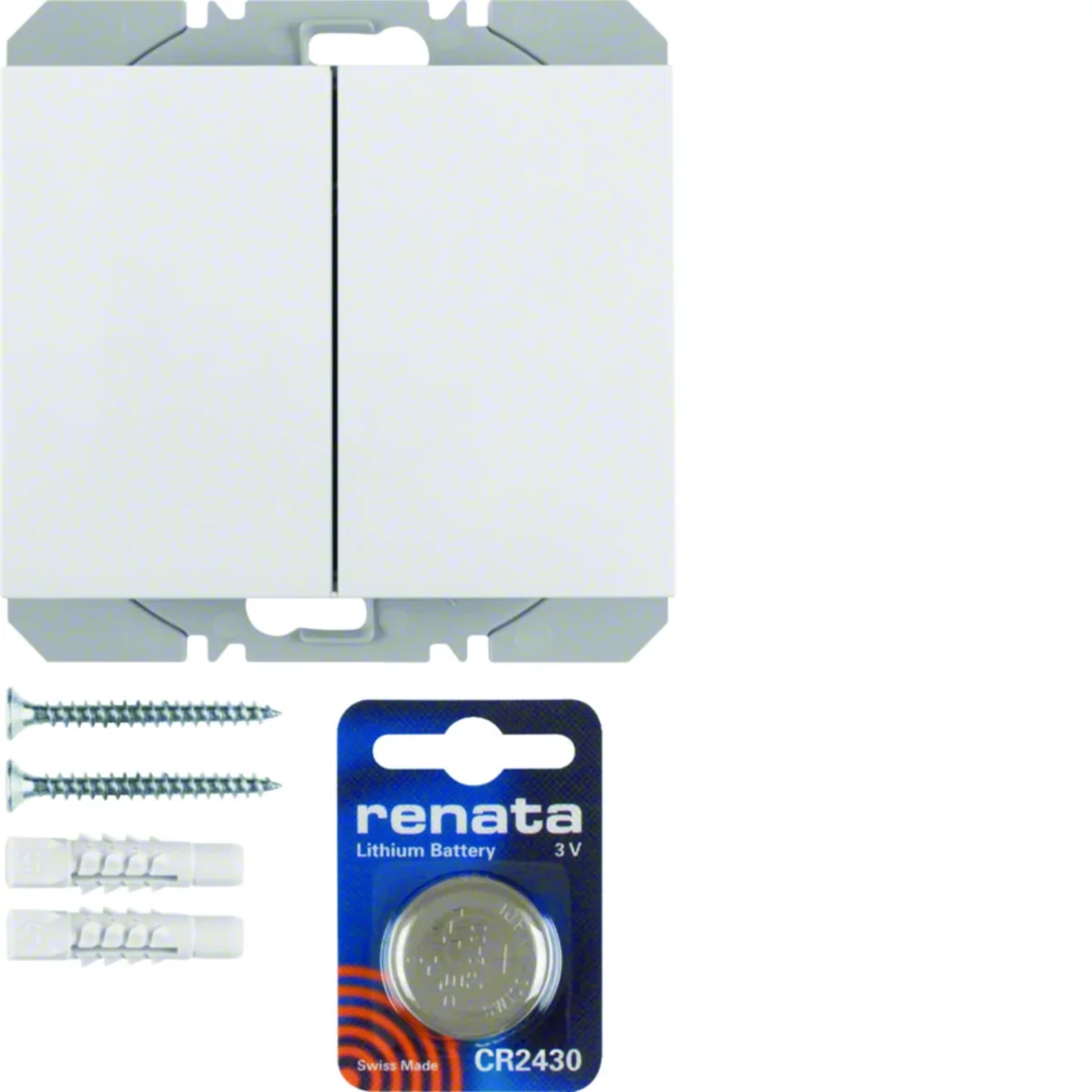

KNX RF QUICKLINK K.1 Radio button, 2-gang flat, white gloss 85656279

Índice local:
AIK315HAGE
Número de catálogo:
85656279
Código EAN:
4011334370741
Fabricante: HAGER
Material: Thermoplastic
Surface: Gloss
Family: KNX RF QUICKLINK
Precio:
1 263,21 zł
gross / uds.
(IVA incluido 23%)
hasta 10 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

2-gang flat radio button, KNX RF quicklink series. Main design line: Berker K.1.

Functions:

  • additional ETS functions: +6 scenes, on/off mode. switch, status indicator, dimming value
  • reset function (factory settings)
  • for drywall

Components controls and indicators:

  • the ability to configure user interfaces for one- or two-level operation
  • with a configuration button

< strong>Installation / Mounting:

  • for flush surface mounting and combination expansion

LED control:

  • with red/green/orange upload and battery status LEDs
  • with configuration LED

Connection< /strong>:

  • integration with the KNX-TP system via the KNX radio network/surface-mounted TP gateway

Settings:

  • the ability to freely configure the lower and upper service surface

Series characteristics:

KNX quicklink is a wireless alternative to intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Datos técnicos

  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    4
  • Radio transmitter power [mW]
    <10
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • Battery life [years]
    ≈ 5
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • DC operating voltage [V]
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • PKWIU
    26.51.20.0

Otros datos técnicos

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Radio frequent bidirectional
    Yes
  • With bus connection
    Yes
  • Number of channels
    4
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Mounting method
    Flush-mounted
  • Model
    Wall-mounted transmitter complete
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 1 uds. 36 uds. 1152 uds.
Peso (kg) 0,102 3,273 124,749
Ancho (m) 0,090 0,300 0,800
Longitud (m) 0,060 0,220 1,050
Profundidad (m) 0,100 0,400 1,200
