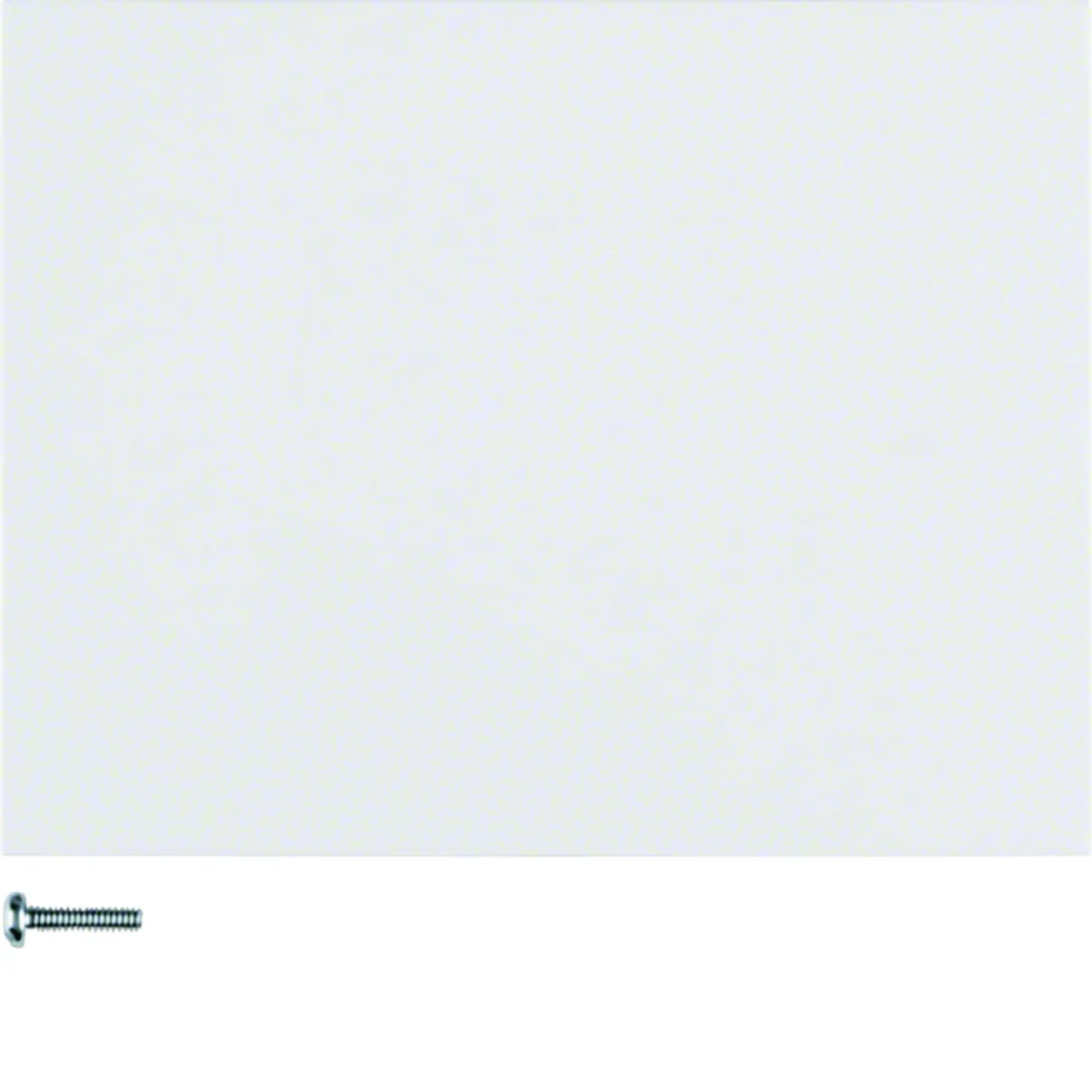

KNX RF QUICKLINK K.1 Button 1-gang glossy white 85145179

Single button from the KNX RF quicklink series. Main design line: Berker K.1.

Functions:

• additional ETS functions: +6 scenes, 1 button control up/down, operating mode on/off, dimming value, illuminance indicator, push-button switch, status indicator, forced control
• possibility of configuring transmitter and/or receiver functions
• reset function (for settings factory-made) ;
• the ability to block the memory of scenes
• for plasterboard walls

Controls and indicators:< /p>

• the ability to configure user interfaces for one- or two-level operation
• with a configuration and function button

LED control:

• with configuration and function LED
• socket and mechanism compatibility LED indicator

Connection :

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
