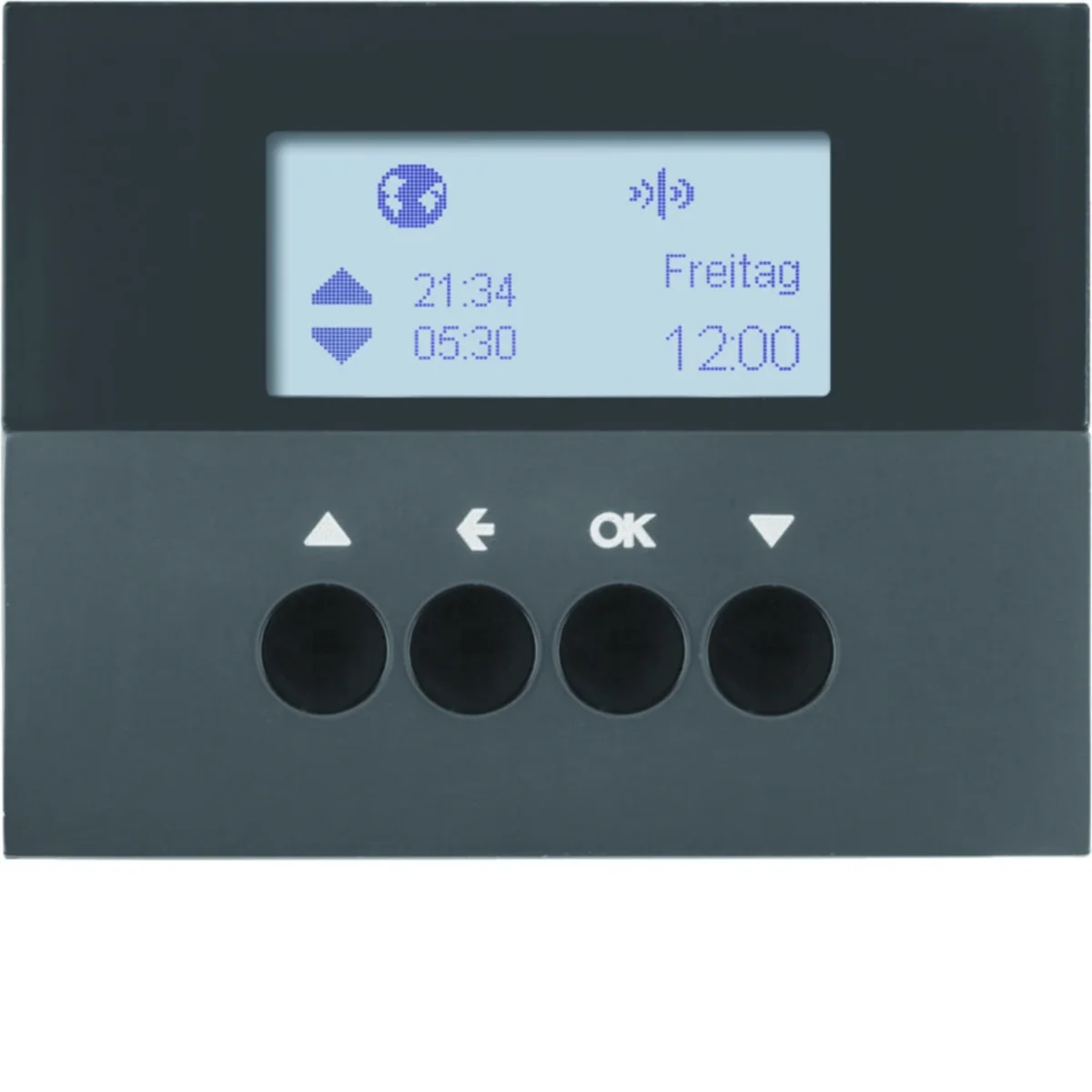

KNX RF QUICKLINK K.1 Blind time switch anthracite matt 85745175

Índice local:
AIK094BERK
Número de catálogo:
85745175
Código EAN:
4011334375609
Fabricante: BERKER
Switching time [s]: < 0.6s
Surface: Matt
Family: KNX RF QUICKLINK
Precio:
264,99 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 10 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

Louver time switch from the KNX RF quicklink series. Main design line: Berker K.1.

Features:

  • Additional ETS features: +6 scenes, work mode, status indicator, 2 x alarm
  • reset function (factory settings)
  • with button lock
  • "party" function, automatic commands, radio and extension commands are not executed (key lock )
  • option to configure the functions of the transmitter and/or receiver;
  • option to remember the position of the slats for a given scene
  • calling scenes using KNX radio devices
  • < li> quicklink functions for including single, group and central control of blinds/roller shutters into the system
  • quicklink functions: blinds, 2 scenes, forced control, up/down button switch
  • switching over to manual mode /automatic

Controls and indicators:

  • indication of attachment/mechanism compatibility on display
  • adjustable LCD contrast
  • LCD backlit during operation

Detection:

  • sun protection and function twilight sensor in combination with a radio illuminance sensor

Connection:

  • integration with the KNX-TP system via the KNX radio network/gateway TP

Settings:

  • with automatic winter/summer time changeover (can be disconnected)
  • astronomical program for switching at sunrise/sunset with the possibility of entering the city/country and individual adaptation
  • commands of standalone programs sent via radio and extensions are not implemented
  • vacation program causing random selection travel times in automatic mode

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Datos técnicos

  • Switching time [s]
    < 0.6s
  • Family
    KNX RF QUICKLINK
  • Operating temperature range [°C]
    from -5 to 45
  • Number of radio channels
    1
  • Minimum slat adjustment time [ms]
    250
  • Radio protocol
    KNX
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Surface
    Matt
  • Level of security
    IP20
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio transmitter power [mA]
    <10
  • Power reserve [h]
    24
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.52.24.0

Otros datos técnicos

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Weekly program
    Yes
  • Astro program
    Yes
  • Width in number of modular spacings
    0
  • Number of channels
    2
  • Presence simulation
    No
  • Radio-controlled (DCF77)
    No
  • With bus connection
    Yes
  • Days off programmable
    No
  • Autonomy
    0 h
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Daily program
    Yes
  • Annual program
    No
  • Mounting method
    Flush-mounted
  • External programming
    Yes
  • Number of outputs
    1
  • Summer-/winter switchover
    Yes
  • GPS (global positioning system)
    No
  • With memory card
    No
  • Sub-clocks controllable over bus-system
    No
  • Degree of protection (IP)
    IP20

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Pakiet Paleta
Cantidad 1 uds. 1 uds. 36 uds. 1152 uds.
Peso (kg) 0,067 0,092 3,577 134,454
Ancho (m) 0,055 0,084 0,300 0,800
Longitud (m) 0,030 0,070 0,225 1,050
Profundidad (m) 0,070 0,085 0,400 1,200
