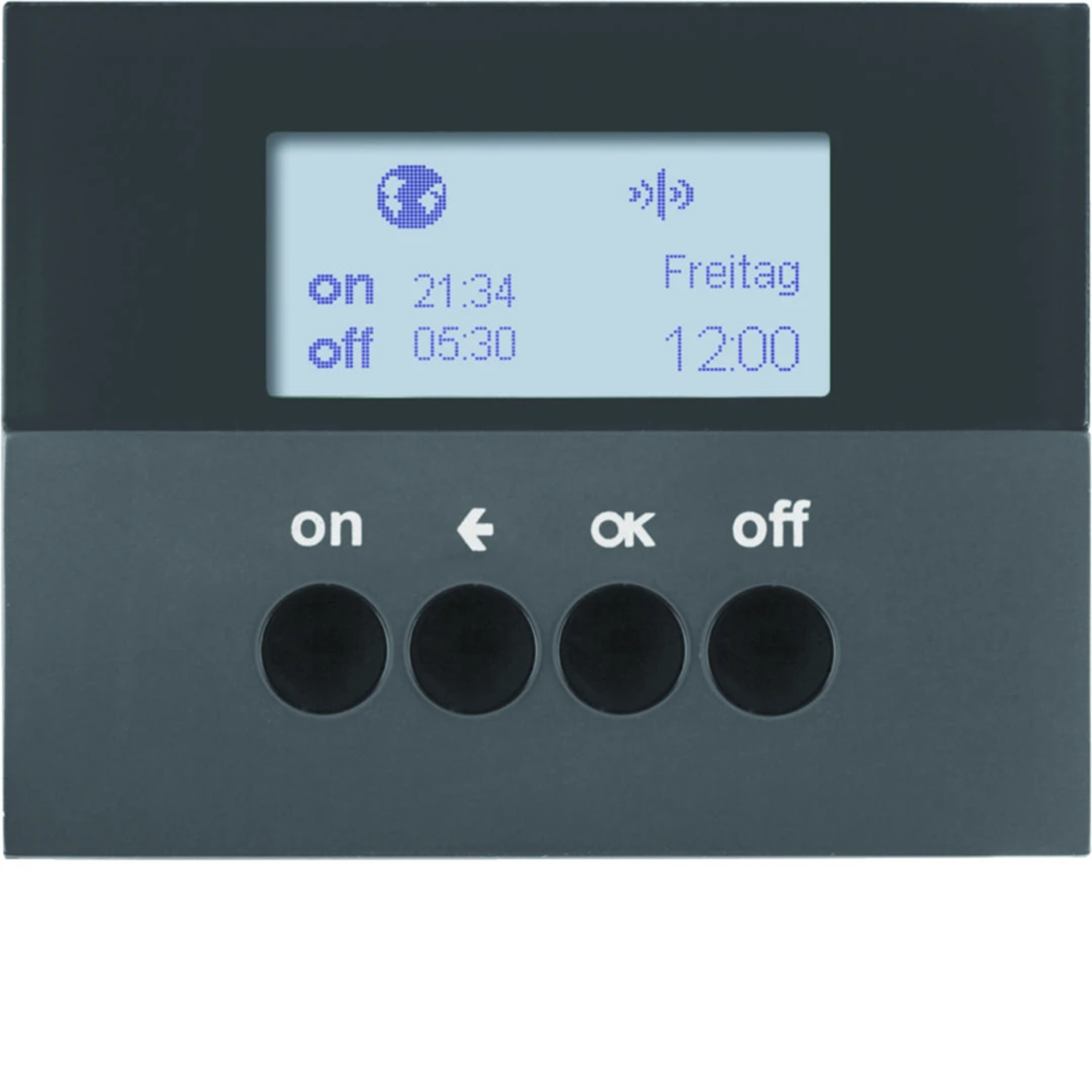

KNX RF QUICKLINK K.1 Anthracite matte time switch 85745275

local index:
AIK108BERK
Catalog No:
85745275
EAN code:
4011334375517
Manufacturer: BERKER
Surface: Matt
Family: KNX RF QUICKLINK
Level of security: IP20
Price:
265,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time switch from the KNX RF quicklink series. Main design line: Berker K.1.

Functions:

  • additional ETS functions: +6 scenes, on/off mode. , time-controlled recall of scenes and dimming values, push-button switch, status indicator
  • reset function (factory settings)
  • sender and/or receiver function configurable
  • party function, automatic commands, radio commands and extension commands are not executed (switch lock)
  • with button lock ;
  • quicklink functions: switching, 2 scenes, time control, button switch (make contact), forced operation
  • manual/automatic changeover

Controls and indicators:

    < li> LCD backlit during operation
  • indication of attachment/mechanism compatibility on the display
  • adjustable LCD contrast

Connection:

  • integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

  • with automatic winter/summer time changeover (detachable)
  • Astronomy program for sunrise/sunset changeover with city/country input and individual adjustment
  • commands of standalone programs sent by radio and from extensions are not implemented
  • vacation program causing accidental selection of switching times in automatic mode

Series characteristics:

KNX quicklink is the wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Surface
    Matt
  • Level of security
    IP20
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio protocol
    KNX
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Family
    KNX RF QUICKLINK
  • Operating temperature range [°C]
    from -5 to 45
  • Number of radio channels
    1
  • Radio transmitter power [mA]
    <10
  • Power reserve [h]
    24
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.52.24.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Weekly program
    Yes
  • Astro program
    Yes
  • Width in number of modular spacings
    0
  • Number of channels
    1
  • Presence simulation
    No
  • Radio-controlled (DCF77)
    No
  • With bus connection
    Yes
  • Days off programmable
    No
  • Autonomy
    0 h
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Daily program
    Yes
  • Annual program
    No
  • Mounting method
    Flush-mounted
  • External programming
    Yes
  • Number of outputs
    1
  • Summer-/winter switchover
    Yes
  • GPS (global positioning system)
    No
  • With memory card
    No
  • Sub-clocks controllable over bus-system
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paleta Karton Pakiet
Quantity 1152 pcs. 1 pcs. 1 pcs. 36 pcs.
Weight (kg) 161,400 0,066 0,110 4,325
Width (m) 0,800 0,055 0,084 0,300
Length (m) 1,050 0,030 0,070 0,225
Depth (m) 1,200 0,071 0,085 0,400
