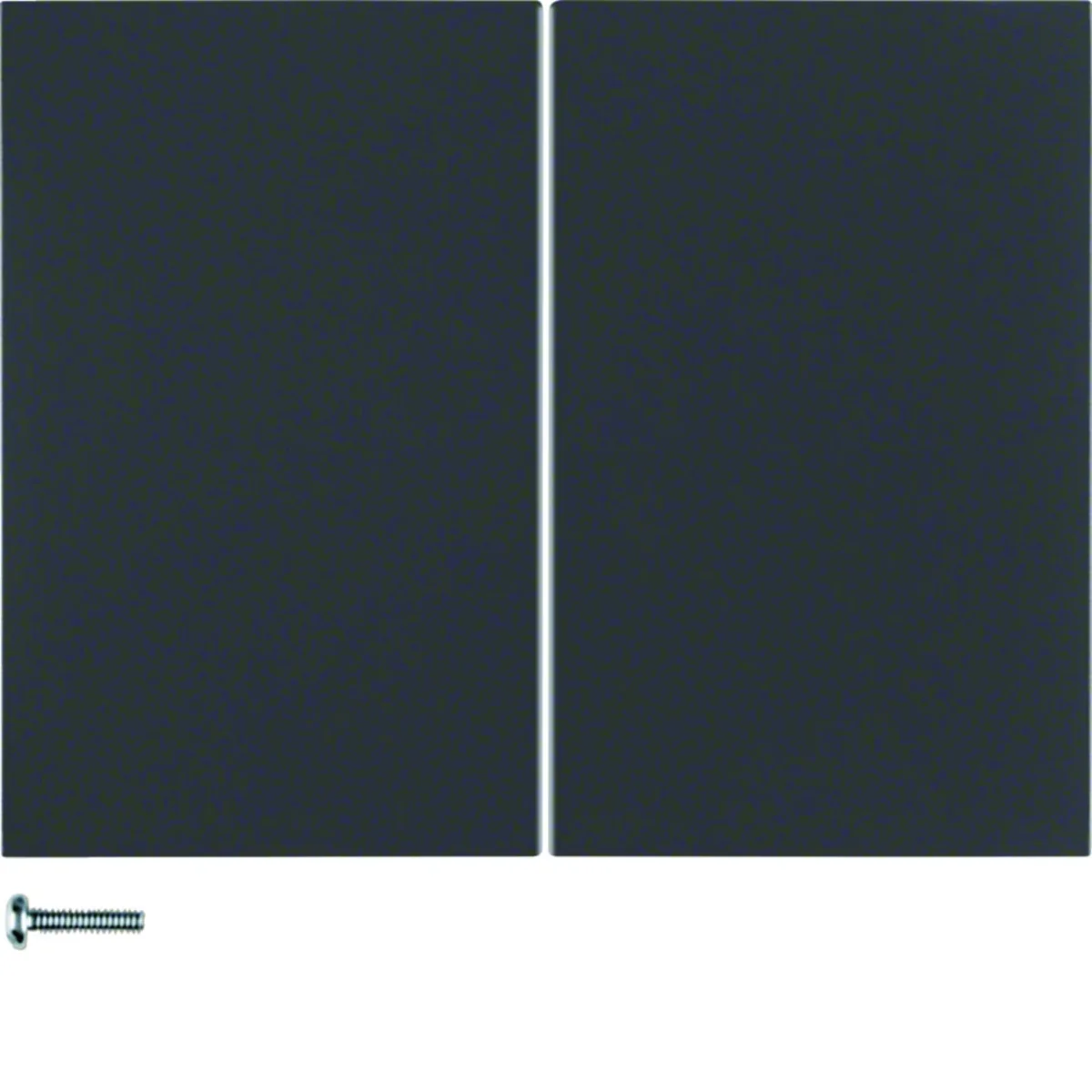

KNX RF QUICKLINK K.1 Anthracite matte 2-gang button 85146175

local index:
AIK034BERK
Catalog No:
85146175
EAN code:
4011334369080
Manufacturer: BERKER
Material: Thermoplastic
Surface: Matt
Family: KNX RF QUICKLINK
Price:
225,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double button from the KNX RF quicklink series. Main design line: Berker K.1.

Functions:

  • additional ETS functions: +6 scenes, 1 button control up/down, operating mode on/off, dimming value, illuminance indicator, push-button switch, status indicator, forced control
  • possibility of configuring transmitter and/or receiver functions
  • reset function (for settings factory-made) ;
  • possibility of blocking the memory of scenes
  • for plasterboard walls

Controls and indicators:< /p>

  • the ability to configure user interfaces for one- or two-level operation
  • with a configuration and function button

LED control:

  • with configuration and function LED
  • socket and mechanism compatibility LED indicator

Connection :

  • integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Settings:

< ul>
  • the ability to freely configure the lower and upper service surface for 2-fold switching/dimming mechanisms and network mechanisms
  • Series characteristics:

    KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

    • installation in places where cable installation is not possible (e.g. glass walls),
    • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
    • the ability to control electrical receivers using remote controls,
    • the ability to create light scenes and group and central control functions.

    Technical data

    • Material
      Thermoplastic
    • Family
      KNX RF QUICKLINK
    • Radio transmitter/receiver frequency [MHz]
      868.3
    • Number of radio channels
      4
    • Radio transmitter power [mA]
      <10
    • Relative humidity (no condensation) [%]
      0 - 65 (non-condensing)
    • Radio transmitter range (in open area) [m]
      100
    • Surface
      Matt
    • Operating temperature range [°C]
      from -5 to 45
    • Receiver category
      2
    • Number of quicklinks
      up to 20 transmitters/receivers
    • Radio protocol
      KNX
    • Range of the radio transmitter (in the building) [m]
      thirty
    • PKWIU
      26.51.20.0

    Other technical data

    • Bus system KNX
      No
    • Bus system radio frequent
      No
    • Bus system Powernet
      No
    • Radio frequent bidirectional
      Yes
    • Material quality
      Thermoplastic
    • Surface finishing
      Matt
    • RAL-number (similar)
      7021
    • Bus system KNX-RF (Radio Frequent)
      Yes
    • Bus system LON
      No
    • Other bus systems
      None
    • Material
      Plastic
    • Surface protection
      Untreated
    • Colour
      Anthracite
    • Transparent
      No

    Bulk packaging

    A kind of package Karton Pakiet Paleta
    Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
    Weight (kg) 0,045 0,085 3,500 135,000
    Width (m) 0,055 0,090 0,300 0,800
    Length (m) 0,035 0,075 0,225 1,050
    Depth (m) 0,070 0,090 0,400 1,200
