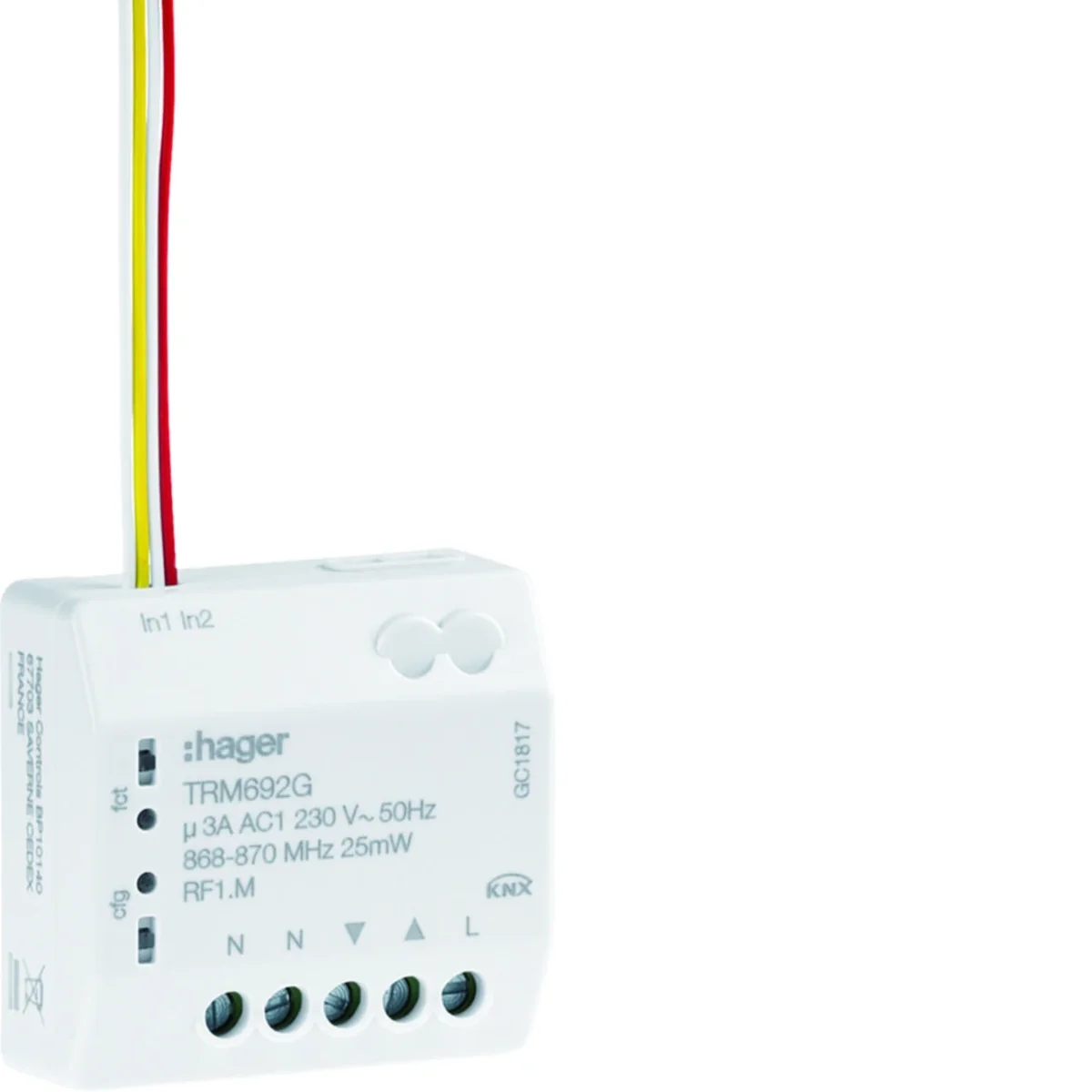

KNX RF quicklink blind controller 1-fold + potential-free input 2-fold TRM692G
local index:
AIK075HAGE
Catalog No:
TRM692G
EAN code:
3250615989031
Price:
120,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX RF quicklink blind controller 1-fold + potential-free input 2-fold
Technical data
-
Switching time [s]<0.6
-
Connection typeWith a screw
-
Receiver category2
-
AC supply voltage [V]230
-
Radio protocolKNX
-
Manual controlYes
-
storage temperature [°C]from -20 to 70
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Conductor cross-section (wire) [mm²]0.5 - 2.5
-
power loss [W]0.45
-
Operating temperature range [°C]from -10 to 50
-
Number of quicklinksup to 20 transmitters/receivers
-
AC operating voltage [V]230
-
Connection typeWith screw-elevator clamps
-
BeaconYes
-
Supply voltage typeAC
-
Wire cross-section (cord) [mm²]0.5 - 1.5
-
PKWIU26.51.20.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentYes
-
Bus system PowernetNo
-
Radio frequent bidirectionalYes
-
Width in number of modular spacings0
-
Bus module detachableNo
-
With LED indicationYes
-
Switching current (resistive)3 A
-
Max. number of venetian-blind outputs1
-
Type of currentAC
-
Min. depth of built-in installation box40 mm
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
With bus connectionYes
-
Local operation/hand operationYes
-
Number of inputs2
-
Max. switching power690 W
-
With switch functionNo
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,029 | 0,095 | 6,045 | 168,080 |
| Width (m) | 0,020 | 0,080 | 0,310 | 0,800 |
| Length (m) | 0,040 | 0,040 | 0,215 | 1,050 |
| Depth (m) | 0,040 | 0,090 | 0,365 | 1,200 |
