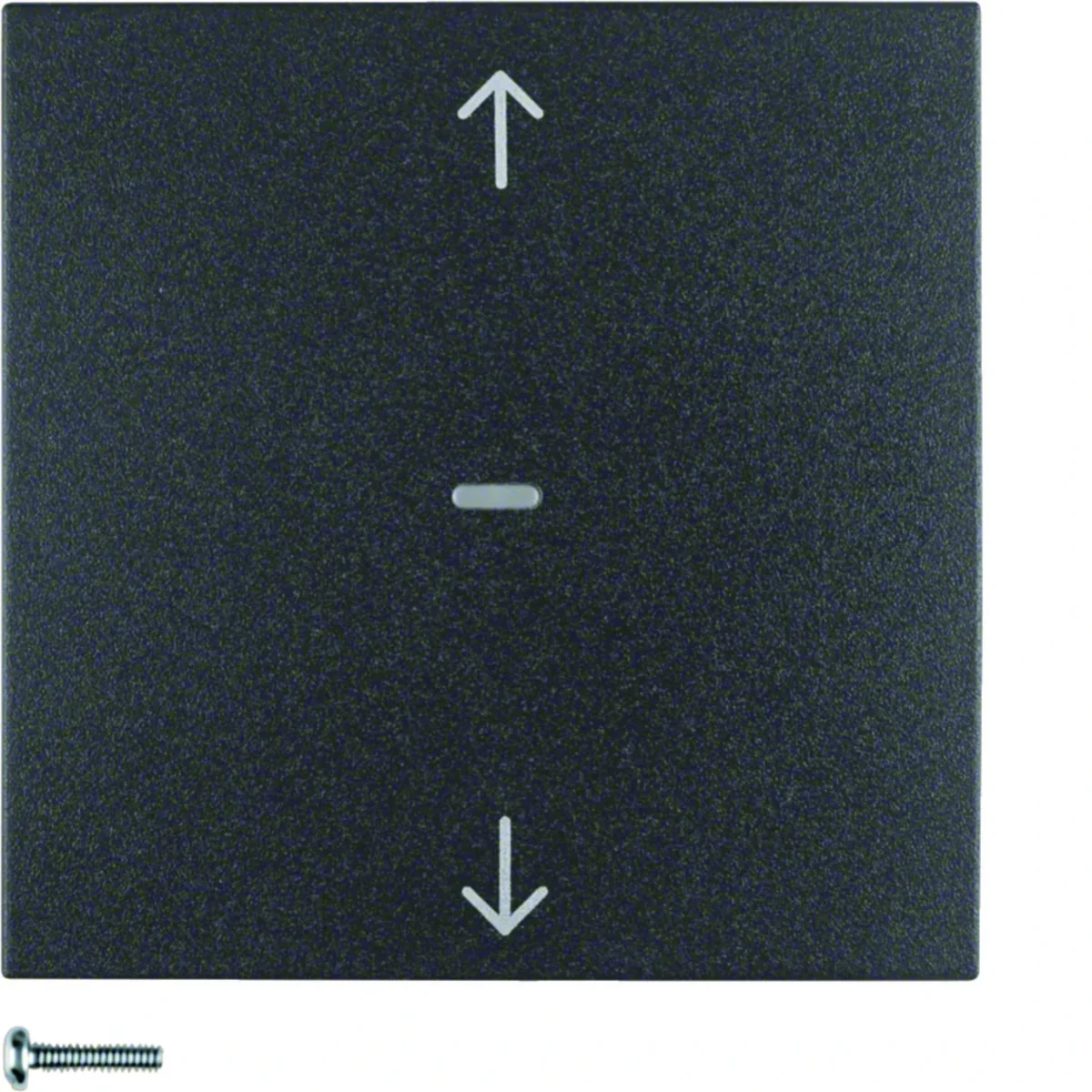

KNX RF QUICKLINK B.KWADRAT/S.1/B.3/B.7 Blind button for blind controller and power supply mechanism anthracite 85245285

local index:
AIK053BERK
Catalog No:
85245285
EAN code:
4011334481751
Manufacturer: BERKER
Switching time [s]: < 0.6s
Material: Thermoplastic
Surface: Matt
Price:
194,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Blind button for blind controller and Berker.Net power supply mechanism, KNX RF quicklink series. Main design line: Berker B.Kwadrat/S.1/B.3/B.7.

Functions:

  • party function ", automatic commands, radio commands and extension commands are not executed (block)
  • possibility of configuring the transmitter and/or receiver functions
  • memory function enabling automatic execution of the stored lifting and lowering times with the position< /li>
  • reset function (to factory settings) ;
  • ability to save the position of the slats for a given scene
  • triggering scenes using KNX radio devices
  • functions quicklink: blinds, 2 scenes, memory, forced control, push button up/down

Controls and indicators:

  • activation of the "party" function by pressing the scroll button up and down > 20 s
  • with configuration and function button

Detection

  • sun protection and twilight function in combination with a radio illuminance sensor

LED control:

  • with red/orange status LED for memory and party functions
  • with configuration and function LED
  • with status LED for door lock protection
  • cap and mechanism compatibility LED indicator

Connection:

  • integration with the KNX-TP system via the KNX radio network/ TP surface-mounted gate

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Switching time [s]
    < 0.6s
  • Surface
    Matt
  • Operating temperature range [°C]
    from -5 to 45
  • Number of radio channels
    1
  • Minimum slat adjustment time [ms]
    150
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.51.20.0
  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio transmitter power [mA]
    <10
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    7021
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Anthracite
  • Transparent
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,067 0,092 3,577 134,454
Width (m) 0,056 0,084 0,300 0,800
Length (m) 0,032 0,070 0,225 1,050
Depth (m) 0,056 0,085 0,400 1,200
