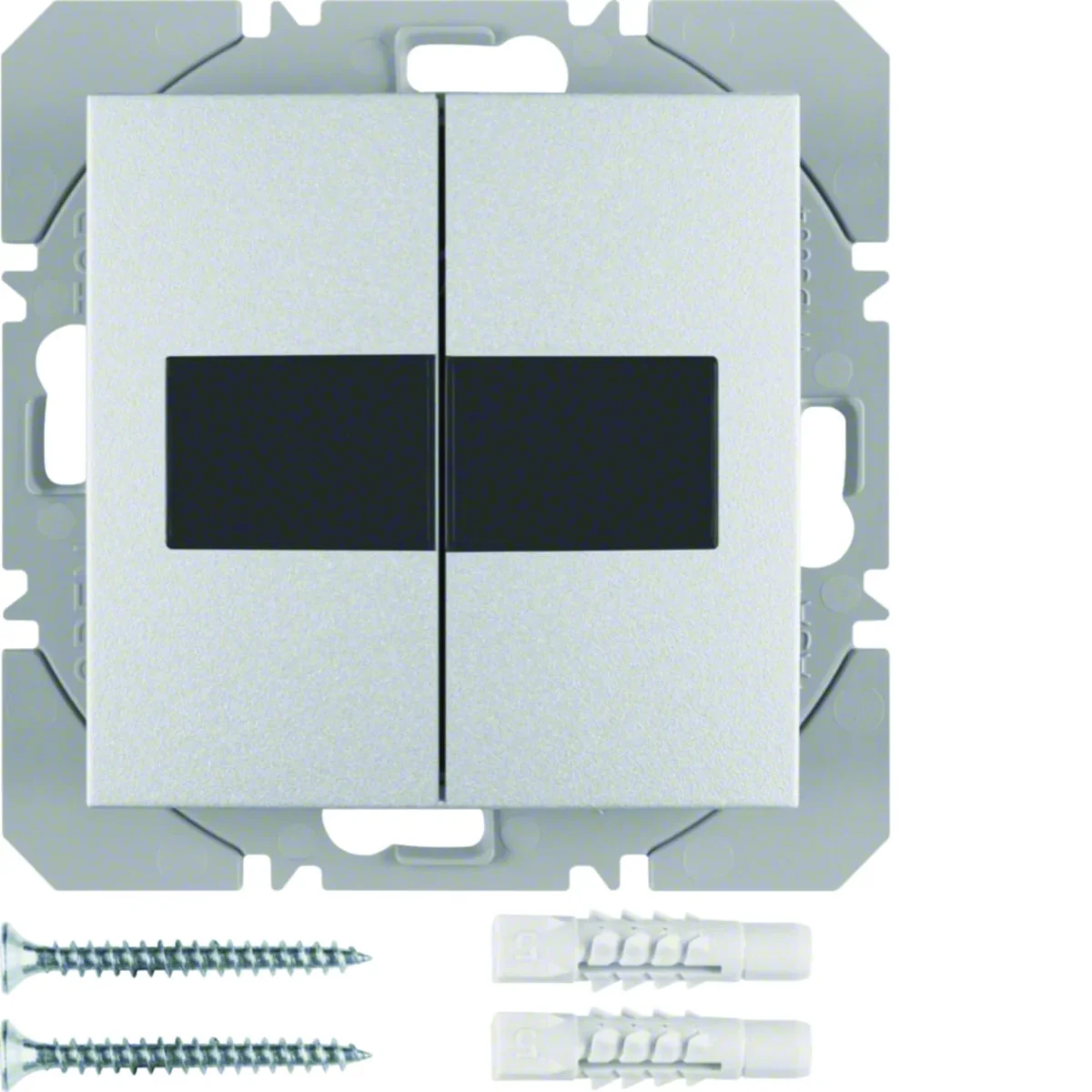

KNX RF QUICKLINK B.KWADRAT/B.3/B.7 Flat push-button, 2-gang, with solar battery, matt aluminum 85656183

Push button 2-gang, flat, with solar battery, KNX RF quicklink series. Main design line: Berker B.Kwadrat/B.3/B.7.

Features:

• Additional ETS features: +6 scenes , operating mode on/off, push-button, status indicator, dimming value
• reset function (factory settings)
for plasterboard walls

Controls and Indicators:

• user interfaces can be configured for one- or two-level operation
• with configuration button

Voltage

• Solar power supply

LED control:

• with configuration LED
• with red/green/orange LEDs for upload and battery status

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
