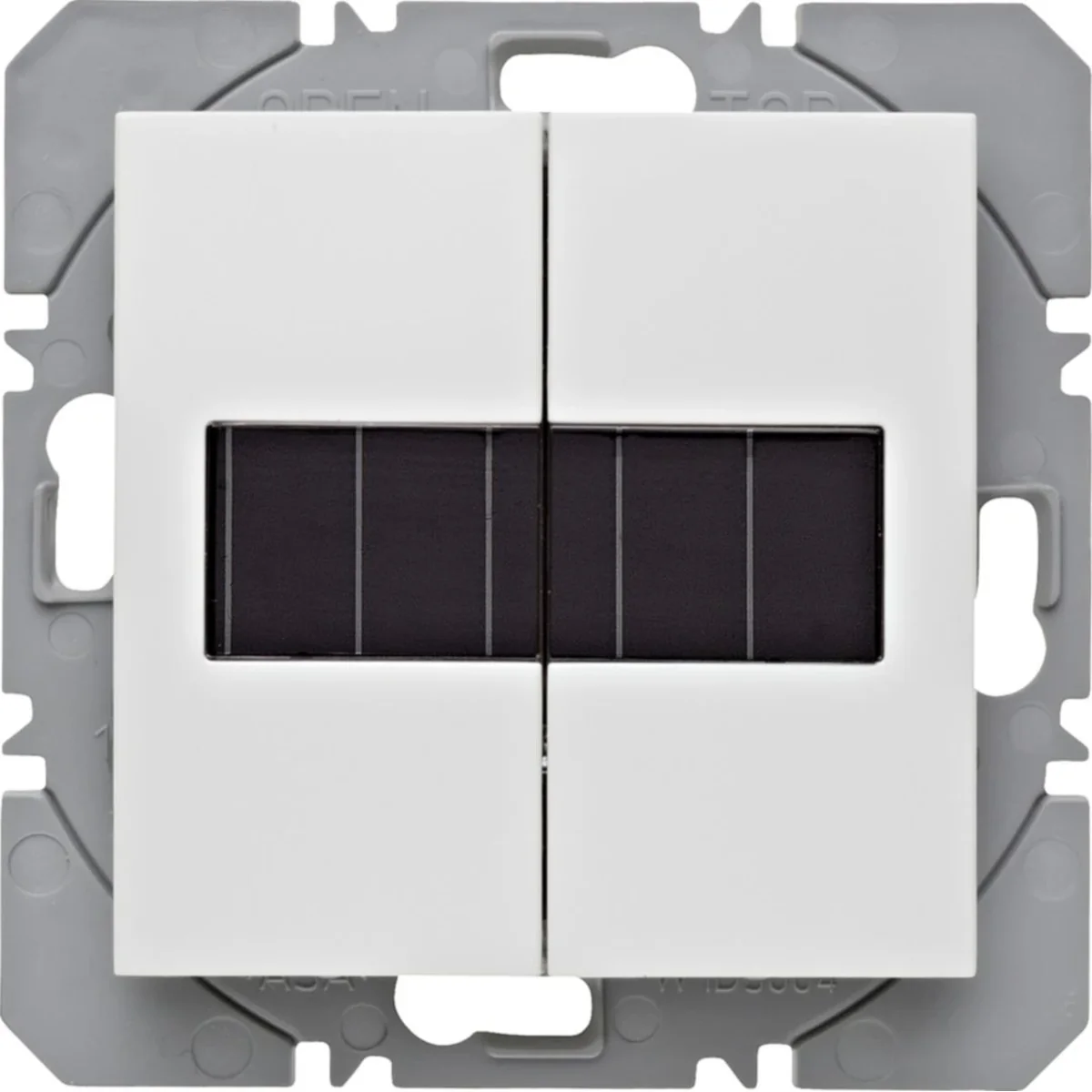

KNX RF QUICKLINK B.KWADRAT/B.3/B.7 Flat push-button, 2-gang, with solar battery, glossy white 85656189

Index local:
AIK087BERK
Numéro de catalogue:
85656189
Code EAN:
4011334369622
Producteur: BERKER
Material: Thermoplastic
Surface: Gloss
Family: KNX RF QUICKLINK
Prix:
214,75 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 10 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Push button 2-gang, flat, with solar battery, KNX RF quicklink series. Main design line: Berker B.Kwadrat/B.3/B.7.

Features:

  • Additional ETS features: +6 scenes , on/off operating mode, push-button switch, status indicator, dimming value
  • reset function (factory settings)
  • for drywall

Controls and Indicators:

  • user interfaces can be configured for one- or two-level operation
  • with configuration button

Voltage

  • powered by solar cells

LED control:

  • with configuration LED
  • with red/green/orange LEDs for sending and battery status

< strong>Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Données techniques

  • Material
    Thermoplastic
  • Family
    KNX RF QUICKLINK
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of radio channels
    4
  • Radio transmitter power [mA]
    <10
  • Radio protocol
    KNX
  • Range of the radio transmitter (in the building) [m]
    thirty
  • Battery life [years]
    ≈ 5
  • Surface
    Gloss
  • Operating temperature range [°C]
    from -5 to 45
  • Receiver category
    2
  • Number of quicklinks
    up to 20 transmitters/receivers
  • DC operating voltage [V]
    3
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • PKWIU
    26.51.20.0

Autres données techniques

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • Model
    Wall-mounted transmitter complete
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Radio frequent bidirectional
    Yes
  • With bus connection
    Yes
  • Number of channels
    4
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta
Quantité 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
poids (kg) 0,055 0,095 3,790 146,280
Largeur (m) 0,071 0,095 0,300 0,800
Longueur (m) 0,015 0,065 0,225 1,050
Profondeur (m) 0,071 0,105 0,400 1,200
