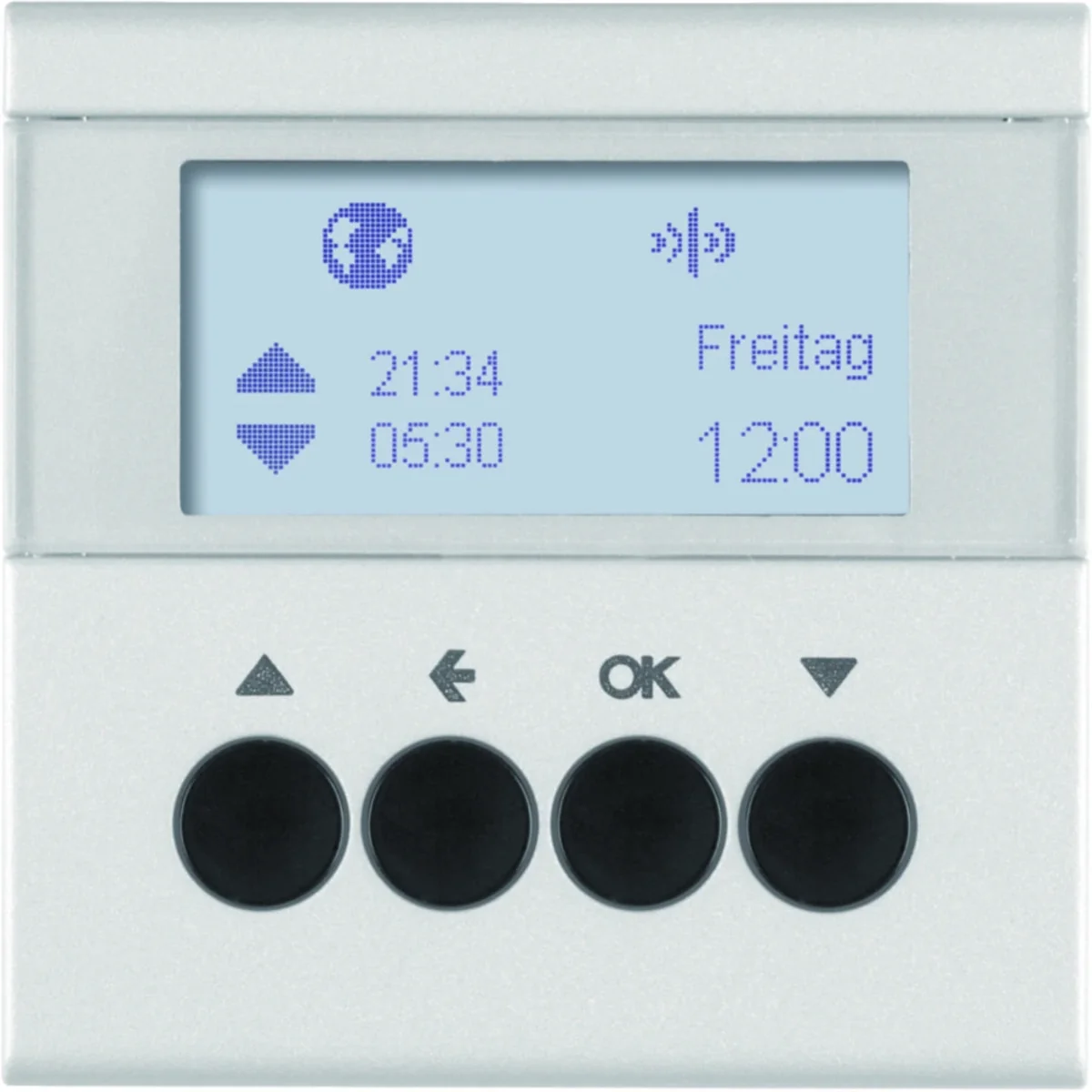

KNX RF QUICKLINK B.KWADRAT/B.3/B.7 Blind time switch matt aluminum 85745183

Lokaler Index:
AIK098BERK
Katalognummer:
85745183
EAN-Code:
4011334375319
Hersteller: BERKER
Switching time [s]: < 0.6s
Surface: Matt
Family: KNX RF QUICKLINK
Preis:
255,00 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 10 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Louver time switch from the KNX RF quicklink series. Main design line: Berker B.Kwadrat/B.3/B.7.

Features:

  • Additional ETS features: +6 scenes , operating mode, status indicator, 2x alarm
  • reset function (factory settings)
  • with button lock
  • party function, automatic commands, radio and extension commands are not executed (blocked)
  • option to configure transmitter and/or receiver functions;
  • option to remember slat position for a given scene
  • recalling scenes using KNX radio devices
  • quicklink functions for including single, group and central control of blinds/roller shutters into the system
  • quicklink functions: blinds, 2 scenes, forced control, up/down button switch
  • manual/automatic toggle

Controls and indicators:

  • indicate attachment/mechanism compatibility on display
  • adjustable contrast of the LCD display
  • LCD display illuminated during operation

Detection:

  • sun protection and twilight function in combination with a radio illuminance sensor

Connection:

  • integration with the KNX system -TP via KNX radio network/TP surface-mounted gateway

Settings:

  • with automatic winter/summer time changeover (optional disconnection)
  • Astronomy program for sunrise/sunset switching with city/country input and customization
  • Standalone radio commands and extensions are not executed
  • vacation program causing random selection of travel times in automatic mode

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent technology system building. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technische Daten

  • Switching time [s]
    < 0.6s
  • Family
    KNX RF QUICKLINK
  • Operating temperature range [°C]
    from -5 to 45
  • Number of radio channels
    1
  • Minimum slat adjustment time [ms]
    250
  • Radio protocol
    KNX
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Surface
    Matt
  • Level of security
    IP20
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio transmitter power [mA]
    <10
  • Power reserve [h]
    24
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.52.24.0

Weitere technische Daten

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Weekly program
    Yes
  • Astro program
    Yes
  • Width in number of modular spacings
    0
  • Number of channels
    2
  • Presence simulation
    No
  • Radio-controlled (DCF77)
    No
  • With bus connection
    Yes
  • Days off programmable
    No
  • Autonomy
    0 h
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Daily program
    Yes
  • Annual program
    No
  • Mounting method
    Flush-mounted
  • External programming
    Yes
  • Number of outputs
    1
  • Summer-/winter switchover
    Yes
  • GPS (global positioning system)
    No
  • With memory card
    No
  • Sub-clocks controllable over bus-system
    No
  • Degree of protection (IP)
    IP20

Hersteller-Details

  • Hersteller
    BERKER POLSKA SP. Z O.O.
  • Adresse
    62-035 UL. ŚREDZKA 19
  • Steueridentifikationsnummer
    7781027605

Großpackungen

Eine Art Paket Karton Pakiet Paleta
Menge 1 stk. 1 stk. 36 stk. 1152 stk.
Gewicht (kg) 0,067 0,092 3,577 134,454
Breite (m) 0,056 0,084 0,300 0,800
Länge (m) 0,032 0,070 0,225 1,050
Tiefe (m) 0,056 0,085 0,400 1,200
