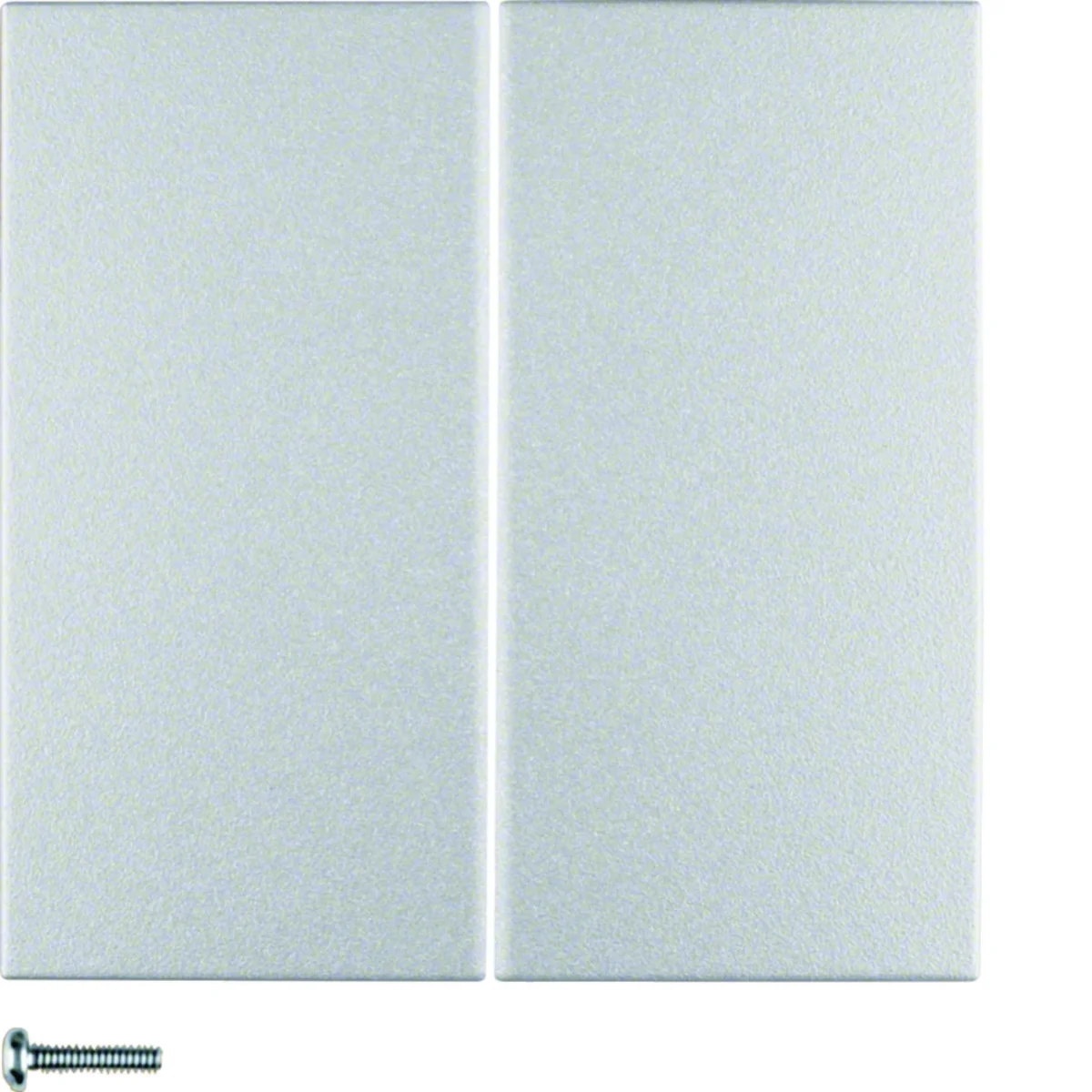

KNX RF QUICKLINK B.KWADRAT/B.3/B.7 4-gang push-button aluminum matte 85648183

• additional ETS functions: +6 scenes, 1 push-button control up/down, operating mode on/off, dimming value, illuminance indicator, push-button switch, status indicator, control forced
• possibility to freely configure the function of the area of the upper/lower and left/right buttons: as a receiver to control the connected load or as a transmitter for remote control of e.g. blinds
• possibility to configure the transmitter function and/ or receiver
• reset function (to factory settings) ;
• possibility to block saving scenes
• for plasterboard walls

Controls and indicators:

• User interfaces can be configured for one- or two-level operation
• with configuration and function button
< /ul>

LED control:

• with configuration and function LED
• cap and mechanism compatibility LED indicator
< /ul>

Connection:

• integration with the KNX-TP system via the KNX radio network/TP surface-mounted gateway

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent building technology system. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

• installation in places where cable installation is not possible (e.g. glass walls),
• the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
• the ability to control electrical receivers using remote controls,
• the ability to create light scenes and group and central control functions.
