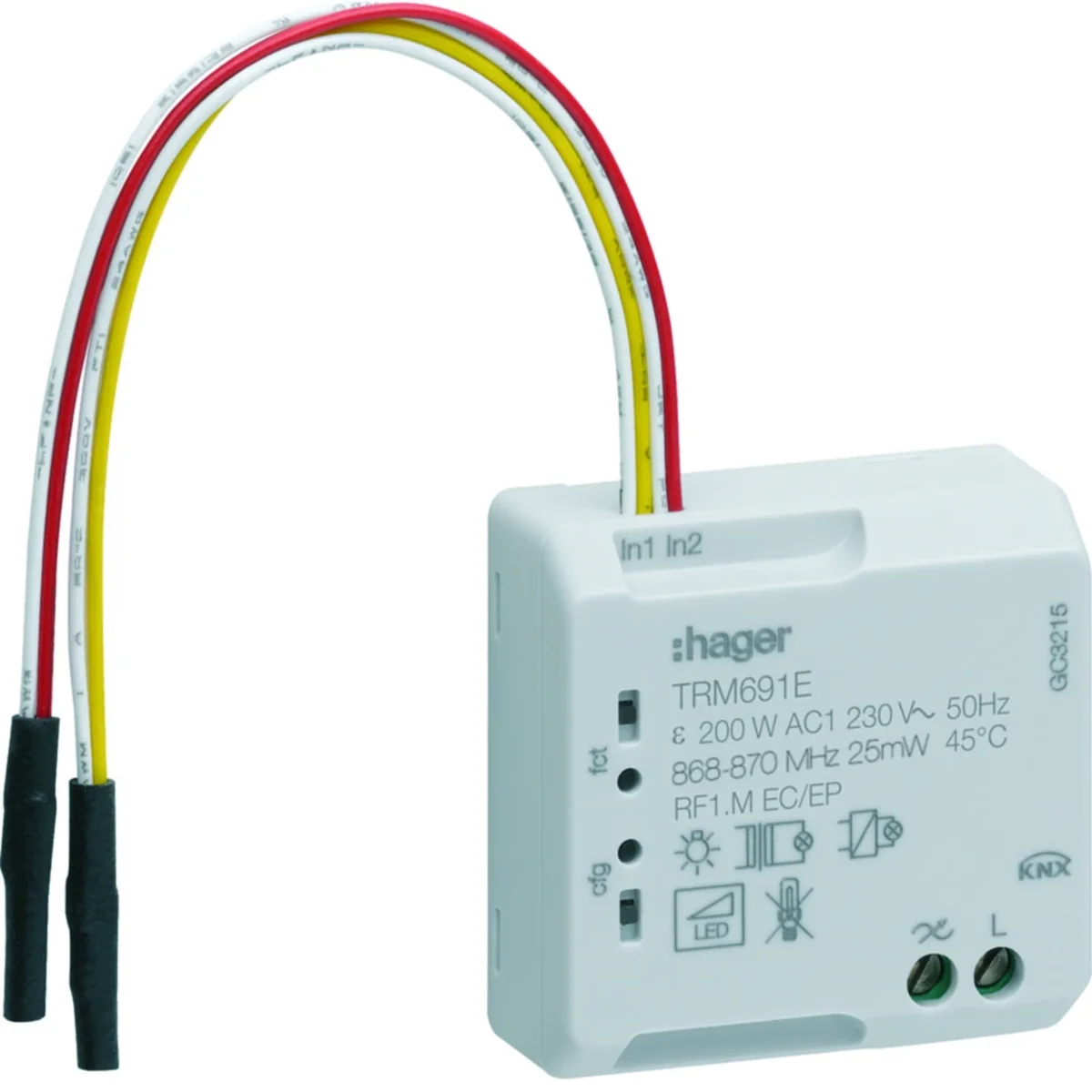

KNX RF quicklink 1-gang electronic dimmer + 2 potential-free inputs TRM691E
local index:
AIK201HAGE
Catalog No:
TRM691E
EAN code:
3250615989048
Manufacturer:
HAGER
Connection type: With a screw
Operating temperature range [°C]: from -15 to 45
Maximum bulb power [W]: 200
Price:
153,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX RF quicklink 1-gang electronic dimmer + 2 potential-free inputs
Technical data
-
Connection typeWith a screw
-
Maximum bulb power [W]200
-
Receiver category2
-
AC supply voltage [V]230
-
Radio protocolKNX
-
Manual controlYes
-
storage temperature [°C]from -25 to 70
-
Conventional transformers [VA]10 - 175
-
Range of the radio transmitter (in the building) [m]thirty
-
Number of outputs1
-
Conductor cross-section (wire) [mm²]0.5 - 2.5
-
Operating temperature range [°C]from -15 to 45
-
Radio transmitter/receiver frequency [MHz]868.3
-
Number of quicklinksup to 20 transmitters/receivers
-
AC operating voltage [V]230
-
Connection typeWith screw-elevator clamps
-
BeaconYes
-
Electronic transformers [W]10 - 175
-
Relative humidity (no condensation) [%]0 - 65 (non-condensing)
-
Radio transmitter range (in open area) [m]100
-
Wire cross-section (cord) [mm²]0.5 - 1.5
-
PKWIU26.51.20.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentYes
-
Bus system PowernetNo
-
Radio frequent bidirectionalYes
-
Mounting methodFlush-mounted
-
With bus connectionNo
-
Substation inputYes
-
With LED indicationYes
-
Output power200 ... 200 W
-
Type of loadUniversal
-
Voltage230 ... 230 V
-
Frequency50 ... 50 Hz
-
Min. depth of built-in installation box40 mm
-
Bus system KNX-RF (Radio Frequent)Yes
-
Bus system LONNo
-
Other bus systemsNone
-
ModelDimming actuator
-
Width in number of modular spacings0
-
Bus module detachableNo
-
Local operation/hand operationYes
-
Number of outputs1
-
Power boost suitableNo
-
Max. control current850 mA
-
Parallel-service possibleNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,024 | 0,080 | 5,445 | 153,680 |
| Width (m) | 0,018 | 0,085 | 0,315 | 0,800 |
| Length (m) | 0,040 | 0,040 | 0,215 | 1,050 |
| Depth (m) | 0,040 | 0,090 | 0,360 | 1,200 |
