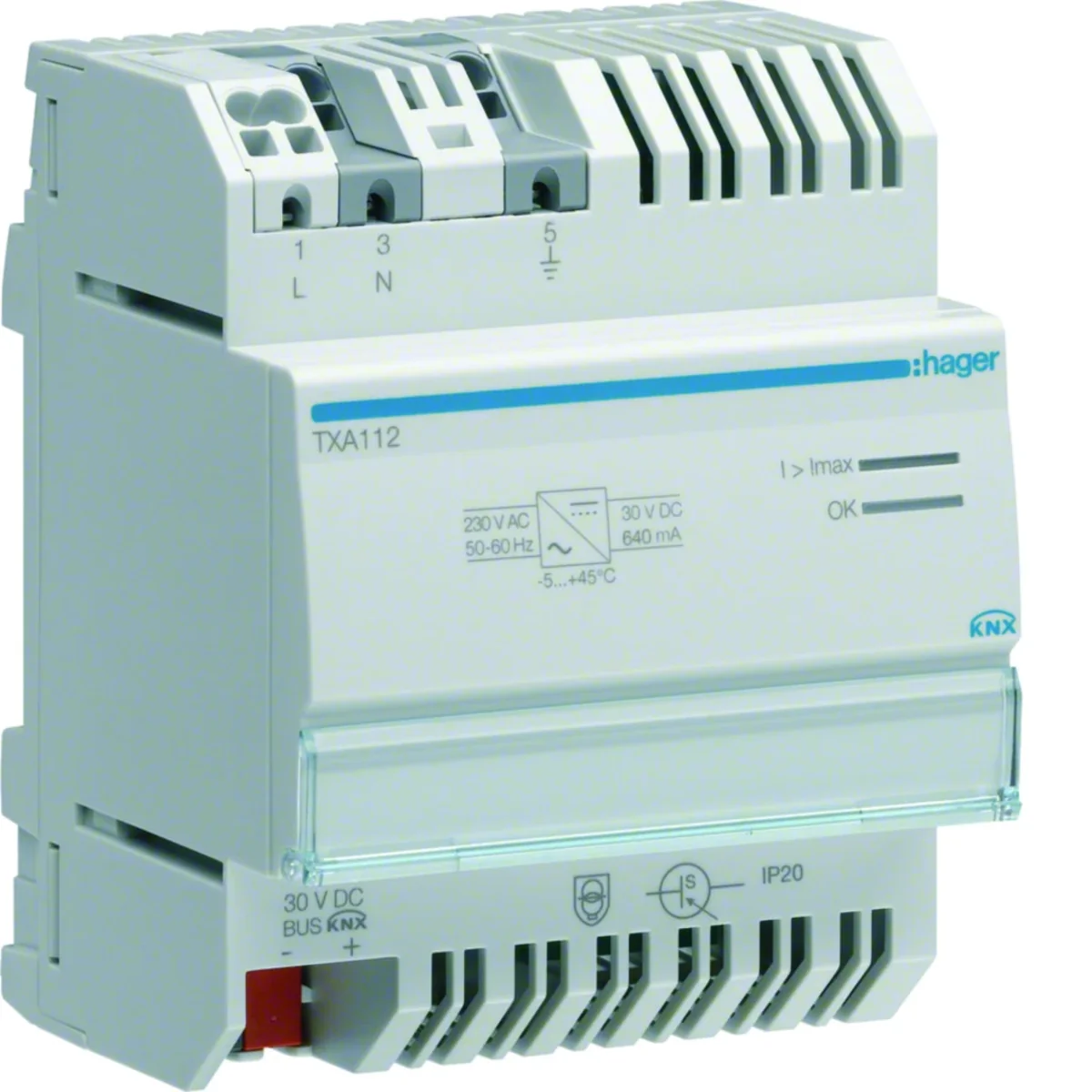

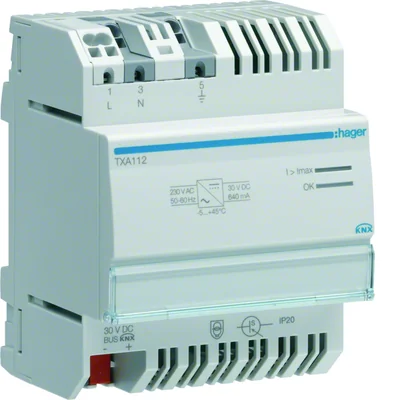

KNX RF KNX power supply 1 x 30V DC, 640mA TXA112

local index:
AIK015HAGE
Catalog No:
TXA112
EAN code:
3250616049444
Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 64
Depth [mm]: 64
Price:
470,09 €
gross / set
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity set
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX RF KNX power supply 1 x 30V DC, 640mA

Technical data

  • Rated frequency [Hz]
    60
  • Depth [mm]
    64
  • Level of security
    IP20
  • Width [mm]
    72
  • Height [mm]
    90
  • Rated output voltage [V]
    thirty
  • AC supply voltage [V]
    230
  • Number of outputs
    1
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Length [mm]
    64
  • Color
    Gray
  • power loss [W]
    15
  • Connection type
    Quick Connect
  • Operating temperature range [°C]
    from -5 to 45
  • Number of modules
    4
  • storage temperature [°C]
    from -20 to 70
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.11.62.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With LED indication
    Yes
  • Number of integrated choke coils
    1
  • Max. output current
    640 mA
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Width in number of modular spacings
    4
  • Bus voltage stockable
    No
  • Number of lines to feed
    1

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 set 1 set 36 set 864 set
Weight (kg) 0,204 0,245 9,325 246,800
Width (m) 0,066 0,075 0,310 0,800
Length (m) 0,071 0,075 0,230 1,070
Depth (m) 0,090 0,095 0,360 1,200
