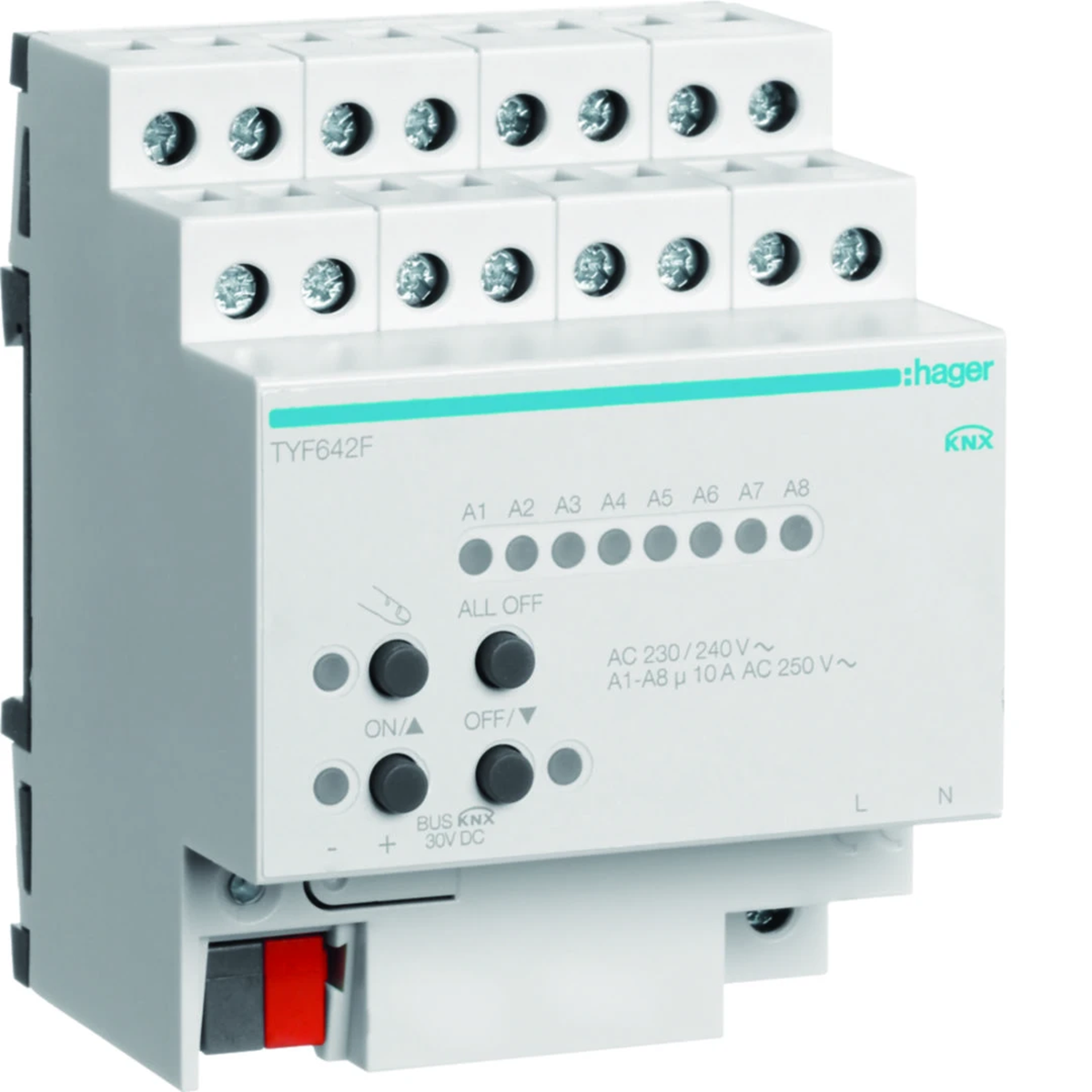

KNX Fan coil controller 2-fold, 10A TYF642F
Lokaler Index:
AIK101HAGE
Katalognummer:
TYF642F
EAN-Code:
3250616059924
Preis:
580,62 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
KNX Fan coil controller 2-fold, 10A
Technische Daten
-
Halogen freeNO
-
Depth [mm]70
-
Input power [W]0.15
-
Power consumption [W]0.15
-
Width [mm]72
-
Operating temperature range [°C]from -5 to 45
-
Accurate colorlight gray
-
AC supply voltage [V]230
-
Connection typeWith screw terminals
-
Electronic transformers [W]1500
-
Number of outputs2
-
Conductor cross-section (wire) [mm²]1.5 - 4
-
Rated frequency [Hz]60
-
ColorGray
-
InstallationOn the TH-35 rail
-
power loss [W]3
-
Height [mm]90
-
Number of modules4
-
DC supply voltage [V]thirty
-
Operating voltage via DC bus [V]21 - 32
-
storage temperature [°C]from -20 to 70
-
Conventional transformers [VA]1200
-
Wire cross-section (cord) [mm²]0.5 - 4
-
PKWIU27.12.24.0
Weitere technische Daten
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Width in number of modular spacings4
-
Bus module detachableNo
-
Correcting variable switchingYes
-
Manual switchYes
-
Max. switching current (resistive load)10 A
-
Max. output current10 A
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodDRA (DIN-rail adapter)
-
With bus connectionYes
-
Correcting variable consistentNo
-
Valve protection functionYes
-
Liczba wejść binarnych0
-
Number of outputs2
-
Switching voltage230 ... 240 V
Hersteller-Details
-
HerstellerHager Controls S.A.S.
-
Adresse67704 Saverne Rue Saint Nicolas 33 Francja
-
E-Mail
Großpackungen
| Eine Art Paket | Karton | Pakiet | Paleta |
| Menge | 1 stk. | 24 stk. | 576 stk. |
| Gewicht (kg) | 0,300 | 7,290 | 175,100 |
| Breite (m) | 0,090 | 0,310 | 0,800 |
| Länge (m) | 0,080 | 0,210 | 1,050 |
| Tiefe (m) | 0,100 | 0,360 | 1,200 |
