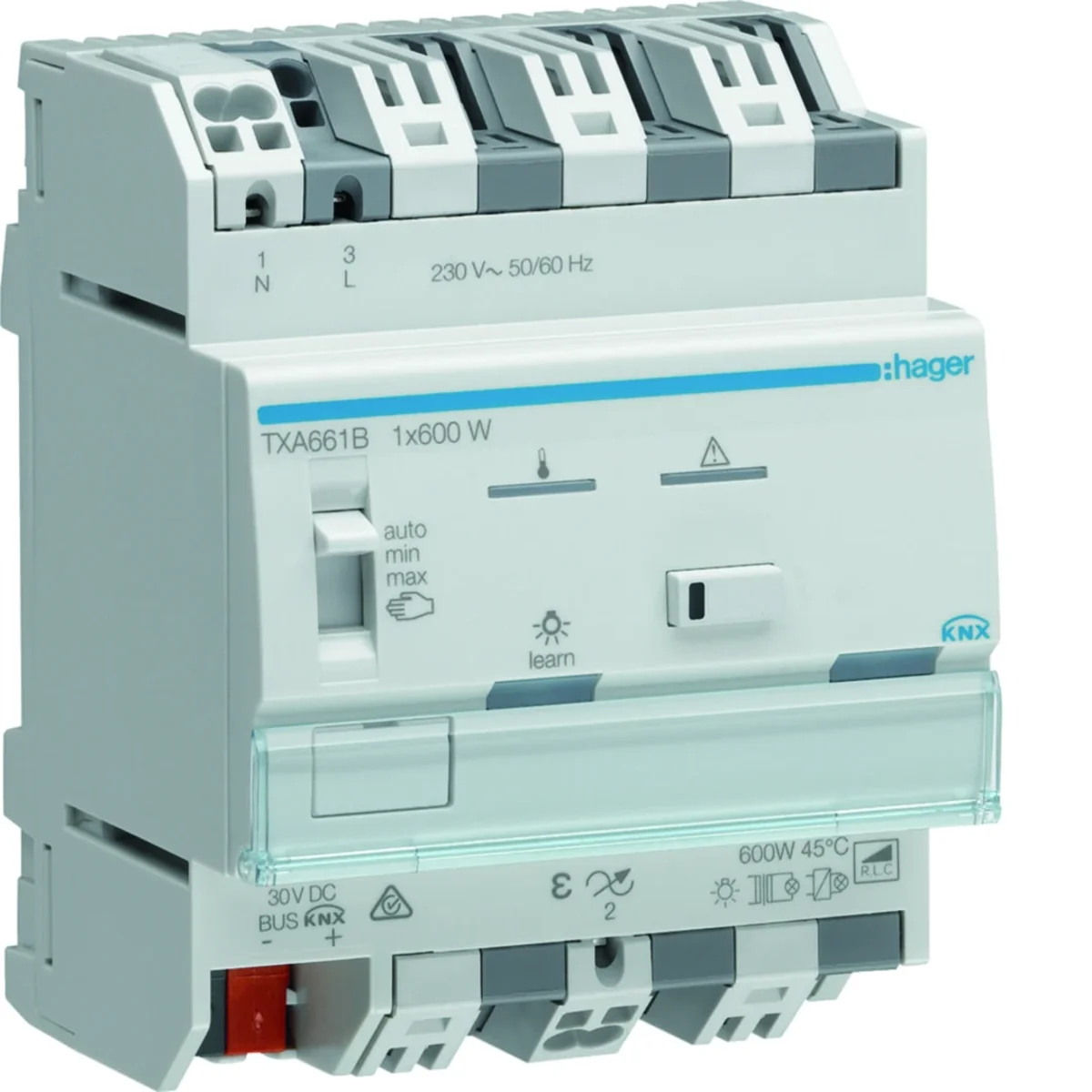

KNX e/s Universal dimmer 600 W, 1-gang TXA661B

local index:
AIK203HAGE
Catalog No:
TXA661B
EAN code:
3250616048713
Manufacturer: HAGER
Rated frequency [Hz]: 60
Color: Gray
Family: KNX EASY
Price:
284,02 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal 1-gang dimmer, KNX easy series:

Functions

  • suitable for switching on various external conductors
  • can be activated via bus teaching to optimize the performance of compact fluorescent lamps and LED lamps
  • pluggable

Controls and indicators

  • modular
  • manual operation of each channel via push button with integrated status LED; KNX function is then disabled
  • Status LED integrated in button for manual operation
  • selector switch for manual/bus mode and load setting
  • with illuminated button programming

Fuse

  • short-circuit and overload protection (electronic fuse)
  • short-circuit and overload protection overload (LED indication)
  • overheating protection (LED indication)

Series characteristics:

KNX easy from KNX is a new building automation system providing an easy-to-use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

Technical data

  • Rated frequency [Hz]
    60
  • Family
    KNX EASY
  • power loss [W]
    0.32
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    light gray
  • Maximum bulb power [W]
    600
  • AC supply voltage [V]
    230
  • Bus current consumption (data transmission) [mA]
    < 2.3
  • Beacon
    Yes
  • Electronic transformers [W]
    600
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0
  • Color
    Gray
  • Level of security
    IP20
  • Connection type
    Quick Connect
  • Number of modules
    4
  • DC supply voltage [V]
    thirty
  • Maximum operating current [A]
    0.004
  • Operating voltage via DC bus [V]
    21 - 32
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Number of outputs
    1
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    Yes
  • Substation input
    No
  • With LED indication
    Yes
  • Output power
    600 ... 600 W
  • Type of load
    Universal
  • Voltage
    30 ... 30 V
  • Frequency
    50 ... 60 Hz
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Model
    Control module
  • Width in number of modular spacings
    4
  • Bus module detachable
    No
  • Local operation/hand operation
    Yes
  • Number of outputs
    1
  • Power boost suitable
    No
  • Max. control current
    4 mA
  • Parallel-service possible
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,254 0,255 6,590 181,160
Width (m) 0,097 0,100 0,315 0,800
Length (m) 0,082 0,080 0,245 1,050
Depth (m) 0,117 0,115 0,365 1,200
