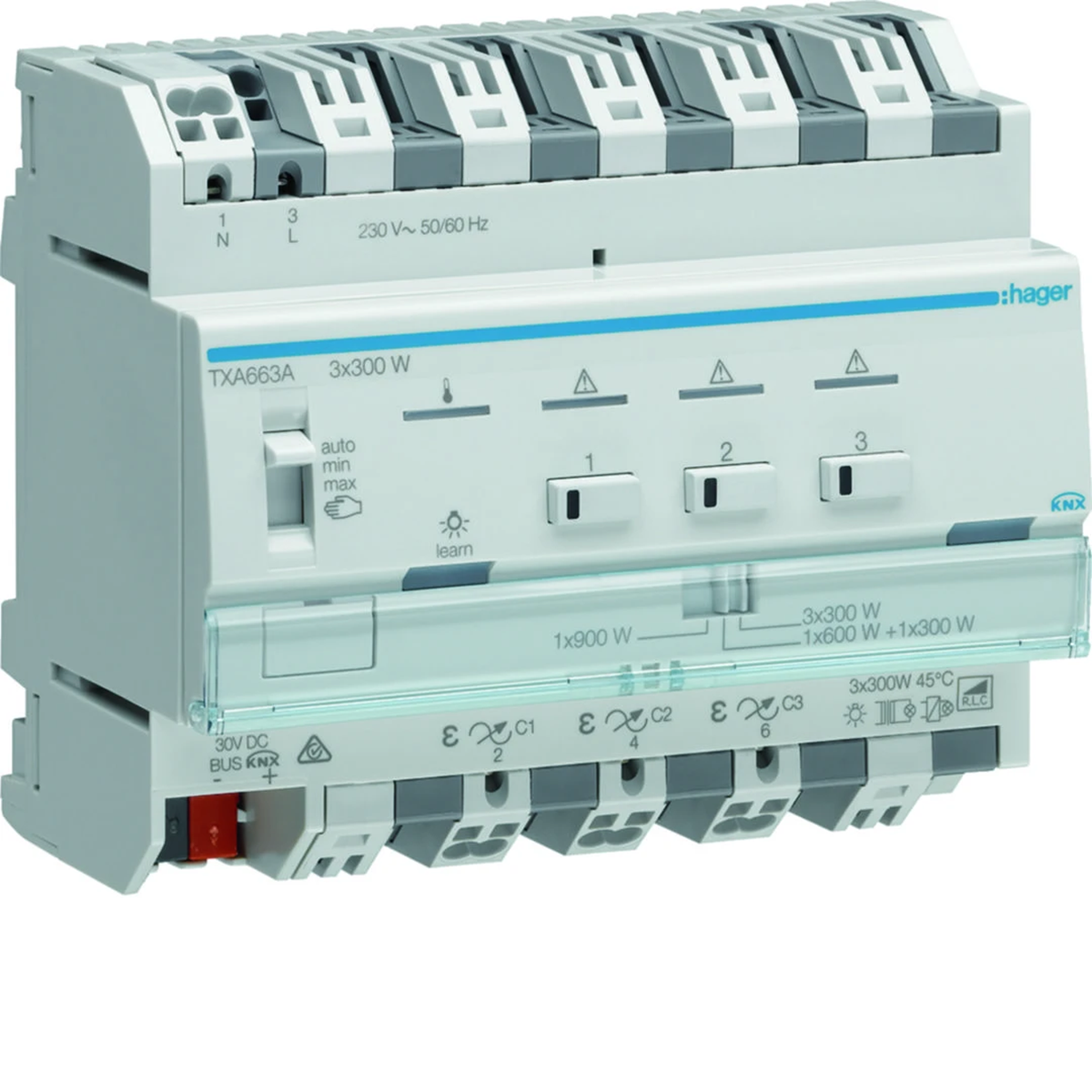

KNX e/s Universal 3-channel dimmer, 3-gang TXA663A

Внутрішній артикул:
AIK204HAGE
№ каталоговий:
TXA663A
Код EAN:
3250616048690
Виробник: HAGER
Rated frequency [Hz]: 60
Color: Gray
Family: KNX EASY
Ціна:
583,64 €
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 4 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати в буфер обміну
Роздрукувати

Опис товару

3-fold universal dimmer, 3-channel, KNX easy series:

Functions

  • can be enabled via bus teaching to optimize the performance of compact fluorescent lamps and LED lamps
  • plug-in

Controls and indicators

  • modular
  • manual operation of each channel by means of a button with an integrated status LED; KNX function is then disabled
  • Status LED integrated in button for manual operation
  • selector switch for manual/bus mode and load setting
  • with illuminated button programming

Fuse

  • short-circuit and overload protection (electronic fuse)
  • short-circuit and overload protection overload (LED indication)
  • overheating protection (LED indication)

Series characteristics:

KNX easy from KNX is a new building automation system providing an easy-to-use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

Технічні дані

  • Rated frequency [Hz]
    60
  • Family
    KNX EASY
  • power loss [W]
    0.77
  • Operating temperature range [°C]
    from -5 to 45
  • Accurate color
    light gray
  • Maximum bulb power [W]
    300 per channel
  • AC supply voltage [V]
    230
  • Bus current consumption (data transmission) [mA]
    < 2.3
  • Beacon
    Yes
  • Electronic transformers [W]
    300 per channel
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0
  • Color
    Gray
  • Level of security
    IP20
  • Connection type
    Quick Connect
  • Number of modules
    6
  • DC supply voltage [V]
    thirty
  • Maximum operating current [A]
    0.004
  • Operating voltage via DC bus [V]
    21 - 32
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Number of outputs
    3
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5

Інші технічні дані

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • With bus connection
    Yes
  • Substation input
    Yes
  • With LED indication
    Yes
  • Output power
    900 ... 900 W
  • Type of load
    Universal
  • Voltage
    30 ... 30 V
  • Frequency
    50 ... 60 Hz
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Model
    Control module
  • Width in number of modular spacings
    6
  • Bus module detachable
    No
  • Local operation/hand operation
    Yes
  • Number of outputs
    3
  • Power boost suitable
    No
  • Max. control current
    4 mA
  • Parallel-service possible
    No
  • Degree of protection (IP)
    IP20

Об'ємна упаковка

Свого роду пакет Karton Pakiet Paleta
Кількість 1 шт. 1 шт. 12 шт. 288 шт.
Вага (кг) 0,305 0,414 5,280 151,720
Ширина (м) 0,097 0,100 0,310 0,800
Довжина (м) 0,079 0,080 0,210 1,050
Глибина (м) 0,152 0,150 0,355 1,200
