KNX e/s Temperature controller with display and bus port 80440100

local index:
APT015HAGE
Catalog No:
80440100
EAN code:
4011334415923
Manufacturer: HAGER
Halogen free: NO
Material: Thermoplastic
Level of security: IP21
Price:
324,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

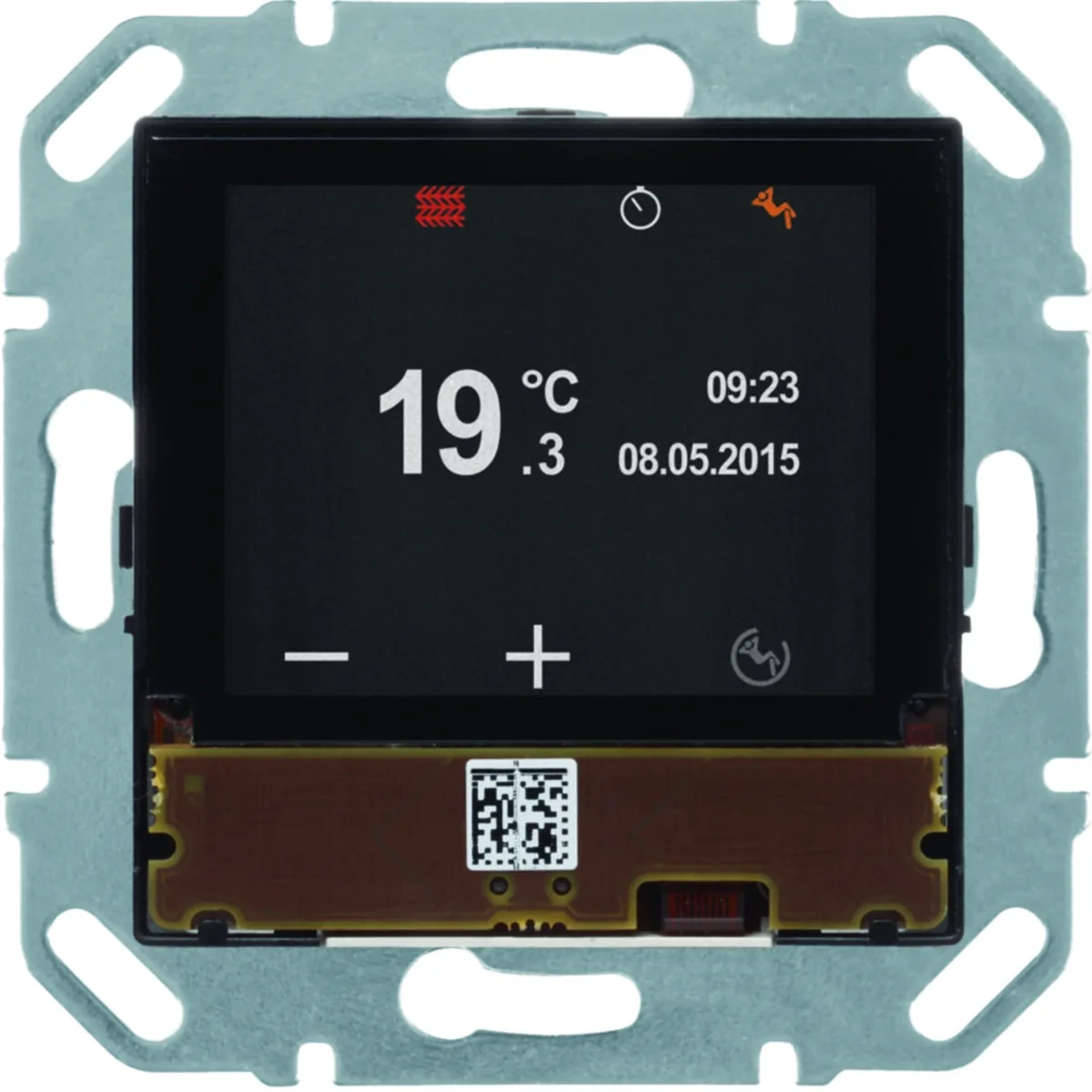

KNX e/s Temperature controller with display and bus port

Technical data

  • Halogen free
    NO
  • Level of security
    IP21
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • PKWIU
    26.51.70.0
  • Material
    Thermoplastic
  • Width [mm]
    71
  • Mounting depth [mm]
    32
  • Bus current consumption (data transmission) [mA]
    10

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Mounting method
    Flush-mounted
  • With anti-theft/dismantling protection
    No
  • With display
    Yes
  • Material quality
    Thermoplastic
  • Colour
    Black
  • Transparent
    No
  • Presence button
    No
  • Degree of protection (IP)
    IP21
  • Class of the temperature control
    IV
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Assembly arrangement
    Basic element
  • With local operation
    Yes
  • With LED indication
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • RAL-number (similar)
    9005
  • Manual set point setting
    Yes
  • Parallel-service possible
    No
  • With bus connection
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 384 pcs.
Weight (kg) 0,084 0,235 3,140 125,480
Width (m) 0,071 0,100 0,300 0,800
Length (m) 0,047 0,080 0,225 1,050
Depth (m) 0,071 0,150 0,400 1,200
