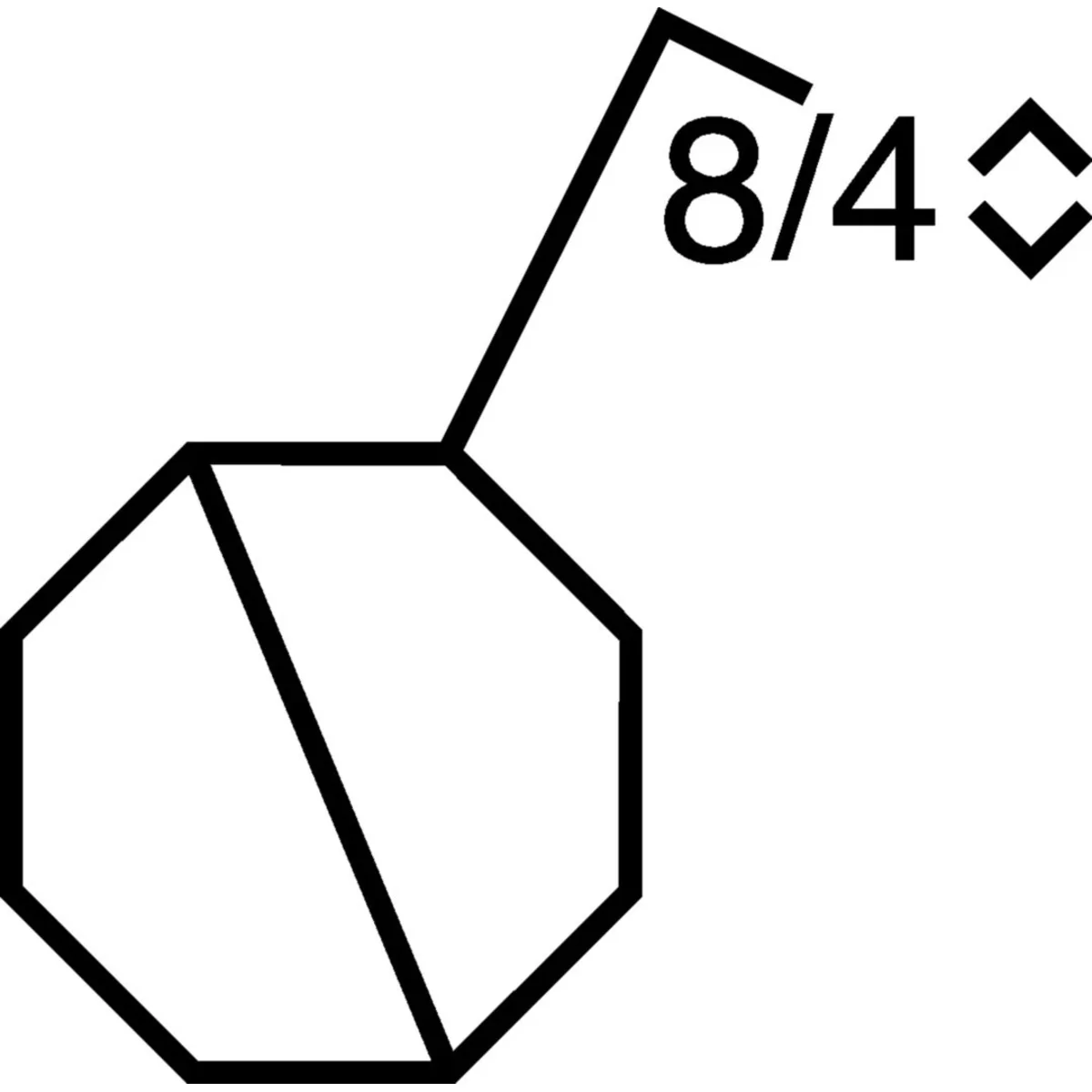

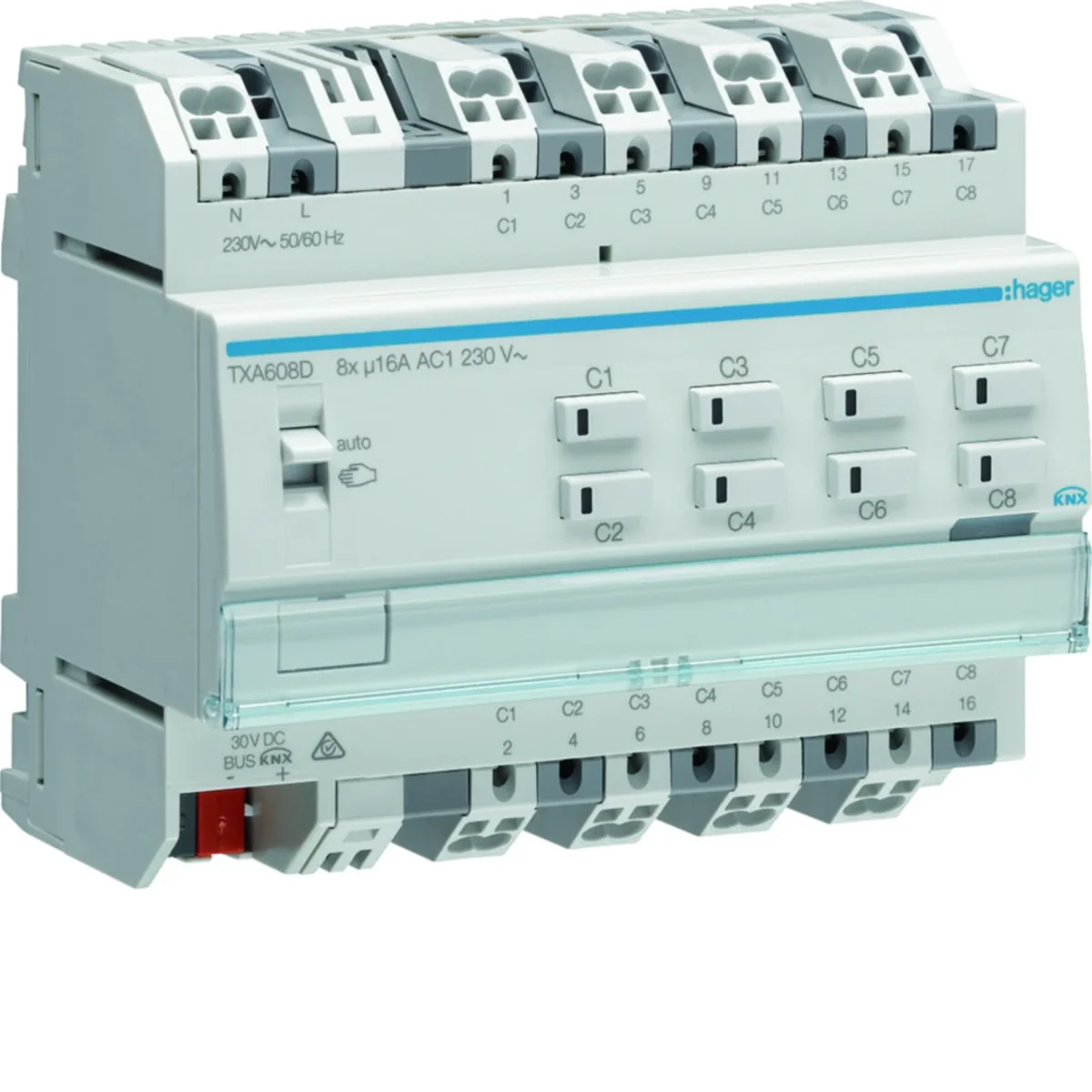

Switching/shutter controller, capacitive load, KNX easy series:

Functions

< ul>

suitable for switching on various external cables

with the possibility of any combination of driving and switching functions

with the function of positioning the position of blinds and slats

z protection functions, e.g. for wind, rain, alarm

with sun protection

for drywall

Controls and Indicators

Modular
Status LED Integrated in Manual Button
Manual Buttons to On /off (up/down) and on/off. bus functions for each channel
with illuminated programming button

Series characteristics:

KNX easy from KNX easy is a new system building automation for an easy-to-use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

Color

Gray
Contact type

8 NO
Level of security

IP20
Operating temperature range [°C]

from -5 to 45
Rated output voltage [V]

230
DC supply voltage [V]

thirty
Maximum operating current [A]

16
Bus current consumption (data transmission) [mA]

6
Beacon

Yes
Electronic transformers [W]

1200
Number of outputs

8
Conductor cross-section (wire) [mm²]

0.75 - 2.5

Rated current [A]

16
Family

KNX EASY
Connection type

Quick Connect
Rated switching voltage [V]

230
Number of modules

6
Maximum bulb power [W]

2300
Operating voltage via DC bus [V]

21 - 32
Manual control

Yes
storage temperature [°C]

from -20 to 70
Conventional transformers [VA]

1600
Wire cross-section (cord) [mm²]

0.75 - 2.5
PKWIU

27.33.11.0

Other technical data

Bus system KNX

Yes
Bus system radio frequent

No
Bus system Powernet

No
Radio frequent bidirectional

No
Width in number of modular spacings

6
With LED indication

Yes
Output power

2300 W
Max. number of switching contacts

8
Rated current

16 A
Different phases connectable

Yes
Bus module detachable

No
Degree of protection (IP)

IP20

Bus system KNX-RF (Radio Frequent)

No
Bus system LON

No
Other bus systems

None
Mounting method

DRA (DIN-rail adapter)
Local operation/hand operation

Yes
Max. switching power

11500 W
Suitable for C-load

Yes
Max. switching current

16 A
Rated operating voltage

230 ... 230 V
With bus connection

Yes
Modular expandability

No

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	12 pcs.	288 pcs.
Weight (kg)	0,374	0,455	6,080	168,920
Width (m)	0,106	0,100	0,315	0,800
Length (m)	0,069	0,080	0,215	1,050
Depth (m)	0,090	0,150	0,360	1,200
