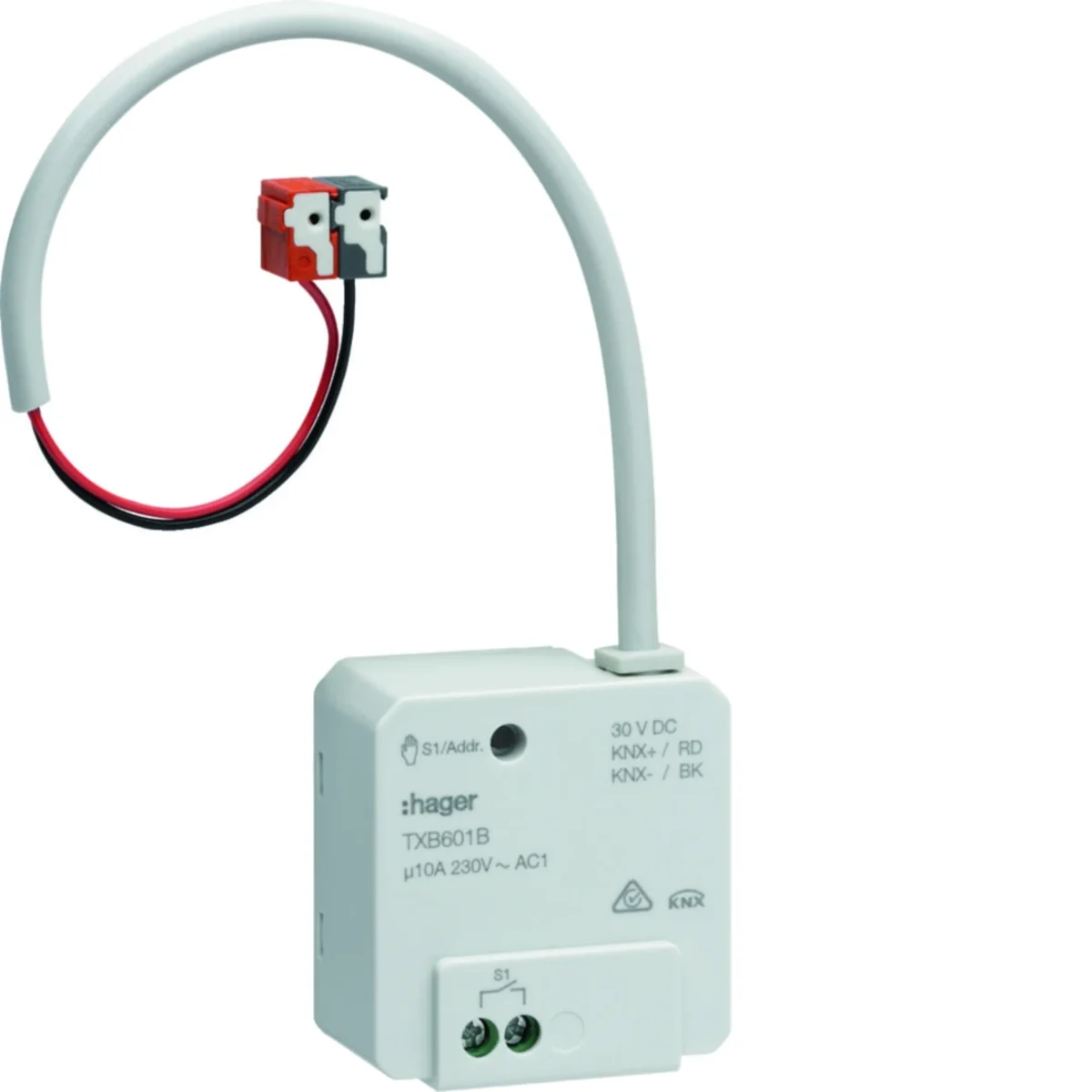

KNX e/s Switching controller, 1-gang, flush-mounted, 10 A TXB601B
local index:
AIK005HAGE
Catalog No:
TXB601B
EAN code:
3250616048904
Price:
114,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
KNX e/s Switching controller, 1-gang, flush-mounted, 10 A
Technical data
-
Depth [mm]22.5
-
InstallationFlush-mounted
-
Contact type1 no
-
Level of securityIP20
-
Width [mm]44
-
Height [mm]44
-
Rated switching voltage [V]230
-
Accurate colorlight gray
-
Maximum bulb power [W]600
-
Operating voltage via DC bus [V]21 - 32
-
Connection typeWith screw terminals
-
BeaconYes
-
Electronic transformers [W]600
-
Number of outputs1
-
Conductor cross-section (wire) [mm²]0.5 - 2.5
-
ColorGray
-
Rated current [A]10
-
FamilyKNX EASY
-
power loss [W]0.6
-
Connection typeWith a screw
-
Operating temperature range [°C]from -5 to 45
-
Rated output voltage [V]230
-
DC supply voltage [V]thirty
-
Maximum operating current [A]10
-
Bus current consumption (data transmission) [mA]7
-
Manual controlYes
-
storage temperature [°C]from -20 to 70
-
Conventional transformers [VA]600
-
Wire cross-section (cord) [mm²]0.5 - 2.5
-
PKWIU26.52.24.0
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Width in number of modular spacings0
-
With LED indicationYes
-
Output power600 W
-
Max. number of switching contacts1
-
Rated current10 A
-
Different phases connectableNo
-
Bus module detachableNo
-
Degree of protection (IP)IP20
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
Local operation/hand operationYes
-
Max. switching power600 W
-
Suitable for C-loadNo
-
Max. switching current10 A
-
Rated operating voltage230 ... 230 V
-
With bus connectionYes
-
Modular expandabilityNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,034 | 0,100 | 5,345 | 151,280 |
| Width (m) | 0,022 | 0,080 | 0,315 | 0,800 |
| Length (m) | 0,045 | 0,060 | 0,240 | 1,050 |
| Depth (m) | 0,043 | 0,095 | 0,365 | 1,200 |
