el12 Automation Relays and drivers KNX/EIB controllers and relays
el12 sale El12 and HAGER

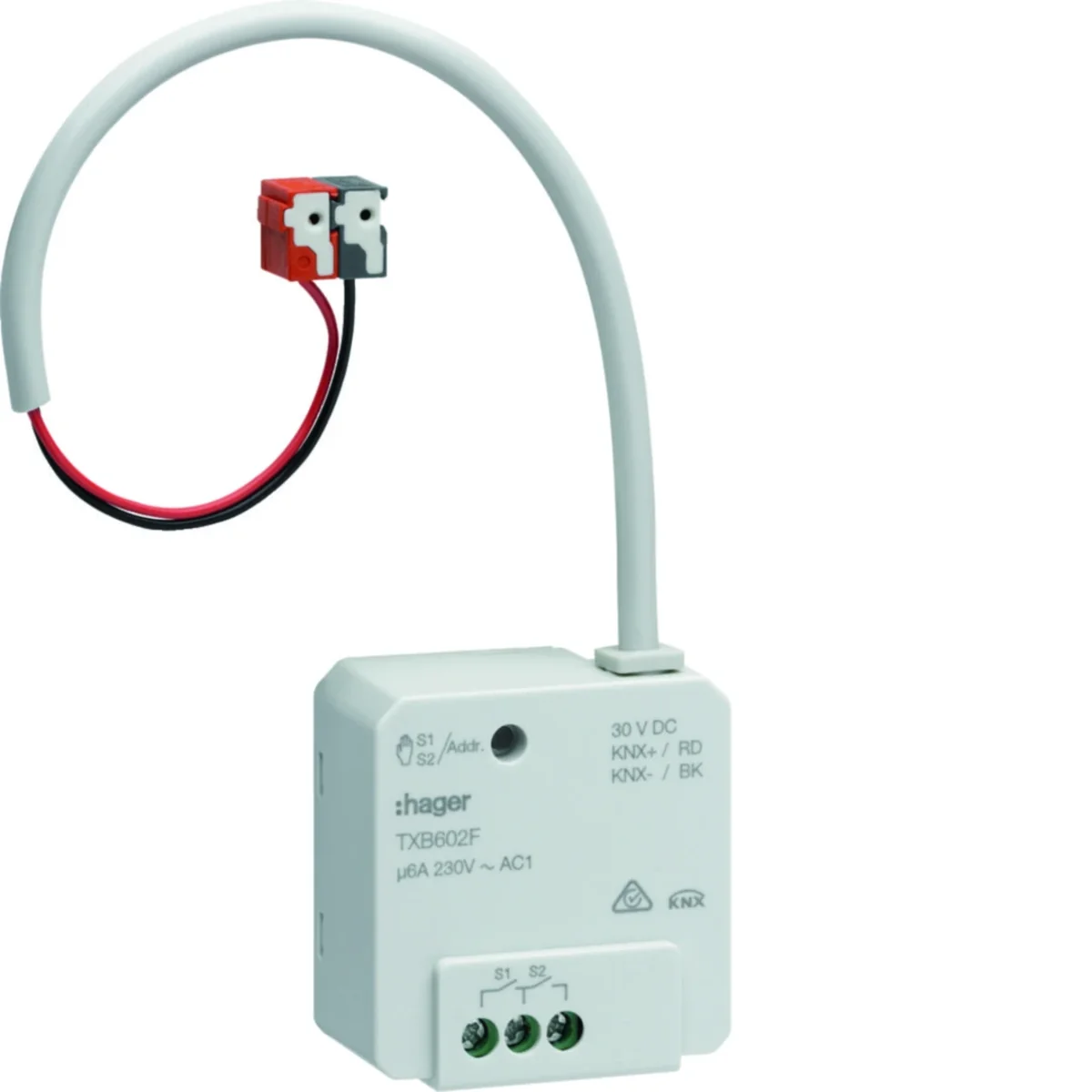

KNX e/s Switch/blind controller 2-gang/1-gang, flush-mounted, 6 A TXB602F

local index:
AIK087HAGE
Catalog No:
TXB602F
EAN code:
3250616048898
KNX e/s Switch/blind controller 2-gang/1-gang, flush-mounted, 6 A
KNX e/s Switch/blind controller 2-gang/1-gang, flush-mounted, 6 A

Click on the photo to enlarge

Manufacturer: HAGER
Depth [mm]: 22.5
Color: Gray
Installation: Flush-mounted
See full description
Price:
145,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

KNX e/s Switch/blind controller 2-gang/1-gang, flush-mounted, 6 A

Technical data

  • Depth [mm]
    22.5
  • Installation
    Flush-mounted
  • Contact type
    2 NO
  • Level of security
    IP20
  • Width [mm]
    44
  • Height [mm]
    44
  • Rated switching voltage [V]
    230
  • Accurate color
    light gray
  • Maximum bulb power [W]
    500
  • Operating voltage via DC bus [V]
    21 - 32
  • Connection type
    With screw terminals
  • Beacon
    Yes
  • Electronic transformers [W]
    500
  • Number of outputs
    2
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Color
    Gray
  • Rated current [A]
    6
  • Family
    KNX EASY
  • power loss [W]
    0.5
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from -5 to 45
  • Rated output voltage [V]
    230
  • DC supply voltage [V]
    thirty
  • Maximum operating current [A]
    6
  • Bus current consumption (data transmission) [mA]
    7
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Conventional transformers [VA]
    500
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    0
  • With LED indication
    Yes
  • Output power
    500 W
  • Max. number of switching contacts
    2
  • Rated current
    6 A
  • Different phases connectable
    No
  • Bus module detachable
    No
  • Modular expandability
    No
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • Local operation/hand operation
    Yes
  • Max. switching power
    1200 W
  • Suitable for C-load
    No
  • Max. switching current
    6 A
  • Rated operating voltage
    230 ... 230 V
  • With bus connection
    Yes
  • Min. depth of built-in installation box
    40 mm
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,050 0,110 5,630 158,120
Width (m) 0,022 0,080 0,310 0,800
Length (m) 0,045 0,060 0,235 1,106
Depth (m) 0,043 0,095 0,360 1,200
