KNX e/s Room regulator with display and bus port 80660100
local index:
APT016HAGE
Catalog No:
80660100
EAN code:
4011334415930
Price:
501,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

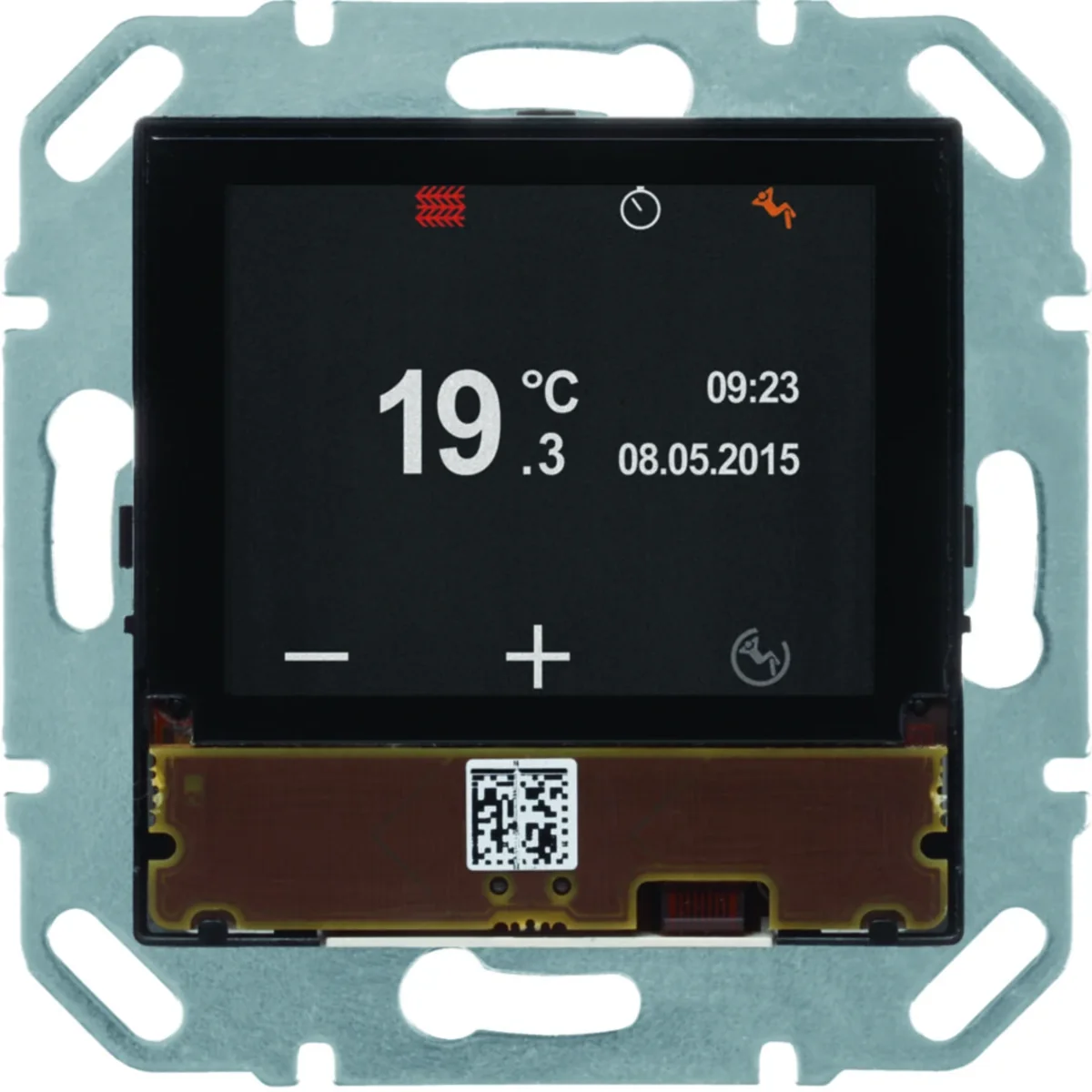

KNX e/s Room regulator with display and bus port
Technical data
-
Halogen freeNO
-
Level of securityIP21
-
Operating temperature range [°C]from -5 to 45
-
Operating voltage via DC bus [V]21 - 32
-
PKWIU26.51.70.0
-
MaterialThermoplastic
-
Width [mm]71
-
Mounting depth [mm]32
-
Bus current consumption (data transmission) [mA]10
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
Mounting methodFlush-mounted
-
With anti-theft/dismantling protectionNo
-
With displayYes
-
Material qualityThermoplastic
-
ColourBlack
-
TransparentNo
-
Presence buttonNo
-
Degree of protection (IP)IP21
-
Class of the temperature controlIV
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Assembly arrangementBasic element
-
With local operationYes
-
With LED indicationYes
-
MaterialPlastic
-
Surface protectionUntreated
-
RAL-number (similar)9005
-
Manual set point settingYes
-
Parallel-service possibleNo
-
With bus connectionYes
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 288 pcs. |
| Weight (kg) | 0,080 | 0,232 | 3,224 | 102,376 |
| Width (m) | 0,071 | 0,100 | 0,300 | 0,800 |
| Length (m) | 0,047 | 0,080 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,150 | 0,400 | 1,200 |
