el12 Automation Relays and drivers KNX/EIB controllers and relays
el12 sale El12 and HAGER

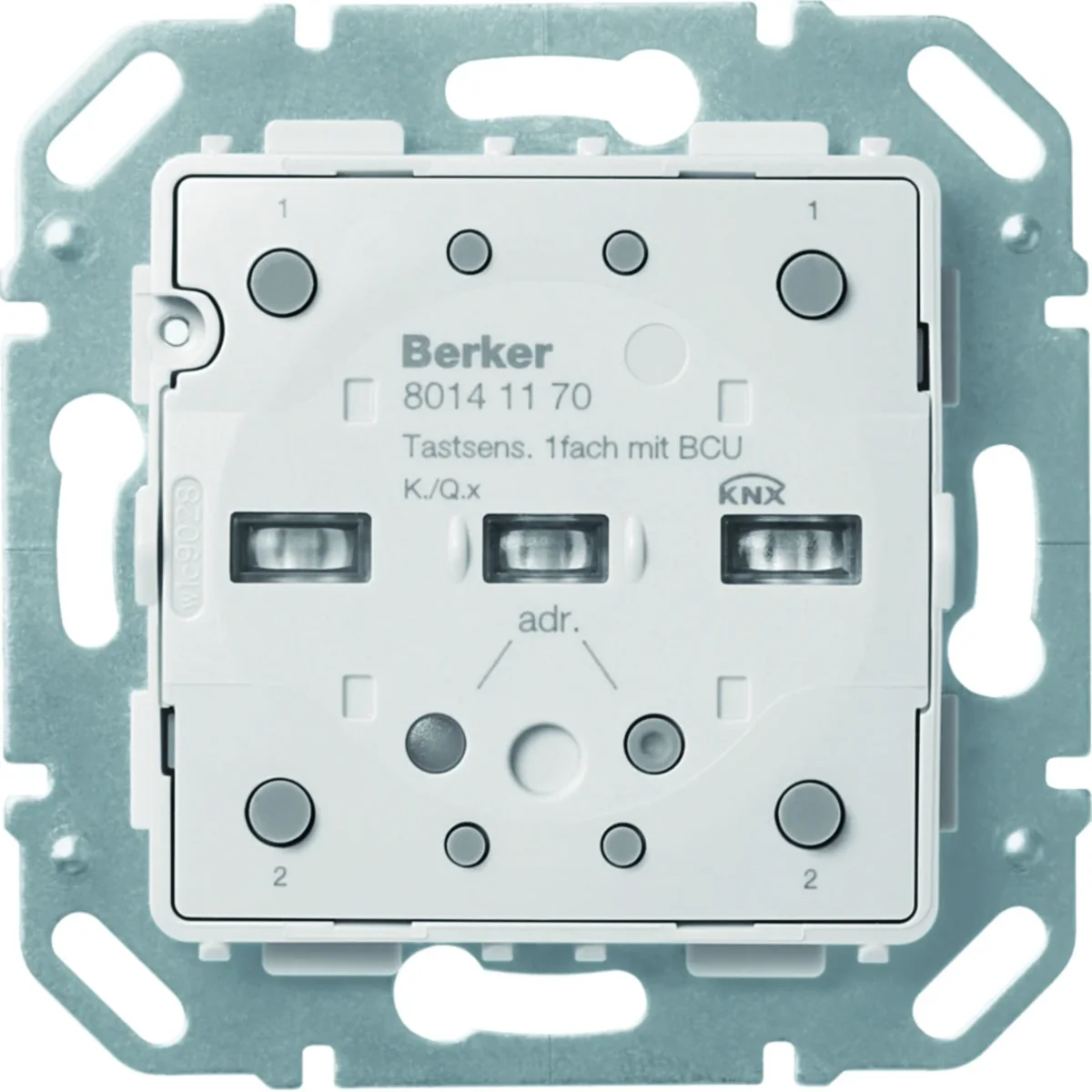

KNX e/s Q.x/K.x 1-gang button module with bus port 80141170

local index:
AIK247HAGE
Catalog No:
80141170
EAN code:
3250617153751
KNX e/s Q.x/K.x 1-gang button module with bus port
KNX e/s Q.x/K.x 1-gang button module with bus port

Click on the photo to enlarge

Manufacturer: HAGER
Halogen free: NO
Material: Plastic | Metal
Installation: Flush-mounted
See full description
Price:
112,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

KNX e/s Q.x/K.x 1-gang button module with bus port

Technical data

  • Halogen free
    NO
  • Installation
    Flush-mounted
  • Level of security
    IP20
  • Surface finish
    Natural
  • Operating voltage via DC bus [V]
    21 - 32
  • PKWIU
    27.12.31.0
  • Material
    Plastic Metal
  • Power consumption [W]
    0.108
  • Operating temperature range [°C]
    from -5 to 45
  • Mounting depth [mm]
    32
  • Bus current consumption (data transmission) [mA]
    10

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    Yes
  • Number of actuation points
    2
  • With LED indication
    Yes
  • With display
    No
  • Material quality
    Other
  • Colour
    Grey
  • Transparent
    No
  • With IR sensor
    No
  • Min. depth of built-in installation box
    34 mm
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    Yes
  • Number of buttons
    1
  • With label area
    No
  • Material
    Other
  • Surface protection
    Untreated
  • RAL-number (similar)
    7035
  • With room temperature controller
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,060 0,115 4,545 170,440
Width (m) 0,071 0,090 0,300 0,800
Length (m) 0,042 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
