KNX e/s B.x 1-gang button module with bus port 80141180
local index:
AIK248HAGE
Catalog No:
80141180
EAN code:
3250617153768
Price:
100,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

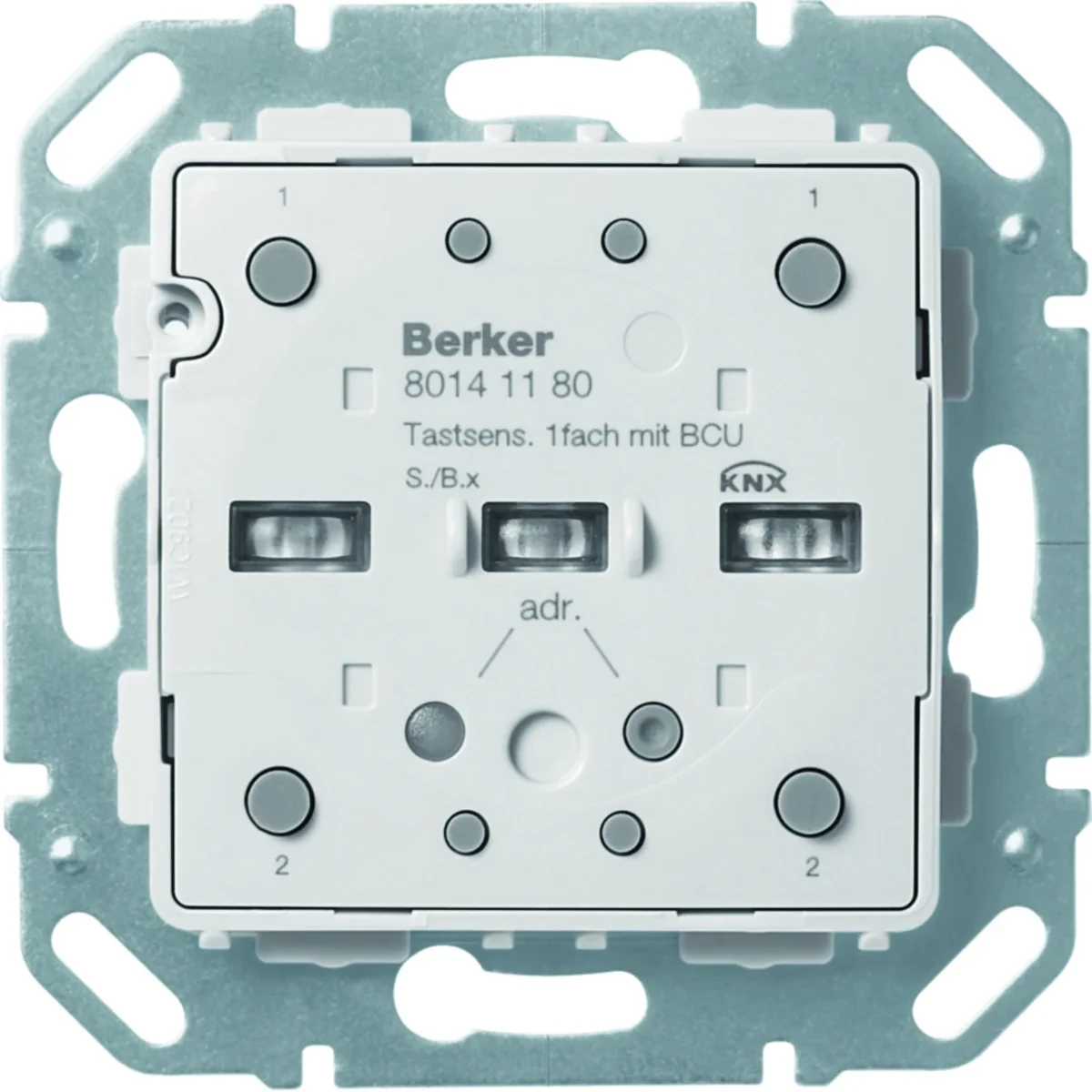

KNX e/s B.x 1-gang button module with bus port
Technical data
-
Halogen freeNO
-
InstallationFlush-mounted
-
Level of securityIP20
-
Surface finishNatural
-
Operating voltage via DC bus [V]21 - 32
-
PKWIU27.12.31.0
-
MaterialPlastic Metal
-
Power consumption [W]0.108
-
Operating temperature range [°C]from -5 to 45
-
Mounting depth [mm]32
-
Bus current consumption (data transmission) [mA]10
Other technical data
-
Bus system KNXYes
-
Bus system radio frequentNo
-
Bus system PowernetNo
-
Radio frequent bidirectionalNo
-
With anti-theft/dismantling protectionYes
-
Number of actuation points2
-
With LED indicationYes
-
With displayNo
-
Material qualityOther
-
ColourGrey
-
TransparentNo
-
With IR sensorNo
-
Min. depth of built-in installation box34 mm
-
Bus system KNX-RF (Radio Frequent)No
-
Bus system LONNo
-
Other bus systemsNone
-
Mounting methodFlush-mounted
-
With bus connectionYes
-
Number of buttons1
-
With label areaNo
-
MaterialOther
-
Surface protectionUntreated
-
RAL-number (similar)7035
-
With room temperature controllerNo
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 36 pcs. | 1152 pcs. |
| Weight (kg) | 0,062 | 0,115 | 4,550 | 170,600 |
| Width (m) | 0,071 | 0,085 | 0,300 | 0,800 |
| Length (m) | 0,042 | 0,075 | 0,225 | 1,050 |
| Depth (m) | 0,071 | 0,085 | 0,400 | 1,200 |
