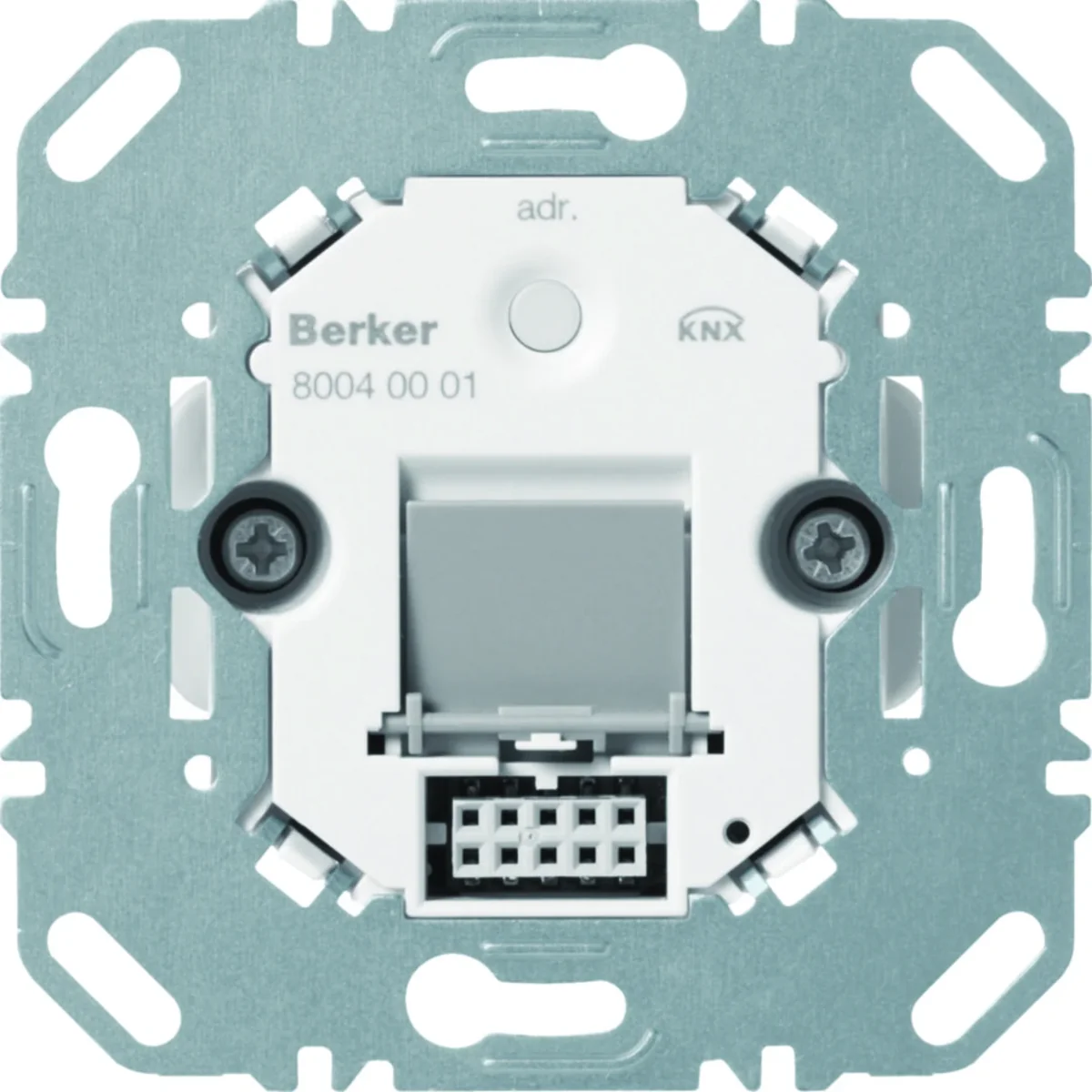

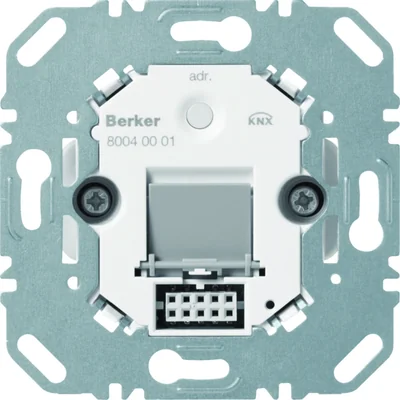

KNX e/s Bus port, flush-mounted 80040001

local index:
AIK070HAGE
Catalog No:
80040001
EAN code:
3250617153362
Manufacturer: HAGER
Halogen free: NO
Material: Plastic | Metal
Fixing: Expanding claws
Price:
123,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX e/s Bus port, flush-mounted

Technical data

  • Halogen free
    NO
  • Fixing
    Expanding claws
  • Level of security
    IP20
  • Mounting depth [mm]
    32
  • Bus current consumption (data transmission) [mA]
    10
  • Material
    Plastic Metal
  • Installation
    Flush-mounted
  • Operating temperature range [°C]
    from -5 to 45
  • Operating voltage via DC bus [V]
    21 - 32
  • PKWIU
    27.33.13.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    0
  • Type of fastening
    Mounting with claw and screw
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • Number of connections sensor/actuator
    4

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,057 0,105 4,315 163,080
Width (m) 0,072 0,085 0,295 0,800
Length (m) 0,043 0,070 0,230 1,050
Depth (m) 0,077 0,085 0,395 1,200
