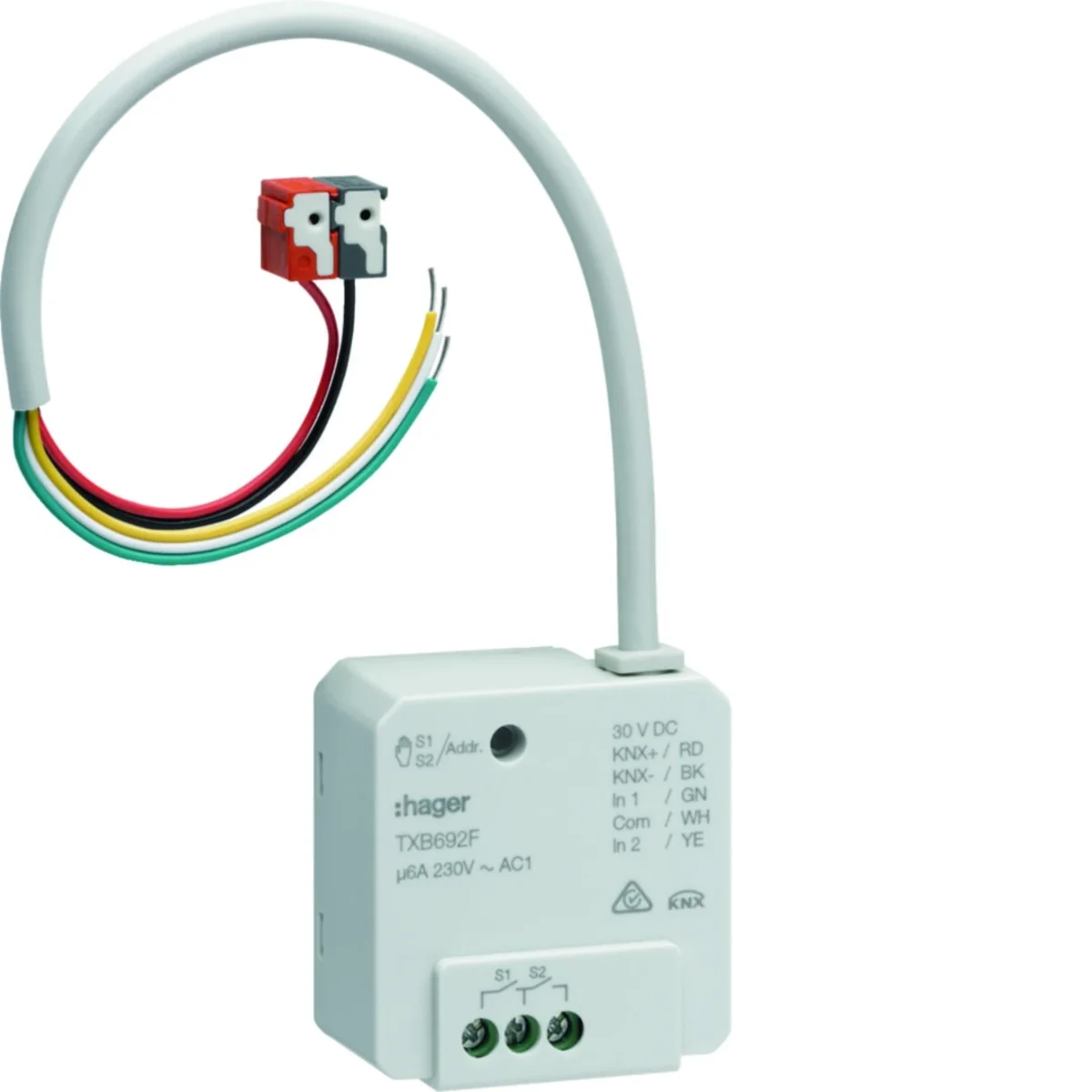

KNX e/s 2-/1-gang switching/blind controller + 2-gang input, p/t, 6 A TXB692F

local index:
AIK088HAGE
Catalog No:
TXB692F
EAN code:
3250616048881
Manufacturer: HAGER
Depth [mm]: 22.5
Color: Gray
Installation: Flush-mounted
Price:
136,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX e/s 2-/1-gang switching/blind controller + 2-gang input, p/t, 6 A

Technical data

  • Depth [mm]
    22.5
  • Installation
    Flush-mounted
  • Family
    KNX EASY
  • power loss [W]
    0.5
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from -5 to 45
  • Rated output voltage [V]
    230
  • DC supply voltage [V]
    thirty
  • Maximum operating current [A]
    6
  • Bus current consumption (data transmission) [mA]
    7
  • Manual control
    Yes
  • storage temperature [°C]
    from -20 to 70
  • Electronic transformers [W]
    500
  • Number of outputs
    2
  • Conductor cross-section (wire) [mm²]
    0.75 - 2.5
  • Color
    Gray
  • Rated current [A]
    6
  • Level of security
    IP20
  • Width [mm]
    44
  • Height [mm]
    44
  • Rated switching voltage [V]
    230
  • Accurate color
    light gray
  • Maximum bulb power [W]
    500
  • Operating voltage via DC bus [V]
    21 - 32
  • Connection type
    With screw terminals
  • Beacon
    Yes
  • Supply voltage type
    DC
  • Conventional transformers [VA]
    500
  • Wire cross-section (cord) [mm²]
    0.75 - 2.5
  • PKWIU
    27.33.11.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Width in number of modular spacings
    0
  • Bus module detachable
    No
  • With LED indication
    Yes
  • Switching current (resistive)
    6 A
  • Max. number of venetian-blind outputs
    1
  • Type of current
    DC
  • Min. depth of built-in installation box
    40 mm
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    Yes
  • Local operation/hand operation
    Yes
  • Number of inputs
    2
  • Max. switching power
    1380 W
  • With switch function
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,048 0,115 5,900 164,600
Width (m) 0,022 0,080 0,310 0,800
Length (m) 0,045 0,055 0,235 1,050
Depth (m) 0,043 0,095 0,365 1,200
