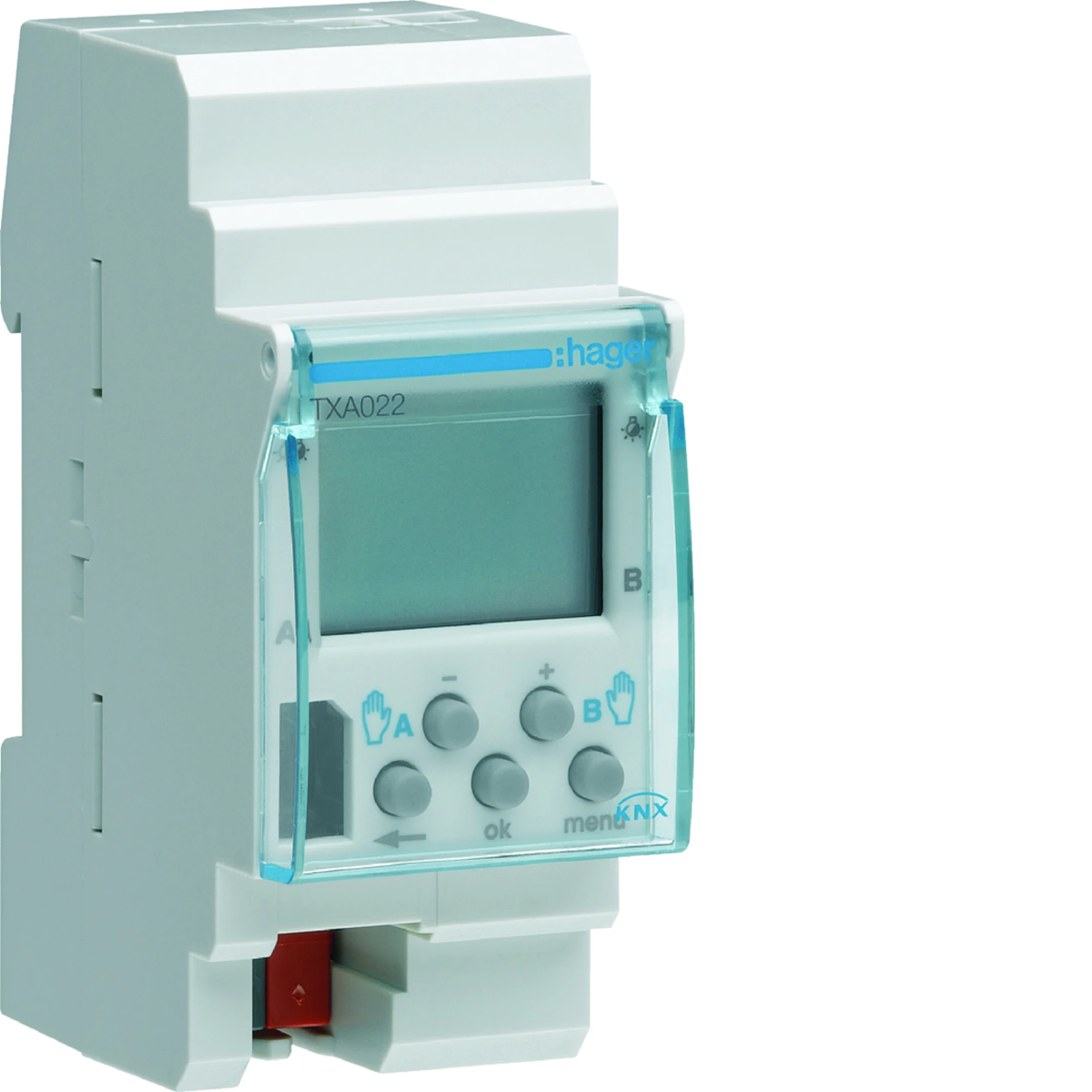

KNX easy Weekly timer TXA022

local index:
AIK031HAGE
Catalog No:
TXA022
EAN code:
3250616040991
Manufacturer: HAGER
Length [mm]: 97
Energy lost in cables [W]: 1
Depth [mm]: 97
Price:
423,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

KNX easy Weekly timer

Technical data

  • Length [mm]
    97
  • Depth [mm]
    97
  • power loss [W]
    0.3
  • Connection type
    With a screw
  • Operating temperature range [°C]
    from 0 to 45
  • DC supply voltage [V]
    thirty
  • Connection type
    With screw terminals
  • Number of outputs
    2
  • Conductor cross-section (wire) [mm²]
    1 - 6
  • Energy lost in cables [W]
    1
  • Level of security
    IP20
  • Width [mm]
    36
  • Height [mm]
    85
  • Number of modules
    2
  • Operating voltage via DC bus [V]
    21 - 32
  • storage temperature [°C]
    from -20 to 70
  • Wire cross-section (cord) [mm²]
    1.5 - 10
  • PKWIU
    26.52.24.0

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • Weekly program
    Yes
  • Astro program
    No
  • Width in number of modular spacings
    2
  • Number of channels
    2
  • Presence simulation
    Yes
  • Radio-controlled (DCF77)
    No
  • With bus connection
    Yes
  • Days off programmable
    Yes
  • Autonomy
    25950 h
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Daily program
    No
  • Annual program
    No
  • Mounting method
    DRA (DIN-rail adapter)
  • External programming
    Yes
  • Number of outputs
    2
  • Summer-/winter switchover
    Yes
  • GPS (global positioning system)
    No
  • With memory card
    No
  • Sub-clocks controllable over bus-system
    Yes
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,100 0,155 7,835 211,040
Width (m) 0,035 0,080 0,315 0,800
Length (m) 0,060 0,060 0,235 1,050
Depth (m) 0,085 0,095 0,360 1,200
