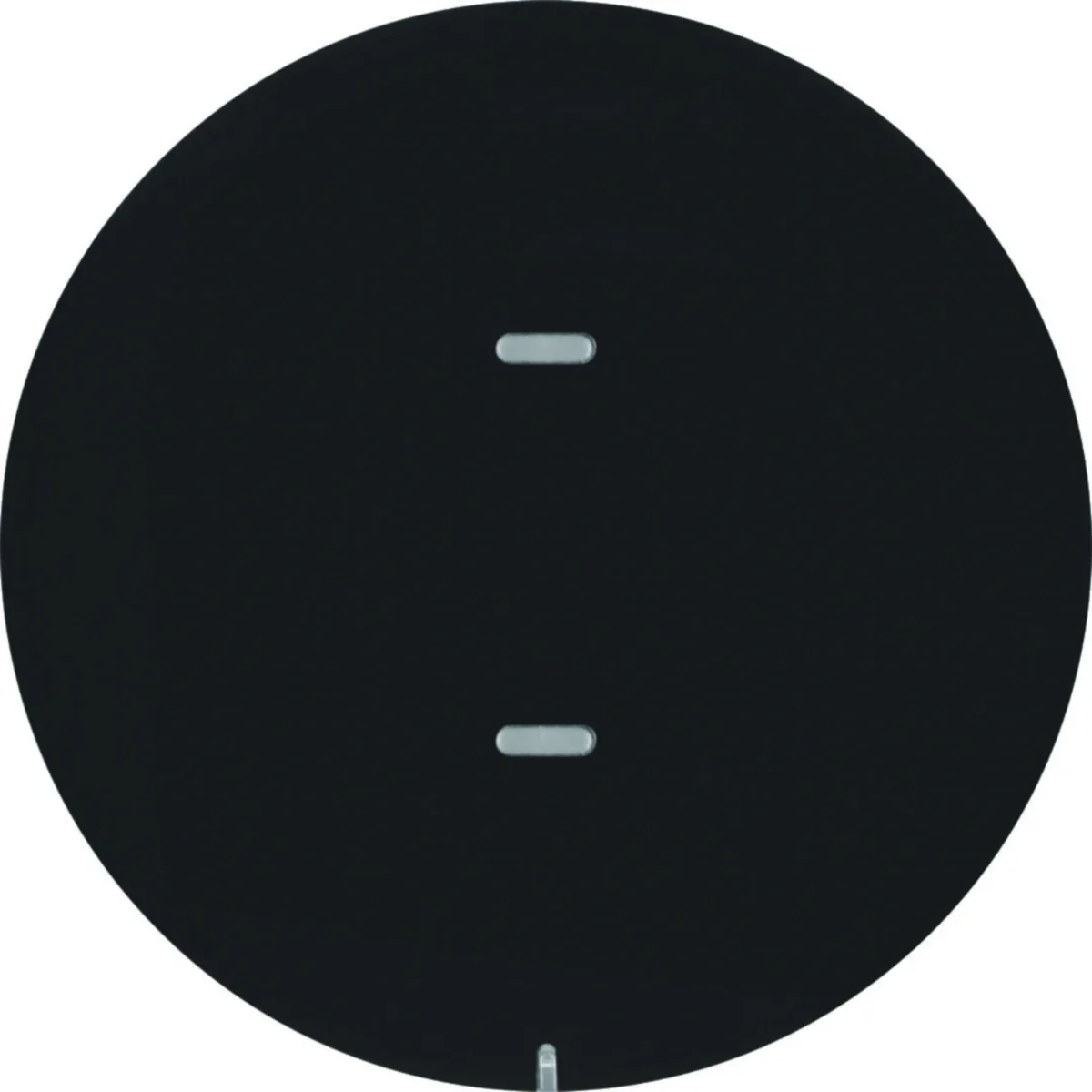

KNX EASY R.x/1930 Push-button, 1-gang, glossy black 80161865

local index:
AIK269HAGE
Catalog No:
80161865
EAN code:
3250617153522
Manufacturer: HAGER
Halogen free: NO
Number of buttons: 1
Color: Black
Price:
89,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single button of the KNX easy series:

  • with a room temperature sensor
  • possibility to configure user interfaces to one- or two-level operation
  • function of sending 1 and 2 byte values for dimming, brightness and temperature
  • with white LED for operating status
  • connection: flush-mounted bus port
  • safety: alarm telegram after removal from bus port, 1 bit, 1 byte
  • only to be used in conjunction with bus port 8004 00 01!

Series characteristics:

KNX easy from KNX is a new building automation system providing an easy-to-use application in private residential buildings. KNX easy is not only an innovative, fast and inexpensive solution - it is above all a very simple tool. New hardware or costly ETS software are unnecessary. With KNX easy, all you need is the easy server, a mobile device (tablet) and the Easy Tool app. Now you can set up simple and effective building control. KNX easy is a speed of operation that reduces the time you need to spend on programming. The advantages of using an intelligent building control system make its purchase a profitable investment even for an average household. What's more, its modular nature allows you to expand at any time, but you can plan it for your customers in advance and help them reduce costs.

Technical data

  • Halogen free
    NO
  • Color
    Black
  • Installation
    Flush-mounted
  • Surface
    Gloss
  • Level of security
    IP20
  • Surface finish
    Natural
  • PKWIU
    27.12.31.0
  • Number of buttons
    1
  • Material
    Thermoplastic
  • Power consumption [W]
    0.15
  • Family
    KNX EASY
  • Operating temperature range [°C]
    from -5 to 45
  • Bus current consumption (data transmission) [mA]
    20

Other technical data

  • Bus system KNX
    Yes
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    No
  • With anti-theft/dismantling protection
    No
  • Number of actuation points
    2
  • With LED indication
    Yes
  • With display
    No
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • With room temperature controller
    No
  • Degree of protection (IP)
    IP20
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    None
  • Mounting method
    Flush-mounted
  • With bus connection
    No
  • Number of buttons
    1
  • With label area
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Black
  • Transparent
    No
  • With IR sensor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 32 pcs. 1024 pcs.
Weight (kg) 0,023 0,096 5,165 146,960
Width (m) 0,058 0,080 0,305 0,800
Length (m) 0,025 0,050 0,335 1,155
Depth (m) 0,058 0,155 0,400 1,200
